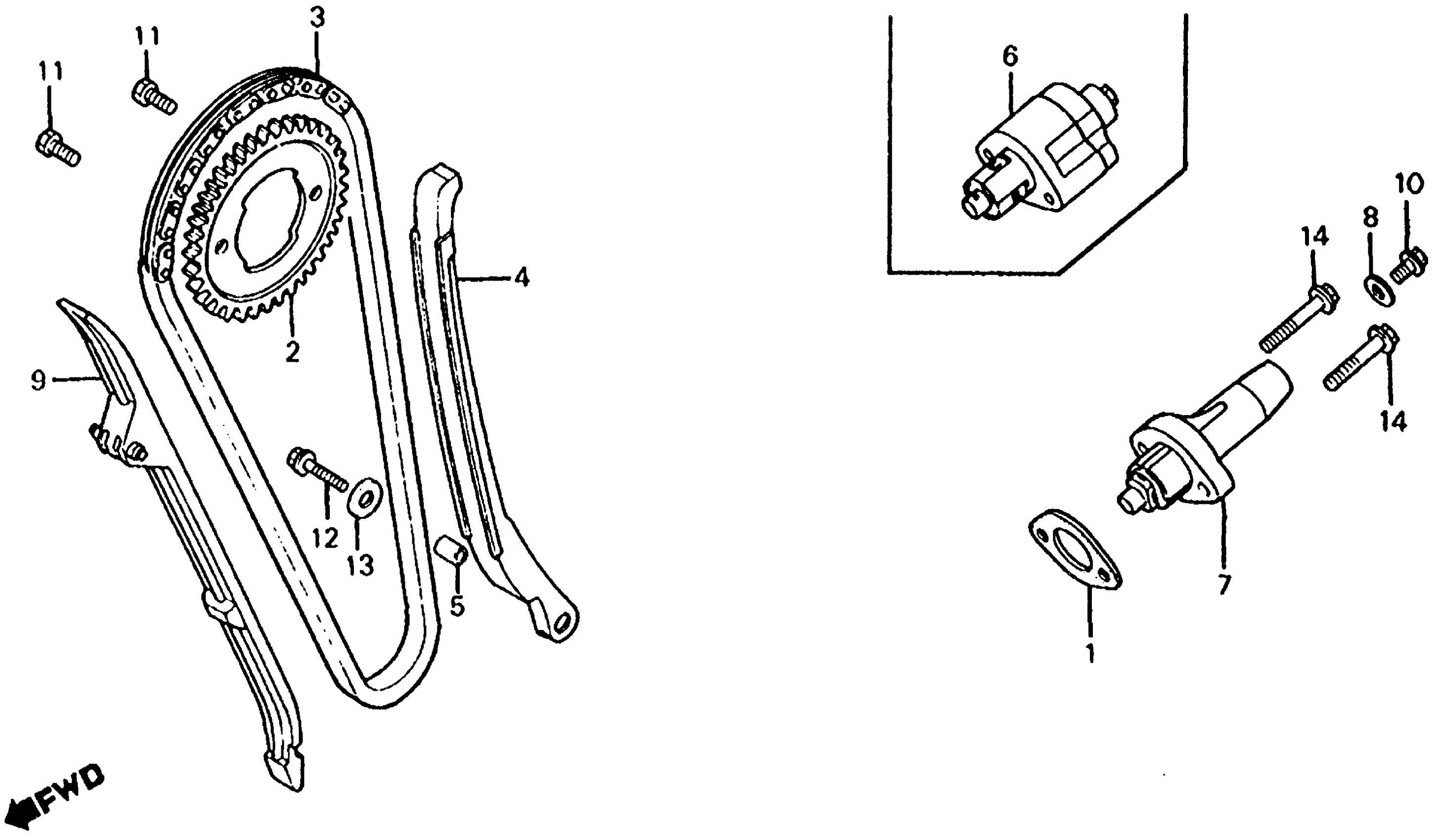

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 CAM CHAIN + TENSIONER Diagram

GASKET, TENSIONER HOLE This part replaces 12194-HA0-000.

12194-HC5-740

$2.48

GASKET, TENSIONER HOLE This part replaces 12194-HA0-306.

12194-HC5-740

$2.48

GASKET, TENSIONER HOLE

12194-HC5-740

$2.48

SPROCKET, CAM (38T)

14321-HA0-010

Unavailable

CHAIN, CAM (75-010M-114)

14401-HA7-671

Unavailable

TENSIONER, CAM CHAIN

14511-HA5-000

Unavailable

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

LIFTER ASSY., TENSIONER

14520-HA7-671

Unavailable

GASKET, TENSIONER This part replaces 14525-HA7-670.

14525-HA7-690

Unavailable

GASKET, TENSIONER

14525-HA7-690

Unavailable

GUIDE, CAM CHAIN

14620-HA5-000

Unavailable

BOLT, FLANGE (6X13)

90002-HA7-670

$4.24

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

BOLT, FLANGE (6X25) | Use up to Engine SN 5112009 This part replaces 95800-06025-00.

95801-06025-00

$1.49

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

WASHER, DRUM STOPPER

90417-360-000

$1.74

BOLT, FLANGE (6X45) | Use up to Engine SN 5112009 This part replaces 96000-06045-00.

96001-06045-00

$1.95

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

BOLT, FLANGE (6X45) | Use up to Engine SN 5112009

96001-06045-00

$1.95
