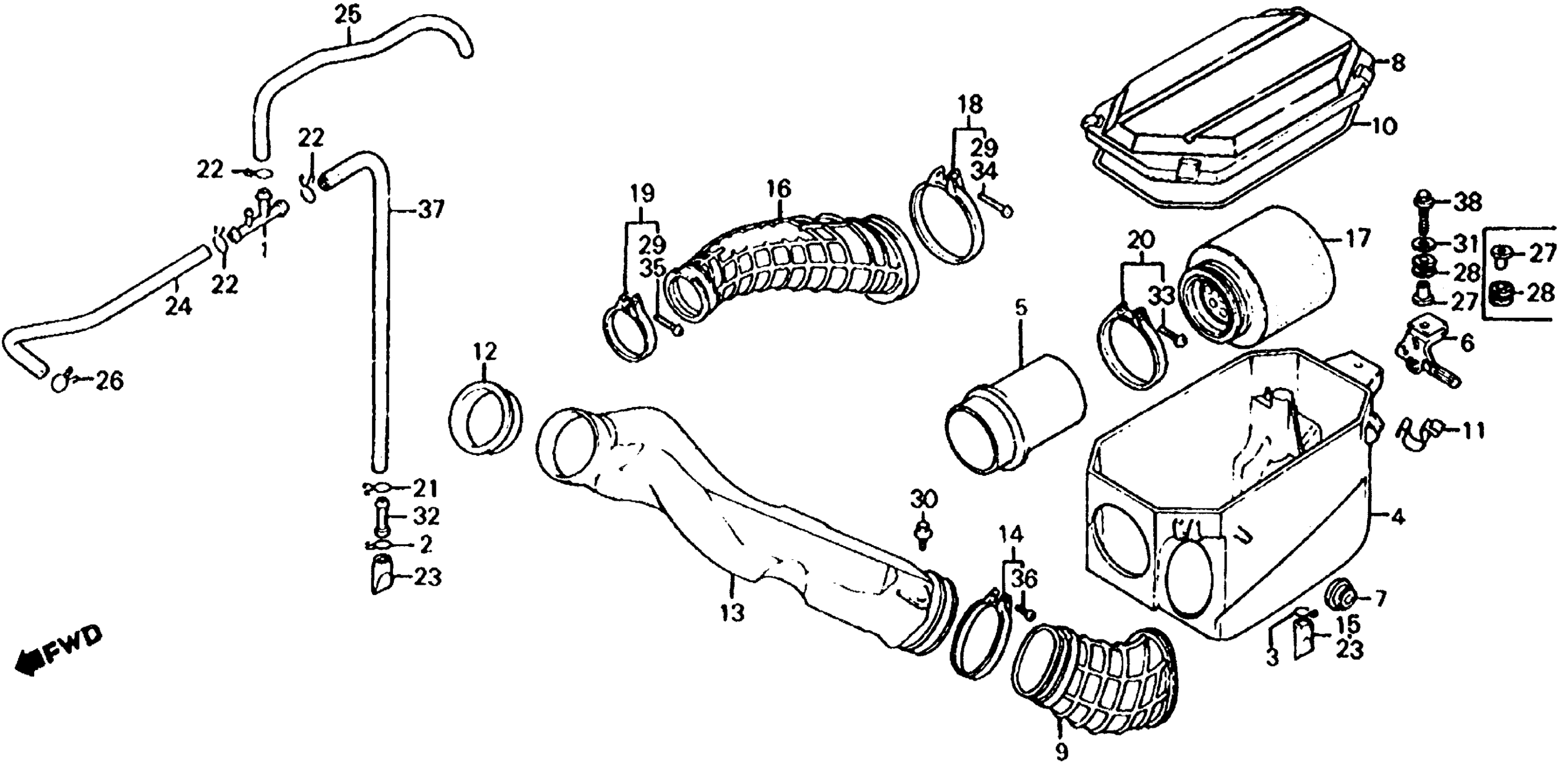

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 AIR CLEANER Diagram

#

Description
Price

1

JOINT, BREATHER (NOT AVAILABLE)

15772-HA5-000

Unavailable

2

CLIP, BREATHER TUBE

15772-292-010

$2.92

3

CLIP, BREATHER TUBE

15772-500-010

$3.90

3

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-HA5-670

Unavailable

5

BODY, AIR CLEANER (NOT AVAILABLE)

17211-HA5-670

Unavailable

6

NUT, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17212-HA5-670

Unavailable

7

RUBBER, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17216-HA5-000

Unavailable

8

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17217-HA5-000

Unavailable

9

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17218-HA5-000

Unavailable

10

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

10

SEAL, AIR CLEANER COVER This part replaces 17219-HA5-000.

17219-HA2-405

$5.96

11

SPRING, AIR CLEANER HOUSING LID

17223-HA5-670

Unavailable

12

TUBE A, AIR CLEANER IN. (NOT AVAILABLE)

17224-HA5-000

Unavailable

13

PIPE, AIR CLEANER IN. (NOT AVAILABLE)

17225-HA5-670

Unavailable

14

BAND, AIR CLEANER IN. TUBE (NOT AVAILABLE)

17226-HA5-000

Unavailable

15

TUBE, VINYL (11X15X60)

17227-HA5-670

Unavailable

16

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-HA5-000

Unavailable

17

ELEMENT, AIR CLEANER

17254-HA5-670

Unavailable

18

BAND, CONNECTING TUBE (NOT AVAILABLE) This part replaces 17257-HA5-670.

17256-HA6-680

Unavailable

19

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 90652-GHB-750.

95018-64250

$14.56

19

BAND, AIR CLEANER CONNECTING TUBE (64)

95018-64250

$14.56

19

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17255-MN1-670.

95018-64250

$14.56

19

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17256-HA5-670.

95018-64250

$14.56

20

BAND, AIR CLEANER

17257-HB5-000

$14.02

20

BAND, AIR CLEANER This part replaces 17257-360-700.

17257-HB5-000

$14.02

21

CLIP, BREATHER TUBE

17316-HA0-000

$4.74

22

CLIP, BREATHER TUBE

17316-611-000

$9.23

23

TUBE, DRAIN

17358-170-000

$3.74

24

TUBE B, BREATHER (NOT AVAILABLE)

17561-HA5-000

Unavailable

25

TUBE, BREATHER (UPPER) (NOT AVAILABLE)

17562-HA5-000

Unavailable

26

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

27

COLLAR, RADIATOR SETTING This part replaces 19052-KA3-730.

19052-KA3-710

$6.91

28

RUBBER, FR. FENDER SETTING

61103-430-000

$3.67

29

SCREW, PAN (4X20) (NOT AVAILABLE)

90106-HA0-680

Unavailable

30

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

31

WASHER (6.5X25X1.5)

90404-680-000

$4.07

32

JOINT, TUBE

91463-393-780

$1.80

33

SCREW, PAN (4X20)

93500-04020-0A

$1.49

36

SCREW, PAN (5X20)

93500-05020-0H

$1.49

37

TUBE, BREATHER (NOT AVAILABLE)

17563-HA5-670

Unavailable

38

BOLT, FLANGE (6X25)

96500-06025-08

Unavailable
