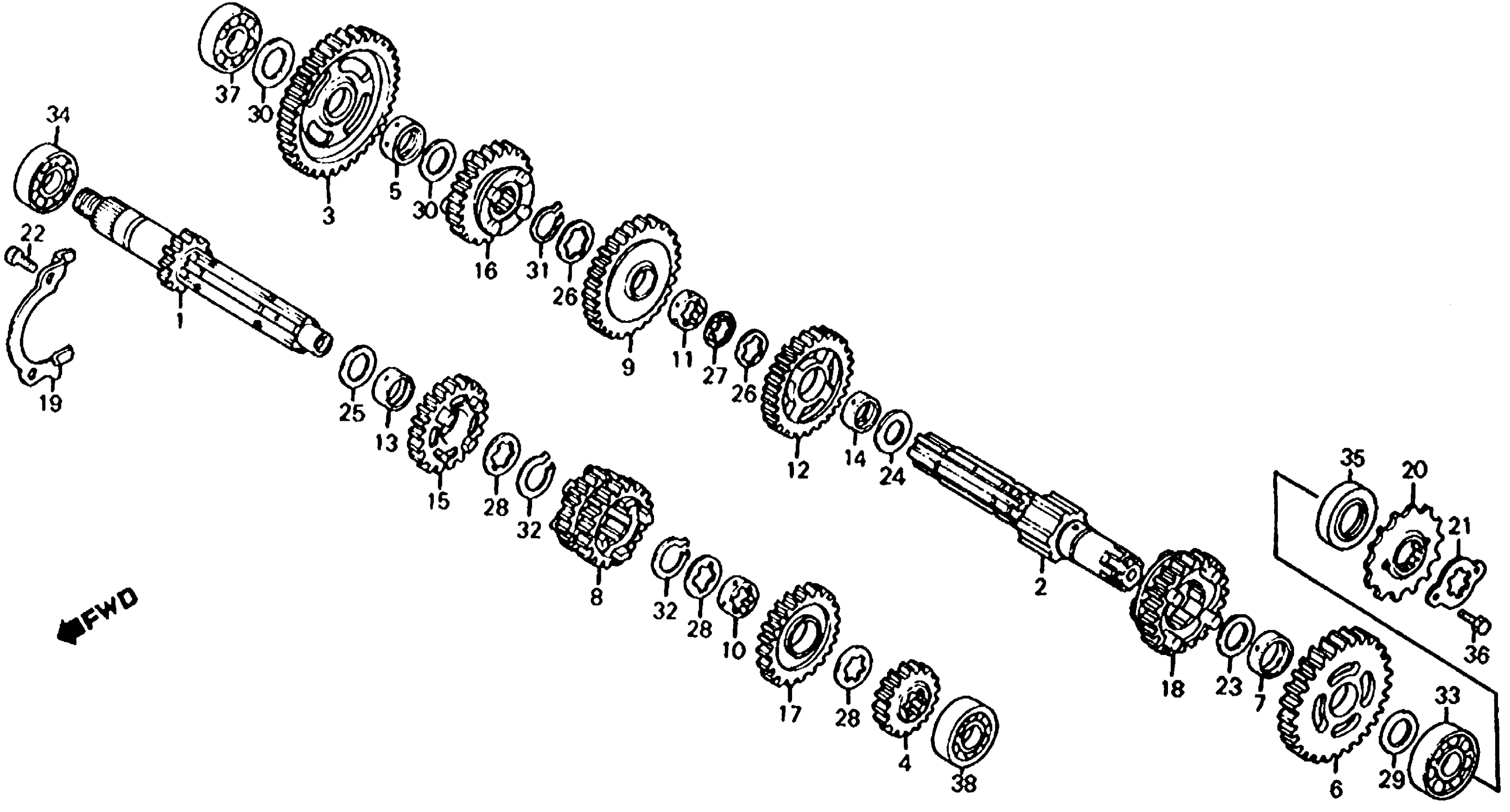

Honda ATC350XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-FM000032 TO JH3TE080-FM025531 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-HA5-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-HA5-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (44T) This part replaces 23411-HA5-000.

23411-HA5-670

Unavailable

3

GEAR, COUNTERSHAFT LOW (44T)

23411-HA5-670

Unavailable

4

GEAR, MAINSHAFT SECOND (20T) (NOT AVAILABLE)

23421-HA5-000

Unavailable

5

BUSH, COUNTERSHAFT LOW (20MM) This part replaces 23422-HA5-000.

23422-HA5-670

Unavailable

5

BUSH, COUNTERSHAFT LOW (20MM)

23422-HA5-670

Unavailable

6

GEAR, COUNTERSHAFT SECOND (41T) (NOT AVAILABLE) This part replaces 23431-HA5-000.

23431-HA5-670

Unavailable

6

GEAR, COUNTERSHAFT SECOND (41T) (NOT AVAILABLE)

23431-HA5-670

Unavailable

7

BUSH, COUNTERSHAFT SECOND (NOT AVAILABLE) This part replaces 23432-HA5-000.

23432-HA5-670

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (23T/26T) This part replaces 23441-HA5-000.

23441-HA5-670

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (23T/26T)

23441-HA5-670

Unavailable

9

GEAR, COUNTERSHAFT THIRD (37T) (NOT AVAILABLE) This part replaces 23451-HA5-000.

23451-HA5-670

Unavailable

10

BUSH, SPLINE MAINSHAFT SIXTH (NOT AVAILABLE) This part replaces 23452-HA5-000.

23452-HA5-670

Unavailable

10

BUSH, SPLINE MAINSHAFT SIXTH (NOT AVAILABLE)

23452-HA5-670

Unavailable

11

BUSH, SPLINE COUNTERSHAFT THIRD (NOT AVAILABLE) This part replaces 23453-HA5-000.

23453-HA5-670

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (34T) This part replaces 23471-HA5-000.

23471-HA5-670

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (34T)

23471-HA5-670

Unavailable

13

BUSH, MAINSHAFT FIFTH (NOT AVAILABLE) This part replaces 23472-HA5-000.

23472-HA5-670

Unavailable

14

BUSH, COUNTERSHAFT FOURTH (NOT AVAILABLE) This part replaces 23473-HA5-000.

23473-HA5-670

Unavailable

15

GEAR, MAINSHAFT FIFTH (29T) This part replaces 23481-HA5-000.

23481-HA5-670

Unavailable

15

GEAR, MAINSHAFT FIFTH (29T)

23481-HA5-670

Unavailable

16

GEAR, COUNTERSHAFT FIFTH (32T) This part replaces 23491-HA5-000.

23491-HA5-670

Unavailable

16

GEAR, COUNTERSHAFT FIFTH (32T)

23491-HA5-670

Unavailable

17

GEAR, MAINSHAFT SIXTH (31T) (NOT AVAILABLE) This part replaces 23501-HA5-000.

23501-HA5-671

Unavailable

17

GEAR, MAINSHAFT SIXTH (31T) (NOT AVAILABLE) This part replaces 23501-HA5-670.

23501-HA5-671

Unavailable

17

GEAR, MAINSHAFT SIXTH (31T) (NOT AVAILABLE)

23501-HA5-671

Unavailable

18

GEAR, COUNTERSHAFT SIXTH (29T) (NOT AVAILABLE) This part replaces 23511-HA5-000.

23511-HA5-670

Unavailable

18

GEAR, COUNTERSHAFT SIXTH (29T) (NOT AVAILABLE)

23511-HA5-670

Unavailable

19

PLATE, BEARING SETTING

23521-HA0-000

$14.85

20

SPROCKET, DRIVE (13T)

23801-HA5-000

Unavailable

21

PLATE, FIXING This part replaces 23811-430-000.

23811-HA5-670

$4.96

21

PLATE, FIXING

23811-HA5-670

$4.96

22

BOLT, SOCKET (6X16) This part replaces 90001-KF0-000.

96600-06016-00

$1.66

22

BOLT, SOCKET (6X16)

96600-06016-00

$1.66

23

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

24

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

25

WASHER, THRUST (22MM)

90456-323-000

Unavailable

26

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

27

WASHER, LOCK (25MM)

90462-323-000

$3.77

28

WASHER, SPLINE (22MM)

90464-KE8-000

$4.20

29

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

29

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

30

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

30

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

31

CIRCLIP (25MM)

90601-107-000

$3.74

32

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

33

BEARING, SPECIAL (22) (KOYO)

91002-HA5-003

Unavailable

34

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-008.

91005-KS4-003

$40.44

34

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$40.44

35

OIL SEAL (22X35X8)

91205-HA5-000

Unavailable

36

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

36

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

37

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

38

BEARING, RADIAL BALL (6203)

96140-62030-00

$18.59
