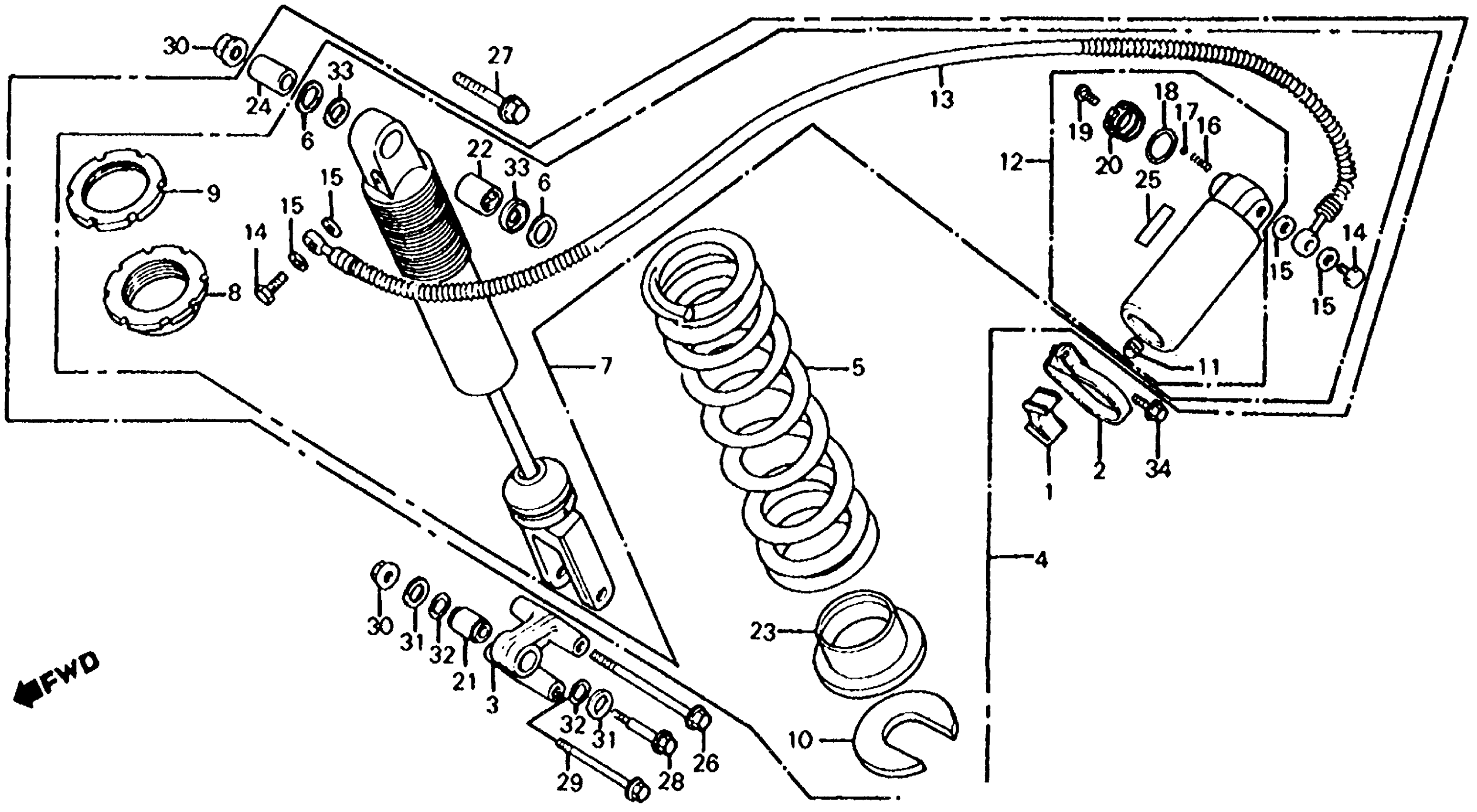

Honda ATC350XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-FM000032 TO JH3TE080-FM025531 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)

50250-HA5-000

Unavailable

2

BAND, SUB-TANK (NOT AVAILABLE)

50252-HA5-000

Unavailable

3

BRACKET, RR. SHOCK ABSORBER (NOT AVAILABLE)

52105-HA5-000

Unavailable

4

SHOCK ABSORBER ASSY., RR.

52400-HA5-003

Unavailable

5

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-HA5-003

Unavailable

6

CAP, DUST SEAL

52406-KB7-003

$6.48

7

DAMPER, RR. (NOT AVAILABLE)

52410-HA5-003

Unavailable

8

ADJUSTER, SPRING (NOT AVAILABLE)

52422-HA5-003

Unavailable

9

NUT, ADJUSTER (NOT AVAILABLE)

52423-KA4-003

Unavailable

10

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-HA5-003

Unavailable

11

CAP, AIR VALVE

52425-381-771

$5.05

12

SUB-TANK

52430-HA5-003

Unavailable

13

HOSE, JOINT (NOT AVAILABLE)

52440-HA5-003

Unavailable

14

BOLT, OIL (10X22)

52441-KA3-711

Unavailable

15

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

16

SPRING, CLICK (NOT AVAILABLE)

52445-KA4-731

Unavailable

17

BALL

52446-KF0-003

Unavailable

18

O-RING (2X23.5)

52447-KF0-003

Unavailable

19

SCREW

52448-KF0-003

$2.90

20

PLATE, ADJUSTING (NOT AVAILABLE)

52449-KA4-731

Unavailable

21

BUSH, SHOCK ABSORBER (LOWER) (NOT AVAILABLE)

52451-HA5-000

Unavailable

22

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

23

SEAT C, SPRING (SHOWA)

52459-KA4-831

Unavailable

24

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

25

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-KF0-003

Unavailable

26

BOLT, FLANGE (10X124)

90151-KK4-000

Unavailable

27

BOLT, FLANGE (10X55)

90153-KF0-000

$9.92

27

BOLT, FLANGE (10X55) This part replaces 90154-HA5-000.

90153-KF0-000

$9.92

28

BOLT, SPECIAL FLANGE (10X58)

90155-965-003

Unavailable

29

BOLT, FLANGE (10X95)

90154-KW7-870

Unavailable

29

BOLT, FLANGE (10X95) This part replaces 90187-MG7-003.

90154-KW7-870

Unavailable

30

NUT, U (10MM)

90304-GE8-003

$3.67

31

WASHER, THRUST (16MM)

90453-235-000

$1.83

32

O-RING (19.5X1.5)

91301-965-003

Unavailable

32

O-RING (19.5X1.5) This part replaces 91301-965-004.

91301-965-003

Unavailable

33

DUST SEAL B

91351-KB7-003

$3.49

34

BOLT, FLANGE (6X18)

96300-06018-00

$1.49

34

BOLT, FLANGE (6X18) This part replaces 96500-06018-00.

96300-06018-00

$1.49
