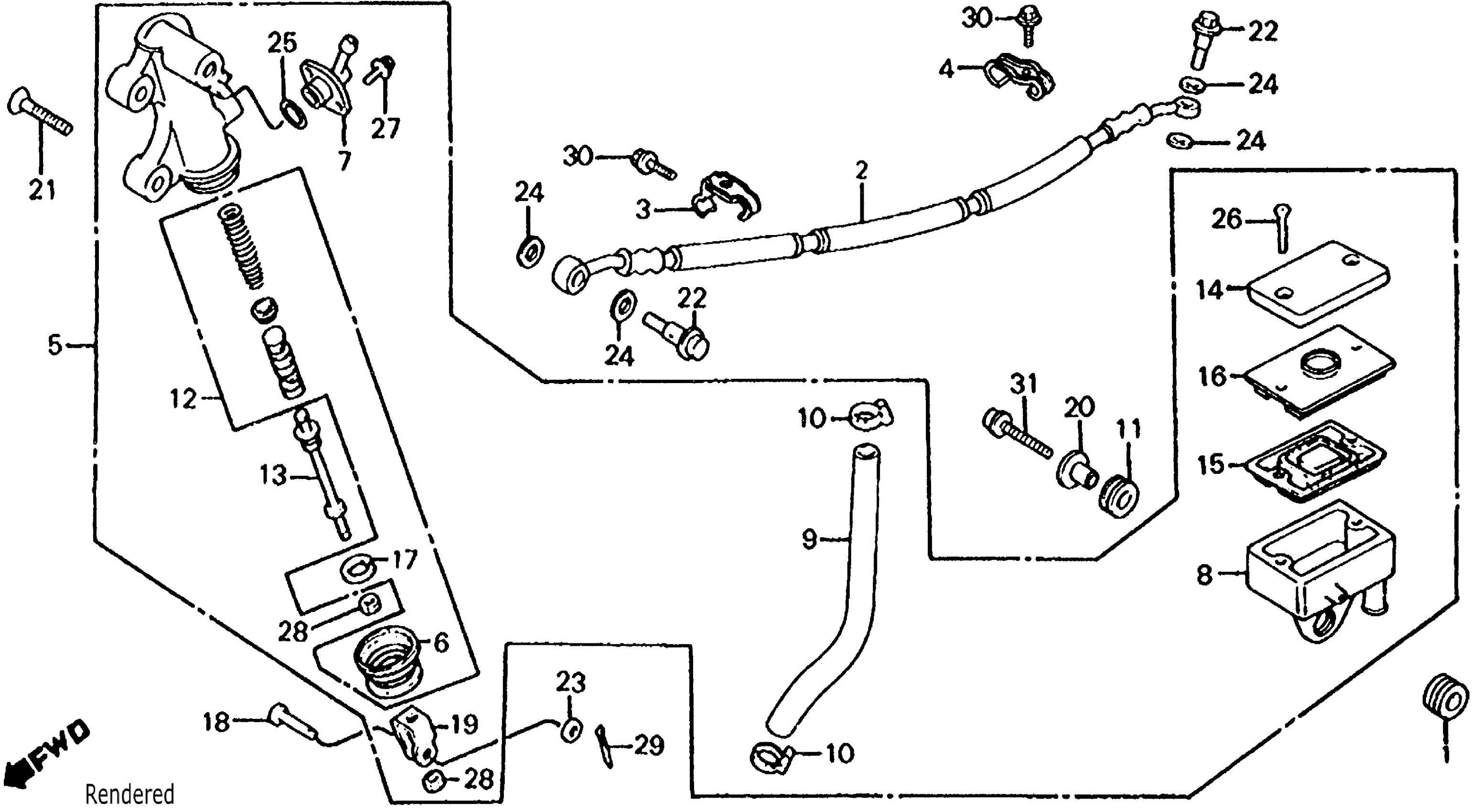

Honda ATC350XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-FM000032 TO JH3TE080-FM025531 REAR BRAKE MASTER CYL. Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33715-965-000

$5.10

2

HOSE ASSY., RR. BRAKE (NOT AVAILABLE)

43310-HA5-003

Unavailable

3

CLAMP, BRAKE HOSE (NOT AVAILABLE)

43311-HA5-000

Unavailable

5

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE) This part replaces 43500-HA5-006.

43500-HA5-016

Unavailable

5

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE)

43500-HA5-016

Unavailable

6

BOOT, MASTER CYLINDER

43504-371-013

$9.54

7

CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)

43505-463-006

Unavailable

8

CUP, OIL

43511-HA2-016

$37.16

9

HOSE, MASTER CYLINDER (NOT AVAILABLE) This part replaces 43512-HA5-006.

43512-HA5-016

Unavailable

9

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-HA5-016

Unavailable

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

$17.93

11

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

12

MASTER CYLINDER SET

43520-HA5-305

Unavailable

13

ROD, PUSH (NOT AVAILABLE)

43530-965-006

Unavailable

14

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

15

DIAPHRAGM

45520-MG7-006

$10.61

16

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

17

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

18

PIN, BRAKE ROD

46503-371-000

Unavailable

19

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

20

COLLAR (6.3X13)

50324-425-010

$5.05

21

BOLT, SPROCKET FIXING

90128-KL4-000

$9.21

22

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

22

BOLT, OIL (10X22)

90145-KM3-751

$11.02

22

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

23

WASHER (7X12)

90501-310-000

$1.74

24

WASHER, OIL BOLT

90545-300-000

$3.99

25

O-RING (14.8X2.4)

91212-422-006

$2.56

26

SCREW, FLAT (4X30)

93600-04030-1A

$1.49

27

SCREW-WASHER (4X12)

93893-04012-08

$1.49

27

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

28

NUT, HEX. (8MM)

94002-08000-0S

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

30

BOLT, FLANGE (6X10) This part replaces 96500-06010-00.

96300-06010-00

$1.49

31

BOLT, FLANGE (6X25)

96500-06025-08

Unavailable
