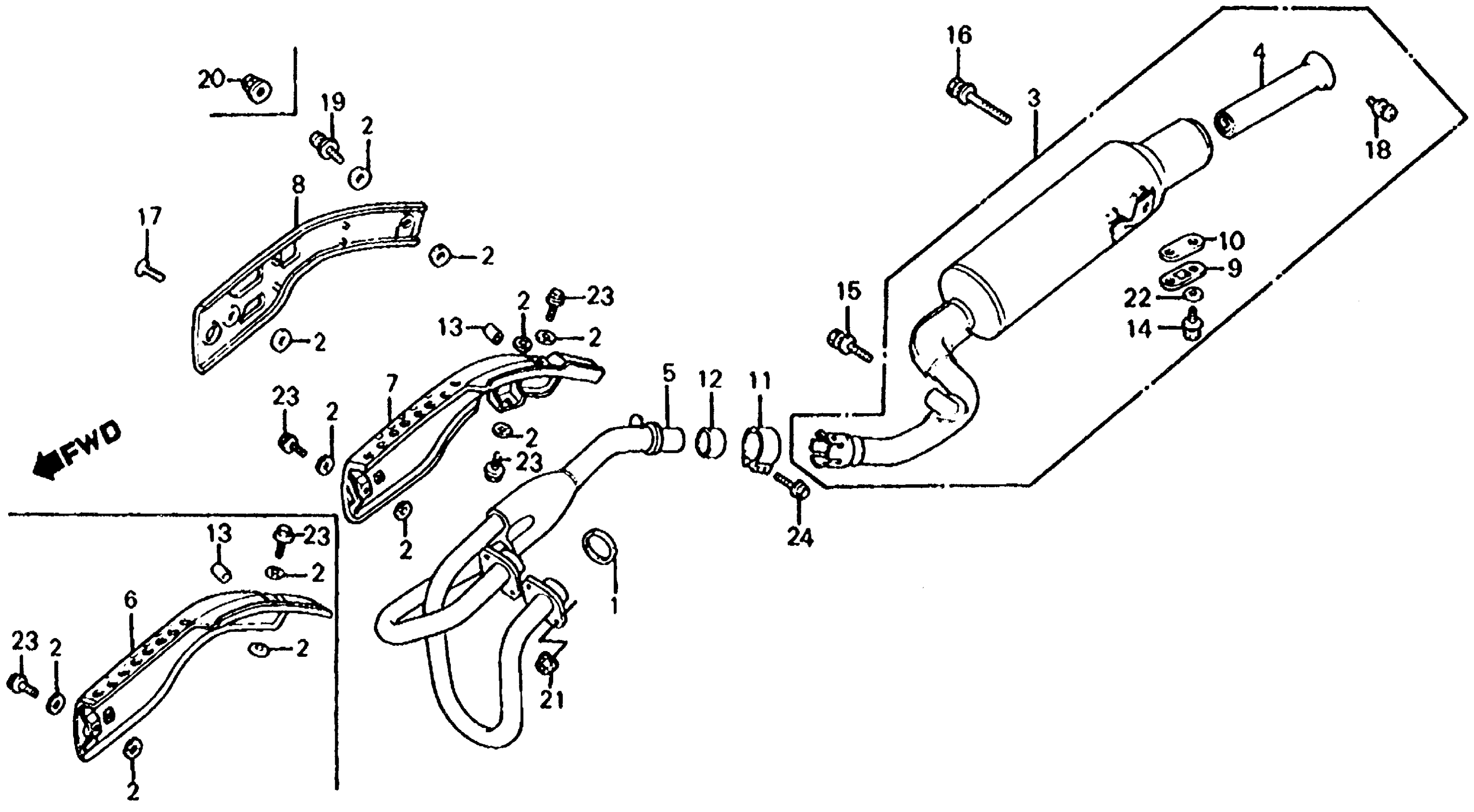

Honda ATC350XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-FM000032 TO JH3TE080-FM025531 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN5-650

$3.77

1

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

2

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

2

GASKET, PROTECTOR

18292-MM9-740

$3.03

2

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

3

MUFFLER (NOT AVAILABLE) This part replaces 18310-HA5-003.

18310-HA5-670

Unavailable

4

PIPE, TAIL

18311-MA0-010

$67.11

5

PIPE, EX. (NOT AVAILABLE) This part replaces 18320-HA5-000.

18320-HA5-670

Unavailable

5

PIPE, EX. (NOT AVAILABLE)

18320-HA5-670

Unavailable

6

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18321-HA5-000

Unavailable

8

COVER, PROTECTOR (NOT AVAILABLE)

18322-HA5-000

Unavailable

9

LID, MUFFLER

18373-429-010

$9.15

10

GASKET, MUFFLER LID

18374-MN1-880

$4.21

10

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

11

BAND, FR. EX. PIPE

18373-MR5-000

$26.83

11

BAND, FR. EX. PIPE This part replaces 18377-MB0-950.

18373-MR5-000

$26.83

12

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

12

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

12

GASKET, MUFFLER

18392-MK4-000

$13.66

13

COLLAR, TOOL BAG PLATE

83503-KA2-680

Unavailable

14

BOLT-WASHER (6X12)

93401-06012-07

$1.62

14

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

14

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

15

BOLT-WASHER (8X16) This part replaces 93413-08016-00.

93403-08016-00

Unavailable

15

BOLT-WASHER (8X16) This part replaces 93483-08016-00.

93403-08016-00

Unavailable

16

BOLT-WASHER (8X35) (NOT AVAILABLE)

93483-08035-00

Unavailable

17

SCREW, OVAL (6X14) This part replaces 93700-06014-0G.

93700-06014-4B

Unavailable

17

SCREW, OVAL (6X14)

93700-06014-4B

Unavailable

18

SCREW-WASHER (6X12)

93891-06012-07

$1.49

20

NUT, CAP (6MM)

94021-06070-0S

$1.62

21

NUT, FLANGE (8MM)

94050-08000

$1.49

22

WASHER, PLAIN (6MM)

94101-06700

$1.49

23

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

23

BOLT, FLANGE (6X12) This part replaces 96400-06012-00.

96300-06012-00

$1.49

23

BOLT, FLANGE (6X12) This part replaces 96400-06012-07.

96300-06012-00

$1.49

24

BOLT, FLANGE (8X32)

96300-08032-00

$1.62

24

BOLT, FLANGE (8X32) This part replaces 96500-08032-00.

96300-08032-00

$1.62
