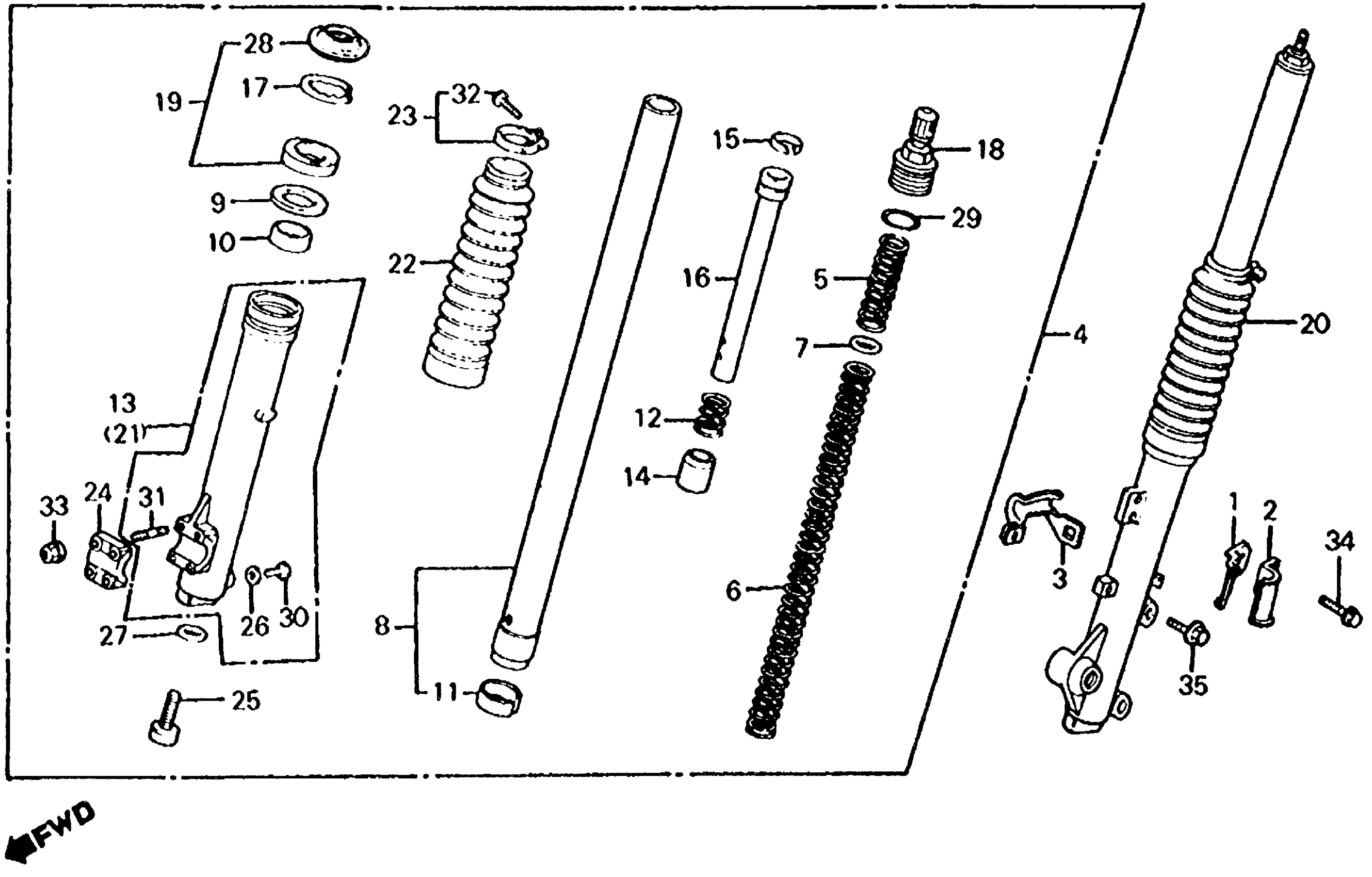

Honda ATC350XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-FM000032 TO JH3TE080-FM025531 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE (NOT AVAILABLE)

45461-HA5-000

Unavailable

2

CLAMP B, FR. BRAKE (NOT AVAILABLE)

45462-HA5-000

Unavailable

3

CLAMP, FR. BRAKE HOSE (NOT AVAILABLE)

45463-HA5-000

Unavailable

4

FORK ASSY., R. FR. (NOT AVAILABLE) This part replaces 51400-HA5-013.

51400-HA5-671

Unavailable

4

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-HA5-671

Unavailable

5

SPRING, FR. FORK (A) (NOT AVAILABLE)

51401-HA5-003

Unavailable

6

SPRING, FR. FORK (B) (NOT AVAILABLE)

51402-HA5-003

Unavailable

7

PLATE, SPRING JOINT

51403-430-000

Unavailable

8

PIPE, FR. FORK (NOT AVAILABLE)

51410-HA5-003

Unavailable

9

RING, BACK-UP

51412-422-003

$7.49

9

RING, BACK-UP This part replaces 51412-422-405.

51412-422-003

$7.49

9

RING, BACK-UP This part replaces 51412-428-305.

51412-422-003

$7.49

9

RING, BACK-UP This part replaces 51412-428-315.

51412-422-003

$7.49

10

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$19.63

11

BUSH, SLIDER

51415-MA6-003

Unavailable

12

SPRING, REBOUND (NOT AVAILABLE)

51416-461-003

$5.80

13

CASE, R. (LOWER) This part replaces 51420-HA5-003.

51420-HA5-671

Unavailable

13

CASE, R. (LOWER)

51420-HA5-671

Unavailable

14

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MA6-003

Unavailable

15

RING, PISTON

51437-461-003

$9.59

16

PIPE, SEAT (NOT AVAILABLE)

51440-HA5-003

Unavailable

17

CIRCLIP (INNER) (51.5MM)

51447-469-003

$4.17

18

BOLT ASSY., FR. FORK (NOT AVAILABLE) This part replaces 51450-964-671.

51450-KA2-003

Unavailable

19

SEAL SET, FR. FORK

51490-KBH-305

$27.17

19

SEAL SET, FR. FORK This part replaces 51490-MA6-305.

51490-KBH-305

$27.17

19

SEAL SET, FR. FORK This part replaces 51490-MA6-315.

51490-KBH-305

$27.17

19

SEAL SET, FR. FORK This part replaces 51490-434-305.

51490-KBH-305

$27.17

20

FORK ASSY., L. FR.

51500-HA5-013

Unavailable

21

CASE, L. (LOWER)

51520-HA5-003

Unavailable

22

BOOT, FR. FORK

51611-HA5-013

$57.68

23

BAND, FR. FORK BOOT

51612-434-000

$12.06

24

HOLDER, AXLE

51634-MA0-003

$37.46

25

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

27

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

28

DUST SEAL (35MM)

91254-434-003

$13.96

29

O-RING (25.7X2.8)

91356-428-003

$3.60

30

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

30

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

30

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

31

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

31

BOLT, STUD (6X25)

92900-06025-0E

$1.49

32

SCREW, PAN (3X20)

93500-03020-0A

$1.49

33

NUT, FLANGE (6MM)

94050-06000

$1.49

34

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

34

BOLT, FLANGE (6X16) This part replaces 96500-06016-00.

96300-06016-00

$1.49

35

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

35

BOLT, FLANGE (6X20) This part replaces 96500-06020-00.

96300-06020-00

$1.49
