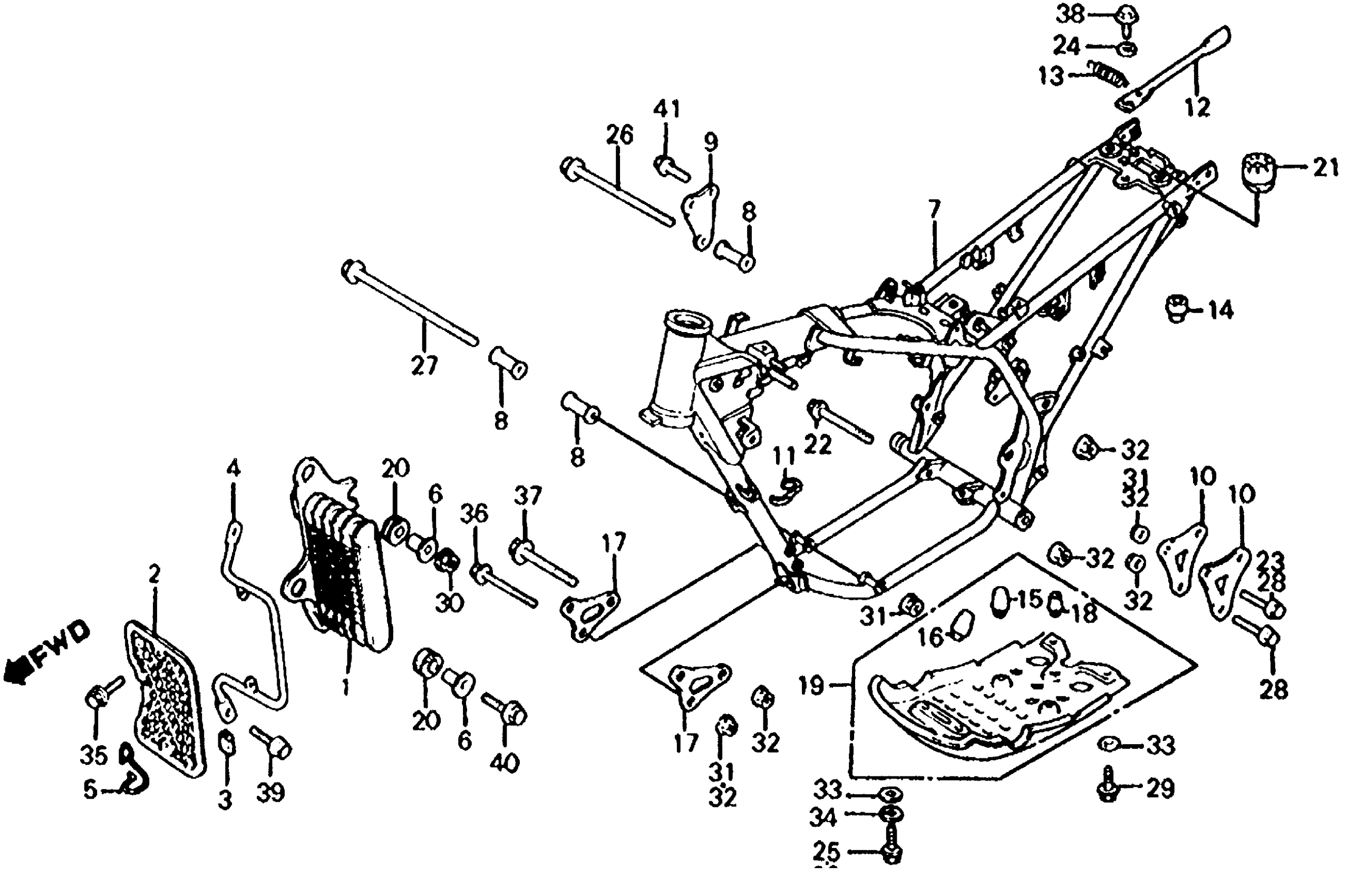

Honda ATC350XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-FM000032 TO JH3TE080-FM025531 FRAME Diagram

#

Description
Price

1

COOLER, OIL (NOT AVAILABLE)

15600-HA5-003

Unavailable

1

COOLER, OIL (NOT AVAILABLE)

15600-HA5-004

Unavailable

2

GRILLE, OIL COOLER (NOT AVAILABLE)

19032-HA5-000

Unavailable

4

GUARD, OIL COOLER (NOT AVAILABLE)

19045-HA5-000

Unavailable

6

COLLAR, METER SETTING

37206-471-000

$6.35

7

FRAME *R109* (PASSION RED) (NOT AVAILABLE)

50100-HA5-305ZA

Unavailable

8

COLLAR, ENGINE HANGER

50130-HA5-000

Unavailable

9

PLATE, RR. ENGINE HANGER (UPPER) *R109* (PASSION RED) (NOT AVAILABLE)

50139-HA5-000ZA

Unavailable

10

PLATE, ENGINE HANGER (UPPER) *R109* (PASSION RED) (NOT AVAILABLE)

50142-HA5-000ZA

Unavailable

11

CLIP, OIL HOSE (NOT AVAILABLE)

50179-HA5-000

Unavailable

12

LEVER, SEAT LOCK

50221-HA2-000

Unavailable

13

SPRING, LEVER SETTING (NOT AVAILABLE)

50222-HA2-000

Unavailable

14

RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)

50240-HA5-000

Unavailable

15

RUBBER A, STOPPER

50352-428-000

$2.62

16

RUBBER A, STOPPER

50352-434-000

$5.17

17

PLATE, FR. ENGINE HANGER *R119* (FLASH RED) (NOT AVAILABLE) This part replaces 50353-HA5-000ZA.

50353-HA5-670ZA

Unavailable

17

PLATE, FR. ENGINE HANGER *R119* (FLASH RED) (NOT AVAILABLE)

50353-HA5-670ZA

Unavailable

18

RUBBER C, STOPPER

50355-434-000

$4.13

19

GUARD, ENGINE (NOT AVAILABLE)

50360-HA5-000

Unavailable

20

GROMMET, OIL COOLER MOUNT (NOT AVAILABLE)

64417-HA5-000

Unavailable

21

RUBBER, SEAT SETTING

77207-HA0-000

$6.64

22

BOLT, FLANGE (10X110) This part replaces 90104-MG3-000.

90105-MG3-000

$8.41

22

BOLT, FLANGE (10X110)

90105-MG3-000

$8.41

23

BOLT, FLANGE (8X60)

90106-HA5-000

Unavailable

24

COLLAR, LEVER SETTING (NOT AVAILABLE)

90109-964-000

Unavailable

26

BOLT, FLANGE (10X135)

90151-HA5-000

Unavailable

27

BOLT, FLANGE (10X235) (NOT AVAILABLE)

90152-HA5-000

Unavailable

28

BOLT, FLANGE (10X62) This part replaces 90155-HA5-000.

90183-HC0-770

$9.41

28

BOLT, FLANGE (10X62)

90183-HC0-770

$9.41

29

BOLT, FLANGE (8X12)

90190-MG3-000

$3.33

30

NUT, FLANGE (6MM)

94050-06000

$0.59

31

NUT, FLANGE (8MM)

94050-08000

$0.86

32

NUT, FLANGE (10MM)

94050-10000

$1.41

33

WASHER, PLAIN (8MM)

94101-08000

$0.75

35

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.48

35

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

36

BOLT, FLANGE (8X75)

96400-08075-00

Unavailable

37

BOLT, FLANGE (10X80)

96400-10080-00

Unavailable

38

BOLT, FLANGE (6X10)

96300-06010-00

$0.86

38

BOLT, FLANGE (6X10) This part replaces 96500-06010-00.

96300-06010-00

$0.86

39

BOLT, FLANGE (6X12)

96300-06012-00

$0.86

39

BOLT, FLANGE (6X12) This part replaces 96500-06012-00.

96300-06012-00

$0.86

40

BOLT, FLANGE (6X25)

96300-06025-00

$1.33

40

BOLT, FLANGE (6X25) This part replaces 96400-06025-00.

96300-06025-00

$1.33

40

BOLT, FLANGE (6X25) This part replaces 96500-06025-00.

96300-06025-00

$1.33

41

BOLT, FLANGE (8X16)

96300-08016-00

$1.28

41

BOLT, FLANGE (8X16) This part replaces 96400-08016-00.

96300-08016-00

$1.28

41

BOLT, FLANGE (8X16) This part replaces 96500-08016-00.

96300-08016-00

$1.28
