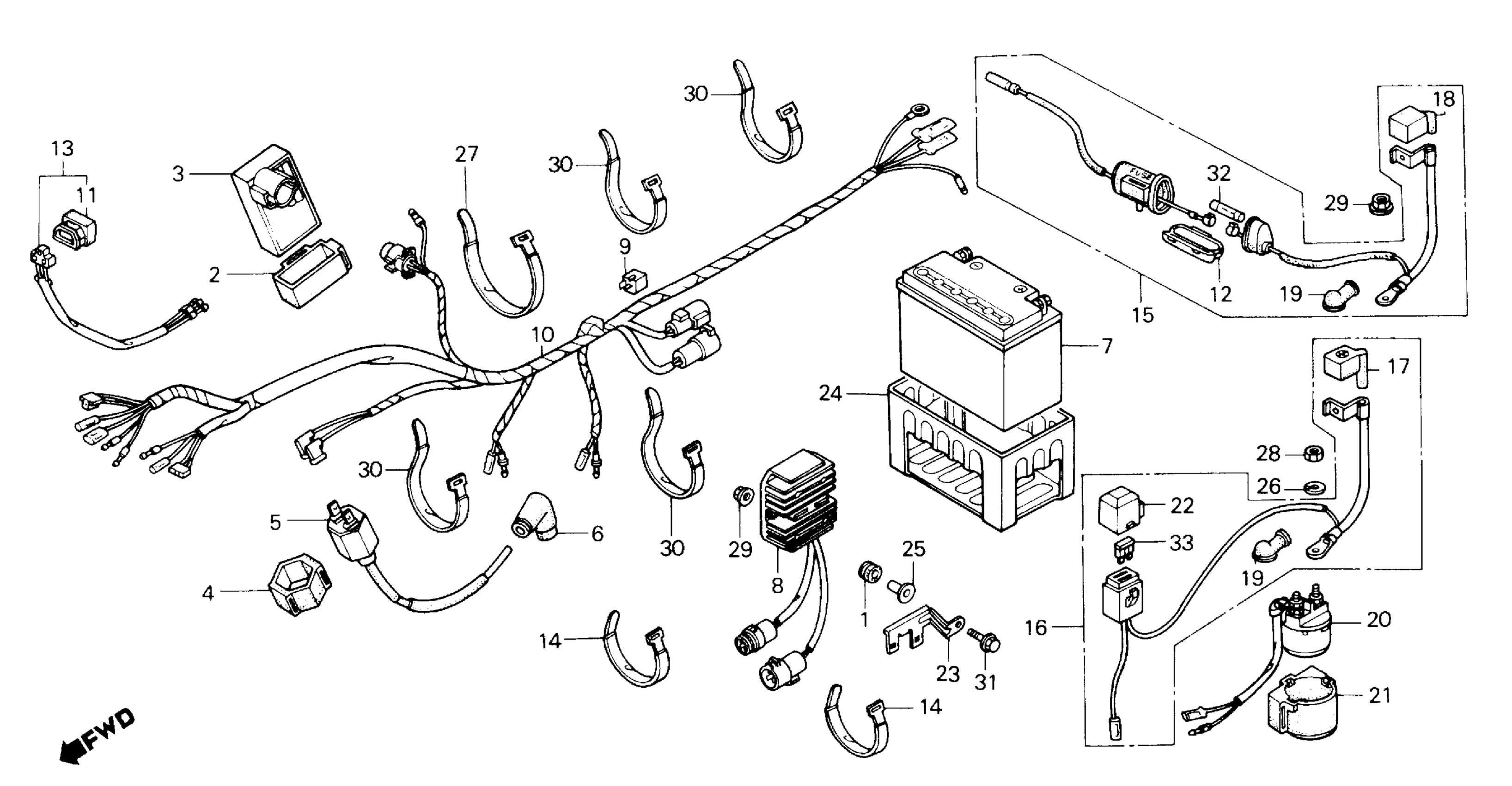

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

NI

BAND A2, CABLE This part replaces 32161-473-000.

95014-61200

$2.33

NI

BAND A2, CABLE

95014-61200

$2.33

1

GROMMET A, RR. COVER

11344-MB0-000

$2.75

2

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HA0-000.

30401-KYY-900

$4.21

3

MODULE, IGNITION CONTROL (CDI)

30410-HA8-003

Unavailable

4

SUSPENSION, IGNITION COIL

30506-HA0-000

Unavailable

5

COIL, IGNITION This part replaces 30510-HA0-000.

30510-MK4-405

$80.38

5

COIL, IGNITION

30510-MK4-405

$80.38

6

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-003.

30700-MA0-163

$22.32

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

7

BATTERY (YTX12-BS) This part replaces 31500-HA0-681.

31500-HS0-AK1AH

Unavailable

7

BATTERY (YTX12-BS) This part replaces 31500-HA0-682.

31500-HS0-AK1AH

Unavailable

7

BATTERY (YTX12-BS) This part replaces 31500-HA0-683.

31500-HS0-AK1AH

Unavailable

7

BATTERY (YTX12-BS) This part replaces 31500-HA0-685.

31500-HS0-AK1AH

Unavailable

7

BATTERY (YTX12-BS) This part replaces 31500-HA0-686.

31500-HS0-AK1AH

Unavailable

7

BATTERY (YTX12-BS) This part replaces 31500-HF1-677.

31500-HS0-AK1AH

Unavailable

7

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

7

BATTERY (YTX12-BS) This part replaces 31500-KM1-834.

31500-HS0-AK1AH

Unavailable

8

RECTIFIER, REGULATOR This part replaces 31600-HA0-000.

31600-HA8-770

Unavailable

9

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

9

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

10

WIRE HARNESS (NOT AVAILABLE)

32100-HA6-680

Unavailable

11

COVER, HEADLIGHT SOCKET

32106-KE1-600

Unavailable

13

SUB-WIRE HARNESS, HEADLIGHT

32120-HA6-000

Unavailable

14

BAND, WIRE HARNESS

90652-MB0-000

$3.15

16

CABLE, BATTERY RELAY (NOT AVAILABLE)

32401-HA6-770

Unavailable

17

COVER, BATTERY TERMINAL

32411-HA6-681

$5.61

19

COVER A, MAGNETIC SWITCH

32415-425-000

$3.30

20

SWITCH ASSY., STARTER MAGNETIC

35850-HA0-771

$110.58

21

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

22

COVER, FUSE CASE (NOT AVAILABLE)

38251-HA6-770

Unavailable

23

STAY, CONNECTOR

50326-HA6-000

Unavailable

24

RUBBER, BATTERY

50334-HA0-000

Unavailable

25

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

26

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

27

BAND, WIRE (NOT AVAILABLE)

90130-HA6-000

Unavailable

28

NUT, HEX. (6MM)

94002-06390-0S

$1.49

29

NUT, FLANGE (6MM)

94050-06000

$1.49

30

BAND B1, CABLE

32161-404-000

$2.23

30

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

31

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

31

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

33

FUSE, BLADE (15A)

98200-31500

$1.49
