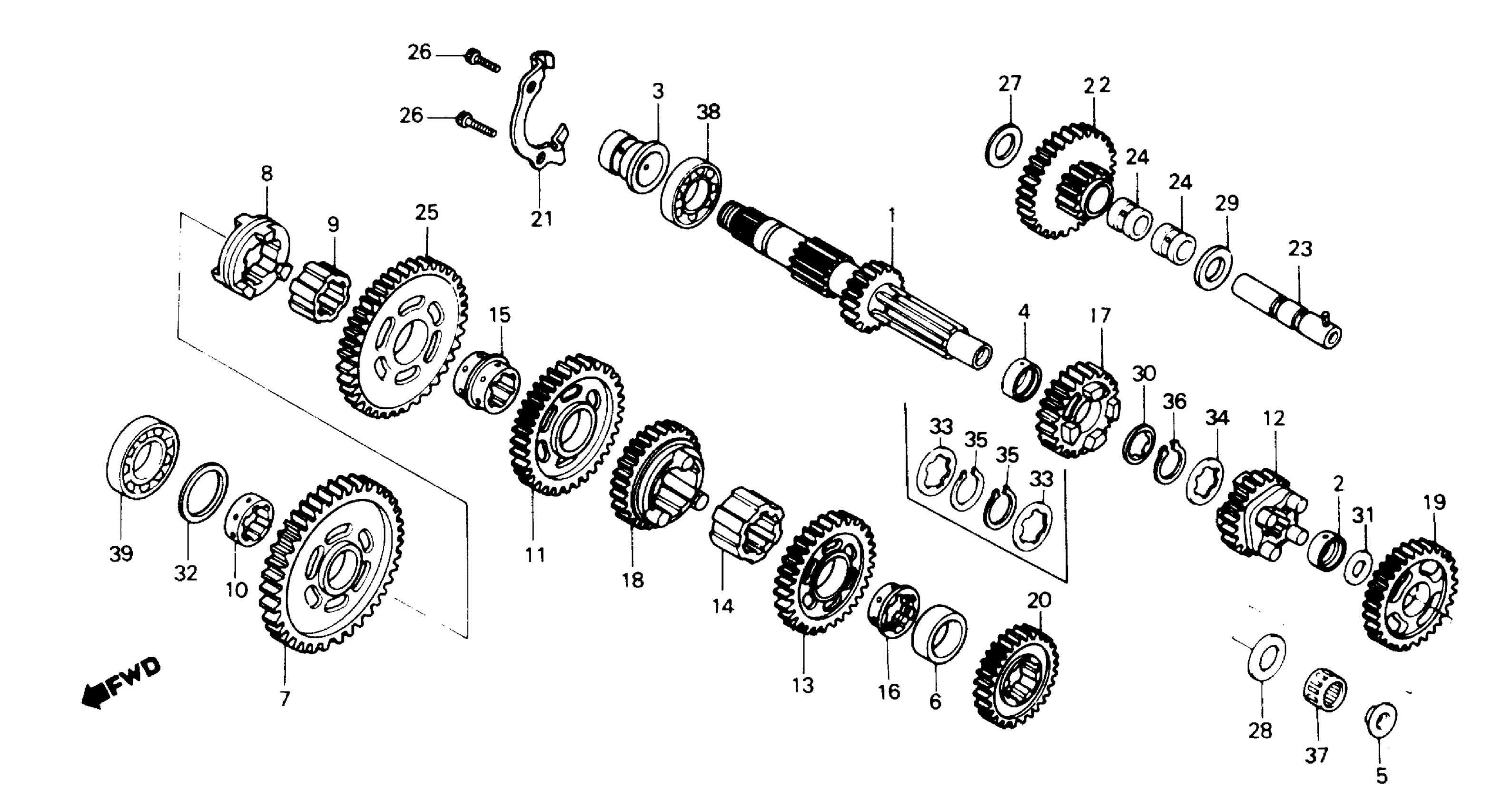

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) This part replaces 23211-HA6-680.

23211-HA6-000

Unavailable

2

BUSH (17MM)

23212-HA0-000

Unavailable

3

BUSH (22MM)

23213-HA0-000

Unavailable

4

BUSH A (22MM)

23214-HA0-000

$15.51

5

PLATE, OIL GUIDE (NOT AVAILABLE)

23219-HA0-000

Unavailable

6

COLLAR, COUNTERSHAFT

23224-HA0-680

Unavailable

7

GEAR, COUNTERSHAFT LOW (47T)

23411-HA6-770

Unavailable

8

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HA7-670

Unavailable

9

COLLAR, SPLINE

23413-HA7-670

Unavailable

10

BUSH, SPLINE (25MM)

23414-HA0-000

$22.00

11

GEAR, COUNTERSHAFT SECOND (40T)

23431-HA6-770

Unavailable

12

GEAR, MAINSHAFT THIRD (25T)

23441-HA6-770

Unavailable

13

GEAR, COUNTERSHAFT THIRD (35T) (NOT AVAILABLE)

23451-HA6-000

Unavailable

14

COLLAR, SPLINE

23453-HA0-000

Unavailable

15

BUSH, SPLINE

23454-HA0-770

Unavailable

16

BUSH B, SPLINE (25MM) (NOT AVAILABLE)

23455-HA0-000

Unavailable

17

GEAR, MAINSHAFT FOURTH (29T) (NOT AVAILABLE)

23461-HA6-770

Unavailable

18

GEAR, COUNTERSHAFT FOURTH (31T) (NOT AVAILABLE)

23471-HA6-000

Unavailable

19

GEAR, MAINSHAFT FIFTH (33T) (NOT AVAILABLE)

23481-HA6-000

Unavailable

20

GEAR, COUNTERSHAFT FIFTH (28T)

23491-HA6-000

Unavailable

21

PLATE, BEARING SETTING

23521-HA0-000

$13.52

22

GEAR, REVERSE IDLE (33T) (NOT AVAILABLE)

23721-HA6-000

Unavailable

23

SHAFT, REVERSE IDLE

23730-HA0-770

Unavailable

24

BUSH, REVERSE IDLE GEAR

23732-HA0-000

Unavailable

25

GEAR, COUNTERSHAFT REVERSE (46T)

23751-HA6-770

Unavailable

26

BOLT, SOCKET (6X16)

96600-06016-10

$3.59

26

BOLT, SOCKET (6X16) This part replaces 96700-06016-10.

96600-06016-10

$3.59

27

WASHER, THRUST (14MM)

90402-HA0-000

$3.51

28

WASHER, THRUST (17MM)

90403-HA0-000

$5.75

29

WASHER, PLAIN (14MM)

90412-HA0-000

$8.51

30

WASHER, LOCK

90432-KF0-000

$8.65

31

WASHER, THRUST (17MM)

90452-178-000

$3.89

32

WASHER, THRUST (20MM)

90454-HA0-000

Unavailable

34

WASHER, SPLINE (22MM)

90464-KE8-000

$3.83

36

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.43

37

BEARING, NEEDLE (17MM)

91001-HA0-004

Unavailable

38

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-008.

91005-KS4-003

$36.31

38

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$36.31

39

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98
