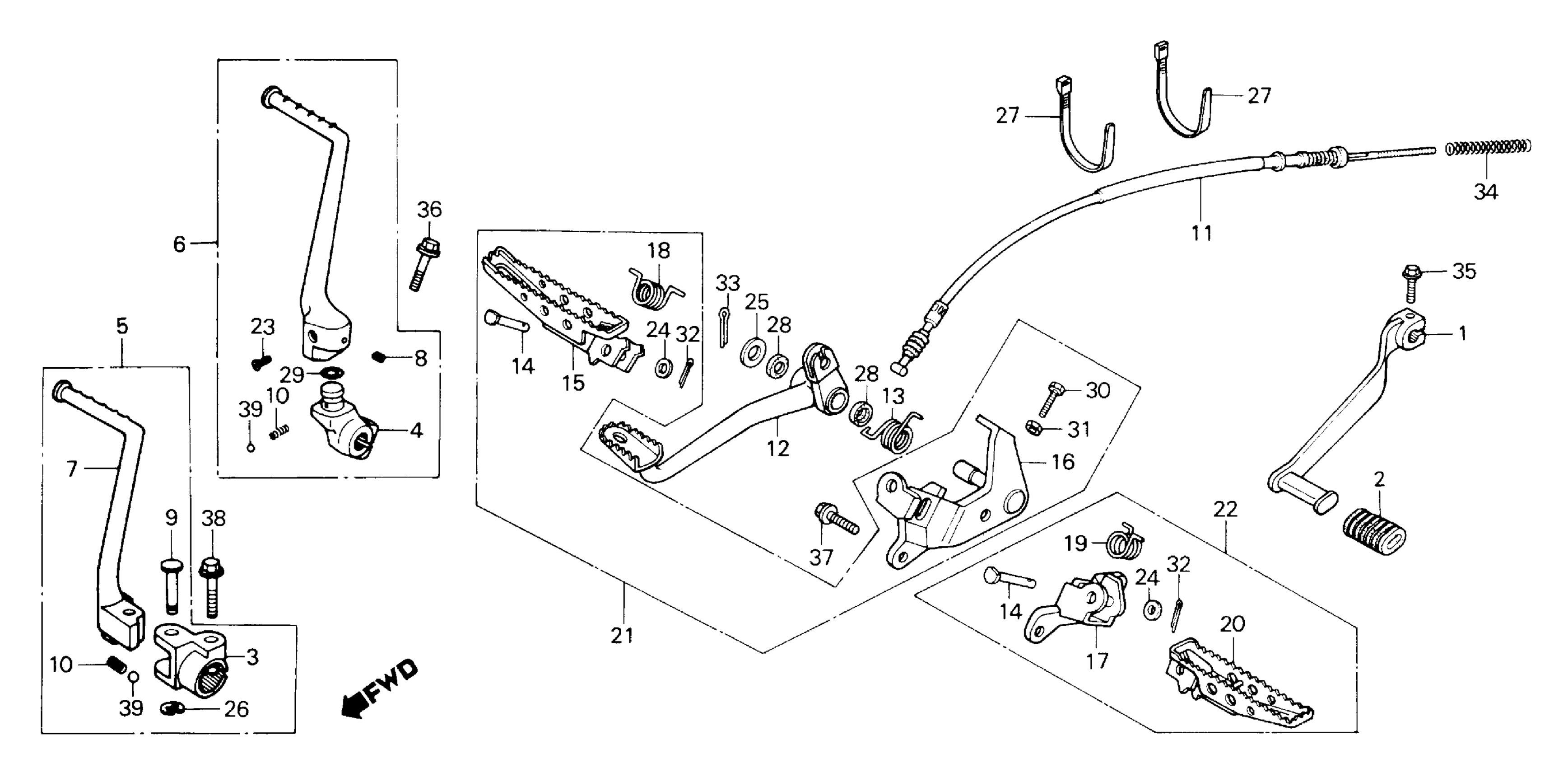

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 STEP + PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-HA0-680

Unavailable

1

PEDAL, GEARSHIFT This part replaces 24700-HA6-680.

24700-HA0-680

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

4

JOINT, KICK ARM

28241-HA6-680

Unavailable

6

ARM ASSY., KICK STARTER

28300-HA6-680

Unavailable

8

PLUG, KICK ARM

28302-965-000

$2.59

10

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

11

CABLE, FOOT BRAKE (NOT AVAILABLE)

43470-HA6-770

Unavailable

12

PEDAL, BRAKE (NOT AVAILABLE)

46500-HA6-000

Unavailable

13

SPRING, BRAKE PEDAL

46514-HA0-000

Unavailable

14

PIN, STEP JOINT (NOT AVAILABLE)

50603-HA0-680

Unavailable

15

STEP, R. (NOT AVAILABLE)

50610-HA0-770

Unavailable

16

PLATE, R. STEP (NOT AVAILABLE)

50615-HA0-000

Unavailable

17

PLATE, L. STEP

50616-HA0-000

Unavailable

18

SPRING, R. STEP RETURN

50617-HA0-680

Unavailable

19

SPRING, L. STEP RETURN

50618-HA0-680

Unavailable

20

STEP, L. (NOT AVAILABLE)

50620-HA0-770

Unavailable

21

ARM ASSY., R. STEP (NOT AVAILABLE)

50630-HA0-770

Unavailable

22

ARM ASSY., L. STEP (NOT AVAILABLE)

50640-HA0-770

Unavailable

23

SCREW (6X28)

90104-965-003

Unavailable

24

WASHER, THRUST (8MM)

90450-147-000

$1.80

25

WASHER (17.5MM)

90512-303-000

$1.77

27

BAND, SELF-LOCK

91058-MG9-681

$2.21

28

DUST SEAL (17X23X3)

91206-968-003

$3.69

29

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

30

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

32

PIN, COTTER (1.6X25)

94201-16250

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

33

PIN, COTTER (3.0X45)

94201-30450

$1.49

34

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

35

BOLT, FLANGE (6X20)

90118-968-000

$4.24

36

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

36

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

37

BOLT, FLANGE (10X35) This part replaces 95800-10035-00.

95801-10035-00

$2.30

37

BOLT, FLANGE (10X35)

95801-10035-00

$2.30

39

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
