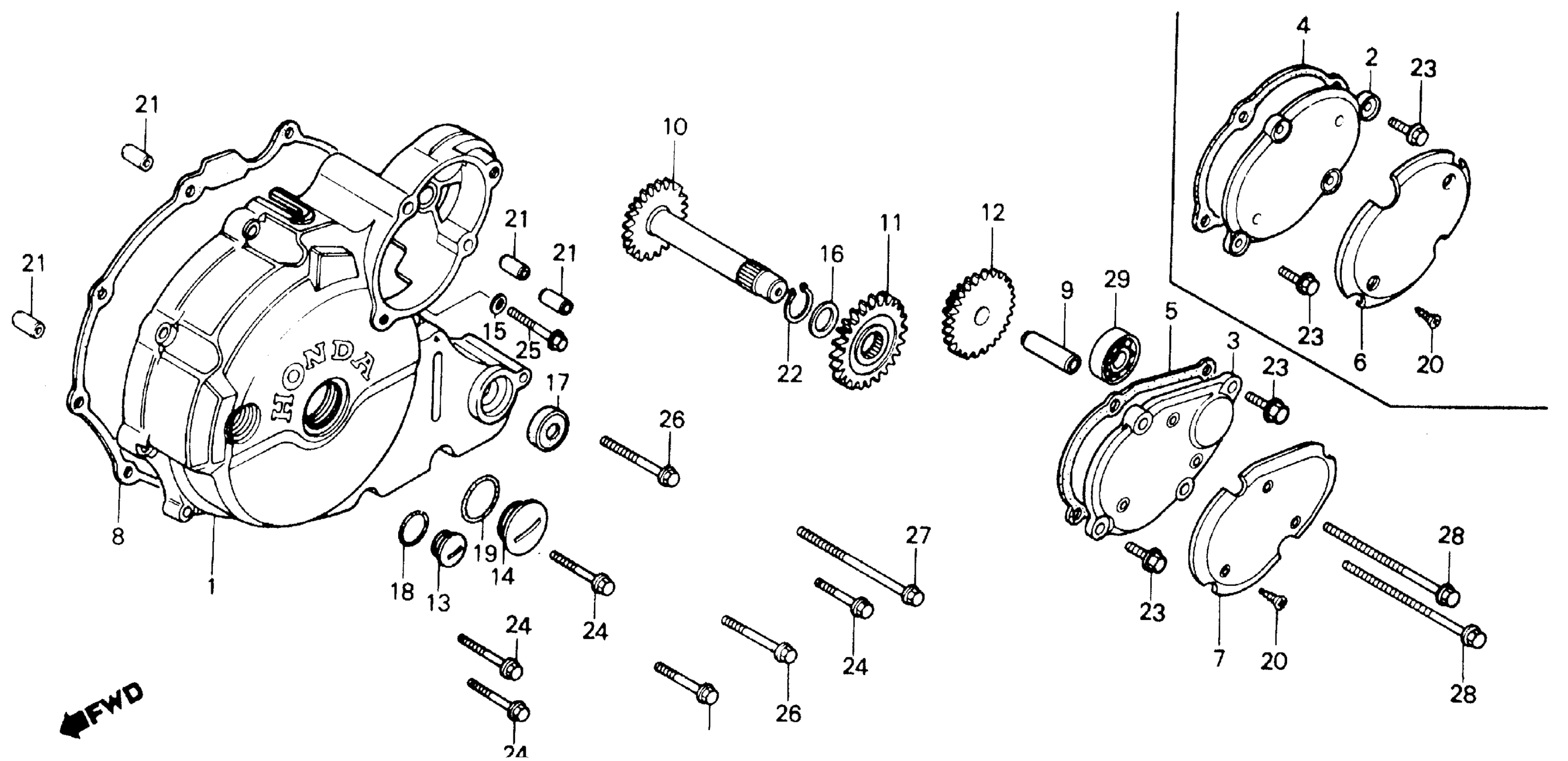

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-HA6-770

Unavailable

3

COVER, STARTING GEAR (NOT AVAILABLE)

11355-HA6-770

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA0-307.

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA0-770.

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA7-690.

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA7-921.

11356-HA7-P00

Unavailable

7

PROTECTOR, STARTING GEAR COVER

11357-HA0-770

Unavailable

8

GASKET, L. CRANKCASE COVER This part replaces 11395-HA0-000.

11395-HC5-740

$15.68

8

GASKET, L. CRANKCASE COVER

11395-HC5-740

$15.68

9

SHAFT A, STARTER REDUCTION

28133-HA0-770

$10.88

10

SHAFT, STARTER REDUCTION (21T) (NOT AVAILABLE)

28130-HA0-770

Unavailable

11

GEAR C, STARTER REDUCTION (25T)

28131-HA0-770

Unavailable

12

GEAR, STARTER REDUCTION (43T/18T)

28140-HA0-770

Unavailable

13

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

13

CAP, ALTERNATOR

90084-471-000

Unavailable

14

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

15

WASHER, SEALING (6MM)

90441-706-000

$1.06

16

WASHER, THRUST (12MM)

90451-GF6-000

$2.03

17

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$5.99

17

OIL SEAL (13X28X7) (NOK)

91201-HA0-004

Unavailable

17

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$5.99

18

O-RING (13.8X2.5)

91303-377-000

$3.18

19

O-RING (27X2.0)

91305-KF0-003

$2.80

20

SCREW, TAPPING (4X12)

90017-HA0-000

$2.36

21

PIN A, DOWEL (8X14)

94301-08140

$2.04

22

CIRCLIP (OUTER) (15MM)

94510-15000

$1.04

23

BOLT, FLANGE (6X18)

96001-06018-00

$1.64

24

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

25

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

26

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

27

BOLT, FLANGE (6X55)

96001-06055-00

$1.48

28

BOLT, FLANGE (6X90)

96001-06090-00

$1.78

29

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
