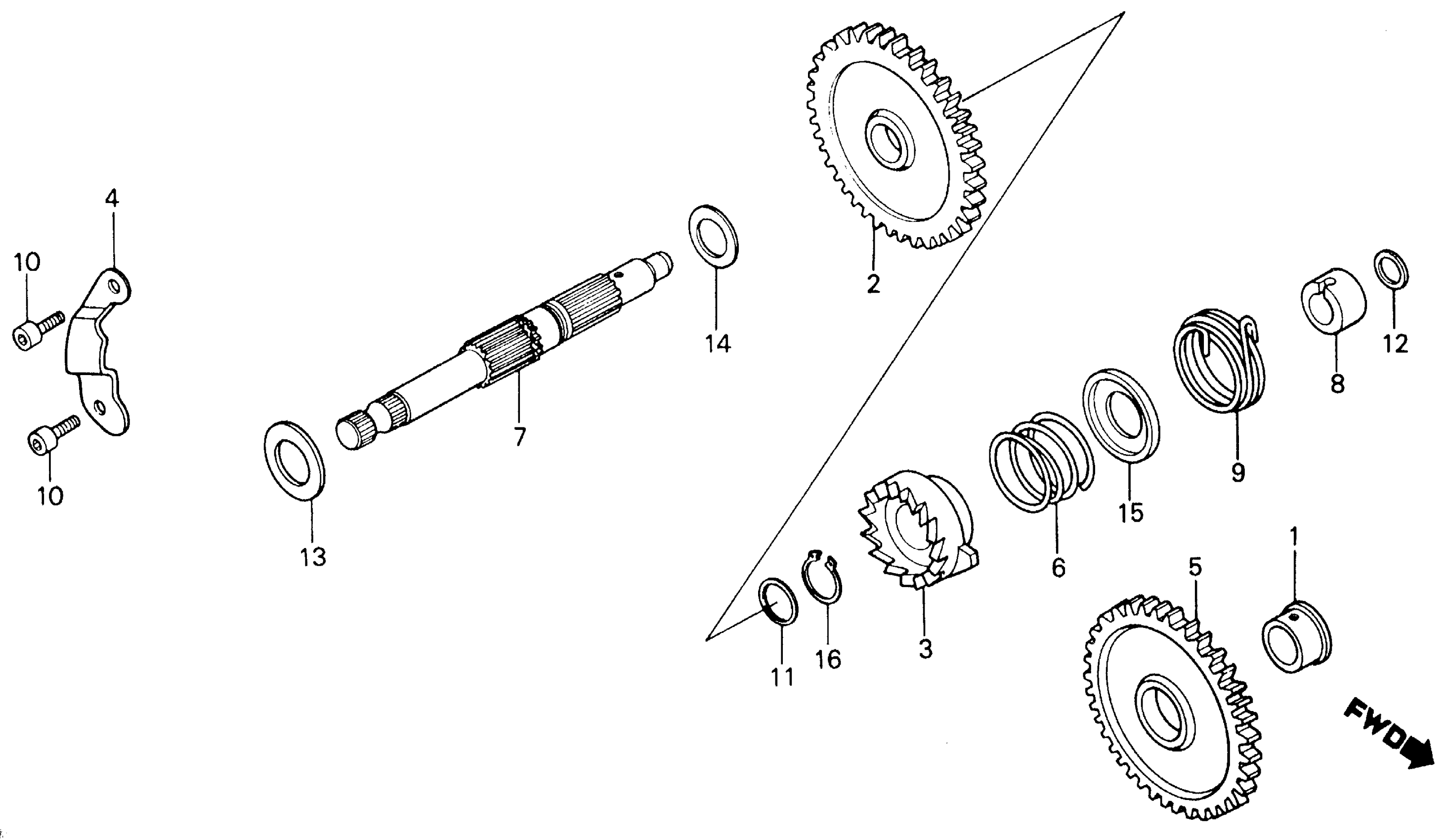

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 KICK STARTER Diagram

BUSH (20MM) (NOT AVAILABLE)

23223-HA0-000

Unavailable

PINION, KICK STARTER

28211-HA0-000

Unavailable

RATCHET, KICK STARTER

28213-HA0-000

Unavailable

PLATE, KICK STOPPER

28215-HA0-000

Unavailable

GEAR, KICK STARTER IDLE (35T) (NOT AVAILABLE)

28221-HA0-000

Unavailable

SPRING, KICK STARTER RATCHET

28223-HA0-000

Unavailable

SPINDLE, KICK STARTER

28250-HA0-000

Unavailable

COLLAR, KICK STARTER

28255-KF0-010

Unavailable

SPRING, KICK STARTER (NOT AVAILABLE)

28261-HA0-000

Unavailable

BOLT, SOCKET (6X16)

96600-06016-10

$4.07

BOLT, SOCKET (6X16) This part replaces 96700-06016-10.

96600-06016-10

$4.07

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER B, THRUST (14MM)

90428-958-000

$4.66

WASHER, THRUST (22MM)

90456-323-000

Unavailable

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67
