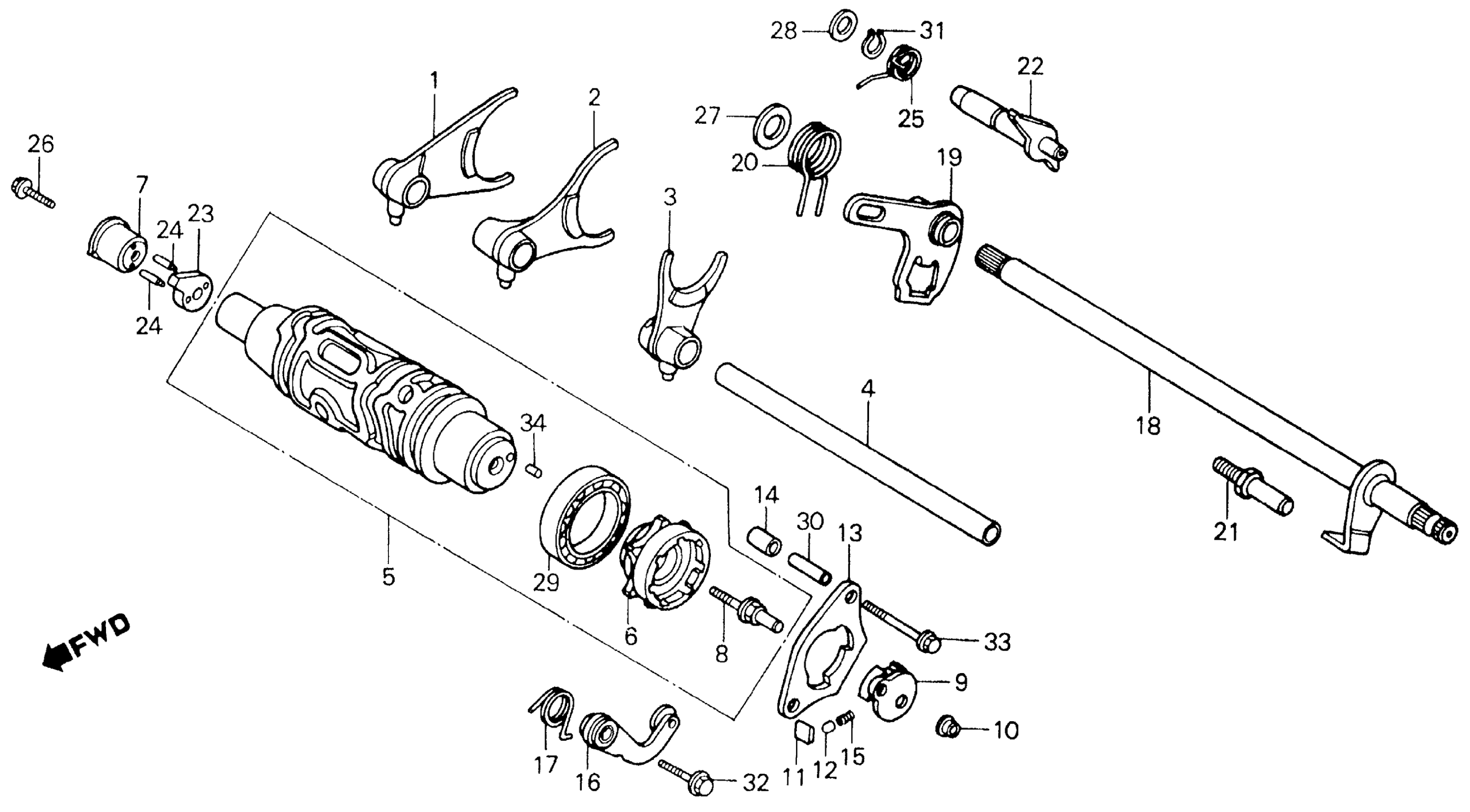

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HA0-010

Unavailable

2

FORK, CENTER GEARSHIFT

24212-HA0-000

Unavailable

3

FORK, L. GEARSHIFT

24213-HA0-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-HA0-000.

24241-HM3-670

$35.30

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HM3-670

$35.30

5

DRUM ASSY., GEARSHIFT

24300-HA0-003

Unavailable

6

CENTER, SHIFT DRUM

24312-HA0-004

Unavailable

7

ROTOR, NEUTRAL SWITCH

24314-HA0-000

Unavailable

8

PIN, SHIFTER

24315-HA0-000

$12.60

9

SHIFTER, DRUM

24321-HA0-004

Unavailable

10

COLLAR, SHIFTER

24322-HA0-000

$5.49

11

PAWL, RATCHET

24324-KA3-740

Unavailable

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

12

PLUNGER, PAWL

24326-360-010

$5.19

13

PLATE, GUIDE

24328-HA0-000

Unavailable

14

COLLAR, GUIDE PLATE DISTANCE

24329-HA0-000

$5.81

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, GEARSHIFT DRUM

24430-HA0-000

Unavailable

17

SPRING, SHIFT DRUM STOPPER

24435-HA0-000

$3.17

18

SPINDLE, GEARSHIFT

24610-HA0-000

Unavailable

19

ARM, GEARSHIFT This part replaces 24621-HA0-010.

24621-HA0-020

Unavailable

19

ARM, GEARSHIFT

24621-HA0-020

Unavailable

20

SPRING, GEARSHIFT RETURN

24651-HA0-000

Unavailable

21

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

22

SHAFT, REVERSE STOPPER

24860-HA0-000

Unavailable

23

CAM, REVERSE STOPPER

24862-HA0-000

Unavailable

24

PIN, REVERSE STOPPER CAM

24863-HA0-000

Unavailable

25

SPRING, REVERSE STOPPER

24867-HA0-000

Unavailable

26

BOLT, SOCKET (6X20)

96700-06020-10

Unavailable

27

WASHER, THRUST (13MM)

90451-459-770

$2.48

28

WASHER (12MM) This part replaces 90546-HA0-000.

90546-KF0-000

Unavailable

28

WASHER (12MM)

90546-KF0-000

Unavailable

29

BEARING (16005) (KOYO)

91051-719-003

$28.92

30

PIN, DOWEL (8X26.5)

91104-HA0-000

$4.74

31

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

32

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

33

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

34

ROLLER (4X8)

96220-40080

$1.49
