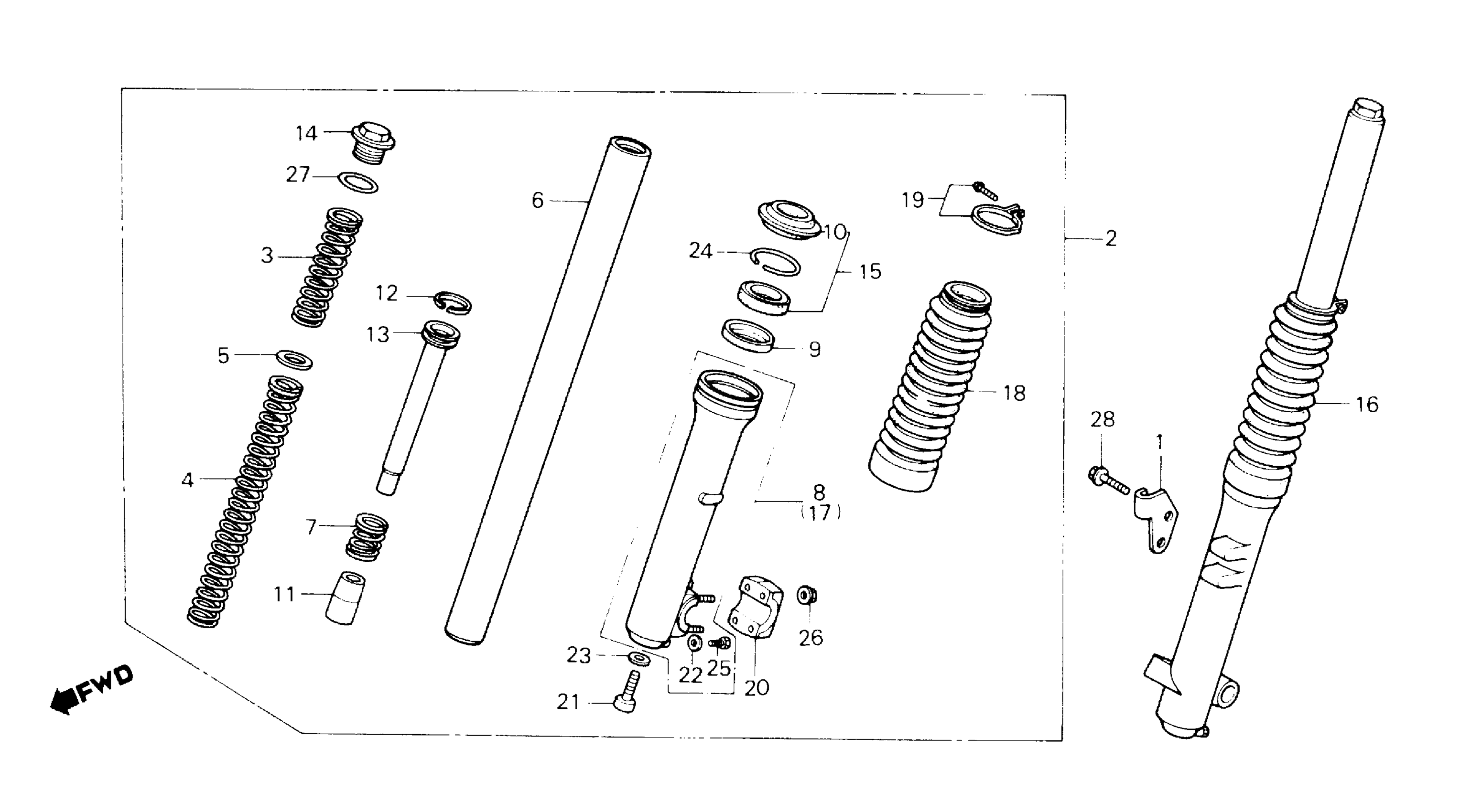

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 FRONT FORK Diagram

#

Description
Price

1

RECEIVER, BRAKE CABLE (NOT AVAILABLE)

45453-HA6-000

Unavailable

2

FORK ASSY., R. FR.

51400-HA6-681

Unavailable

3

SPRING, FR. FORK

51401-HA6-003

Unavailable

4

SPRING B, FR. FORK (NOT AVAILABLE)

51402-HA6-003

Unavailable

5

SEAT, SPRING

51403-KJ3-003

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-HA6-003

Unavailable

7

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

8

CASE, R. (LOWER) (NOT AVAILABLE)

51420-HA6-681

Unavailable

9

RING, BACK-UP This part replaces 51422-376-003.

51422-376-305

Unavailable

9

RING, BACK-UP

51422-376-305

Unavailable

10

DUST SEAL

51425-473-003

$26.44

11

PIECE, OIL LOCKING

51432-447-731

$27.42

12

RING, PISTON

51437-400-771

$6.30

13

PIPE, SEAT (NOT AVAILABLE)

51440-HA6-003

Unavailable

14

BOLT, FR. FORK

51454-471-003

Unavailable

15

SEAL SET, FR. FORK

51490-473-305

$37.03

16

FORK ASSY., L. FR.

51500-HA6-681

Unavailable

17

CASE, L. (LOWER)

51520-HA6-681

Unavailable

18

BOOT, FR. FORK

51611-965-682

Unavailable

19

BAND, FR. FORK BOOT

51612-434-000

$12.06

20

HOLDER, AXLE

51634-MA0-003

$37.46

21

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

21

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

22

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

24

RING, OIL SEAL STOPPER

90601-369-000

$3.47

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

NUT, U (6MM)

90301-473-003

$4.07

27

O-RING (23X2.8)

94608-50000

$1.49

28

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

28

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
