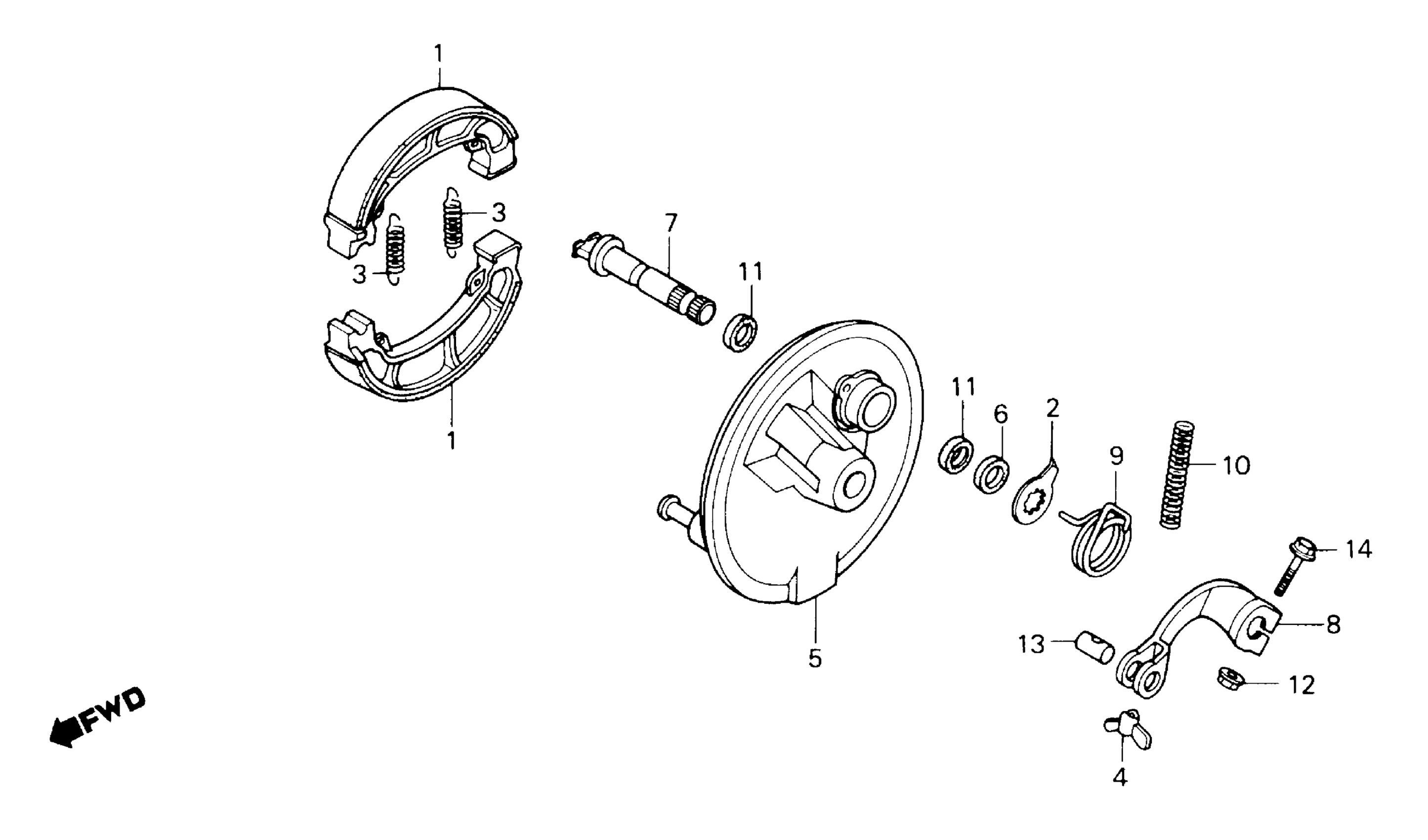

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE This part replaces 06430-HF1-911.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 06430-HF7-J20.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 06430-HF7-000.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 06430-968-405.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 431A2-968-681.

06430-HF7-A30

$32.48

1

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$32.48

1

SHOE SET, BRAKE This part replaces 43120-968-682.

06430-HF7-A30

$32.48

2

INDICATOR, BRAKE (NOT AVAILABLE) This part replaces 43145-HA0-680.

43145-HA0-000

Unavailable

3

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

4

NUT, BRAKE ADJUST

43459-434-000

$15.27

5

PANEL, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC)

45100-HA6-000ZA

Unavailable

6

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

7

CAM, FR. BRAKE (NOT AVAILABLE)

45141-HA0-000

Unavailable

8

ARM, FR. BRAKE (NOT AVAILABLE)

45410-HA6-680

Unavailable

9

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45415-HA0-680

Unavailable

10

SPRING, FR. BRAKE ROD (NOT AVAILABLE)

45455-HA6-000

Unavailable

11

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

12

NUT, FLANGE (6MM)

94050-06000

$1.49

13

JOINT, FR. BRAKE ARM (NOT AVAILABLE)

45454-HA0-000

Unavailable

14

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

14

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
