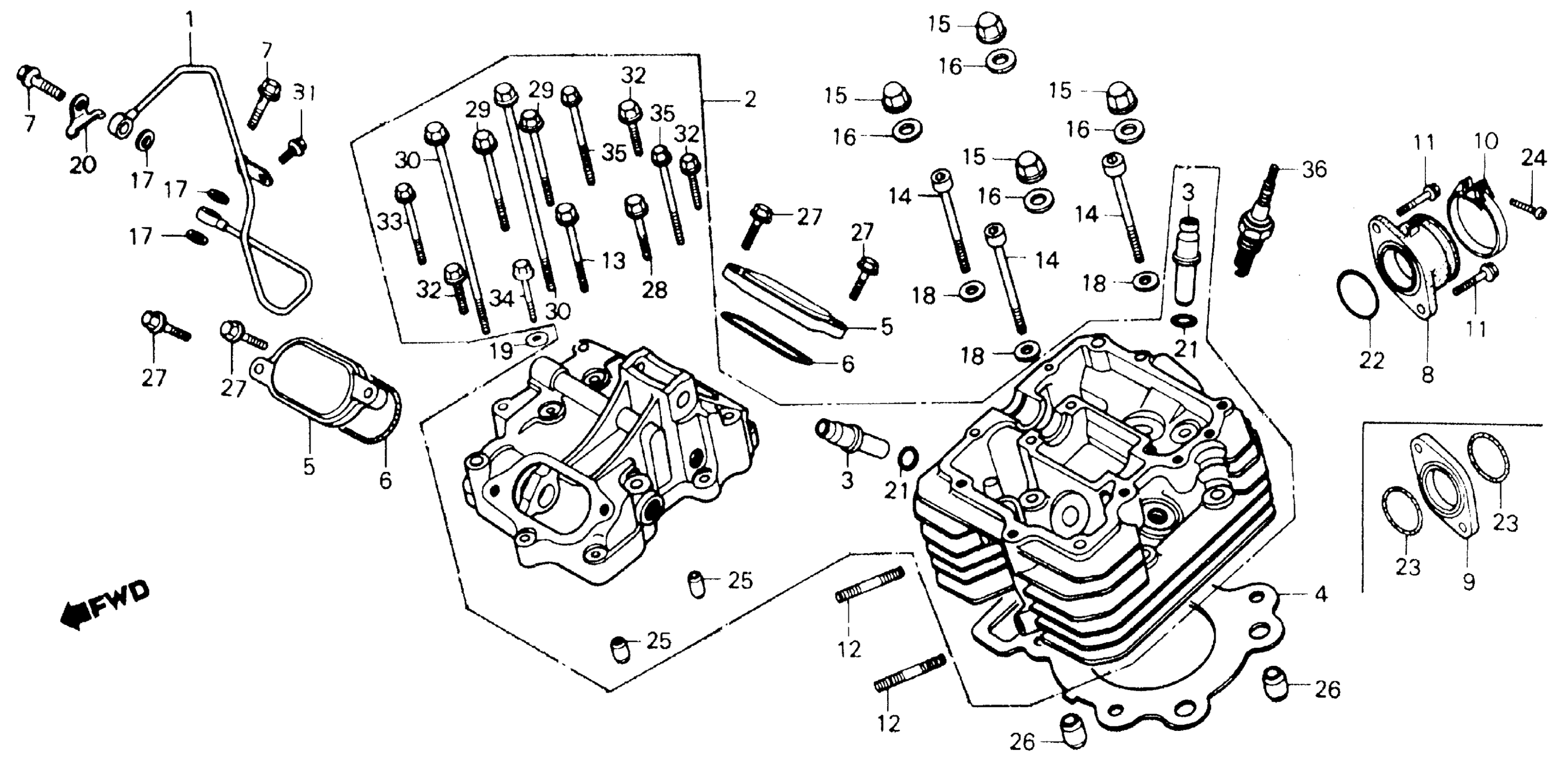

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, OIL PASSAGE This part replaces 11335-HA0-000.

11335-HA0-003

Unavailable

1

PIPE, OIL PASSAGE

11335-HA0-003

Unavailable

2

CYLINDER HEAD ASSY.

12000-HA6-770

Unavailable

3

GUIDE, VALVE (OS)

12232-HA0-305

$13.92

4

GASKET, CYLINDER HEAD This part replaces 12251-HA0-003.

12251-HA0-004

$33.54

4

GASKET, CYLINDER HEAD

12251-HA0-004

$33.54

4

GASKET, CYLINDER HEAD (OS 0.50-1.00) | (Optional).

12252-HA0-305

Unavailable

5

COVER, TAPPET ADJ. HOLE

12351-428-000

$37.87

6

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

6

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.92

7

BOLT, FLANGE (7X23) This part replaces 15533-HA0-000.

15533-KL8-730

Unavailable

8

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-HA0-681

Unavailable

10

BAND, INSULATOR

16219-422-000

$12.72

11

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

12

BOLT, STUD (8X22)

92900-08022-0B

$2.13

13

BOLT, FLANGE (6X52)

90009-HA0-000

$4.24

14

BOLT, SOCKET (8X88)

90064-HA0-000

Unavailable

16

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.45

17

WASHER (10MM)

90410-HA0-000

Unavailable

18

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

19

WASHER, SEALING (8MM)

90441-469-000

$5.28

20

WASHER, SEALING (6MM)

90441-706-000

$1.49

21

WASHER, LOCK (7MM)

90443-HA0-771

$5.57

22

O-RING (10X1.6)

91301-200-000

$3.01

23

O-RING (33.7X2.4)

91305-HA0-680

$8.66

25

SCREW, PAN (5X20)

93500-05020-0G

$1.49

26

PIN A, DOWEL (8X12)

94301-08120

$2.19

27

PIN A, DOWEL (12X20)

94301-12200

$2.29

28

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

29

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

30

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

31

BOLT, FLANGE (6X140)

95701-06140-00

$2.92

32

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

33

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

34

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

35

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

36

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

37

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

37

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

37

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.44

37

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.44

37

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.44

37

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.50

37

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.50

37

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

37

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.54
