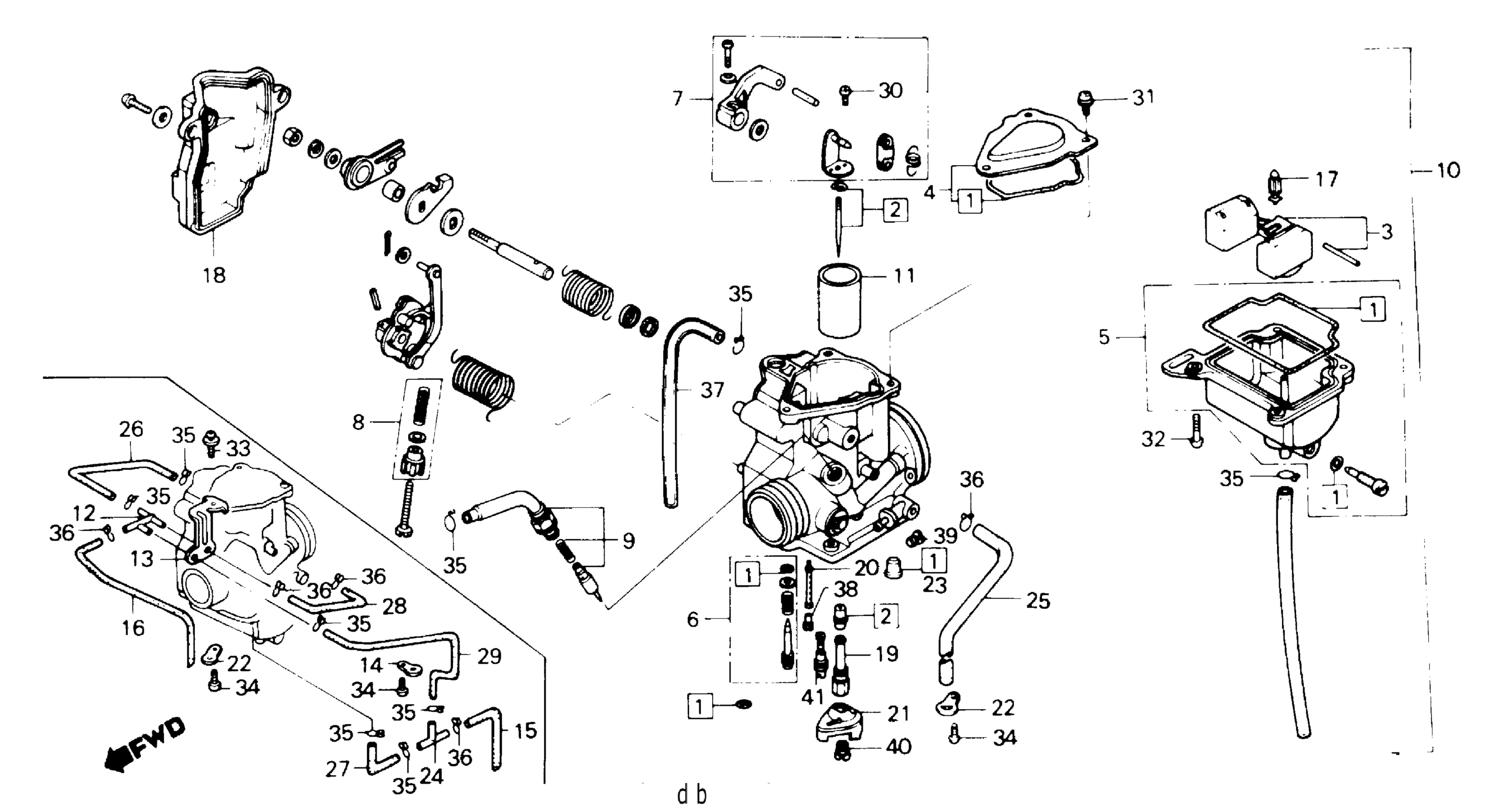

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HA0-681

$22.67

2

NEEDLE SET, JET

16012-HA0-003

$46.30

3

FLOAT SET This part replaces 16013-HA0-003.

16013-HN5-671

$43.09

3

FLOAT SET

16013-HN5-671

$43.09

4

TOP SET This part replaces 16014-HA0-003.

16014-HM3-L00

Unavailable

4

TOP SET

16014-HM3-L00

Unavailable

5

CHAMBER SET, FLOAT

16015-HA0-682

Unavailable

6

SCREW SET This part replaces 16016-HA0-682.

16016-HM3-L00

Unavailable

6

SCREW SET

16016-HM3-L00

Unavailable

7

ARM SET, LINK | Use up to Engine SN QA08A A This part replaces 16018-HA0-003.

16018-HA7-771

Unavailable

7

ARM SET, LINK | Use up to Engine SN QA08A A This part replaces 16018-HA7-671.

16018-HA7-771

Unavailable

7

ARM SET, LINK | Use from Engine SN QA08A B

16018-HA7-771

Unavailable

8

SCREW SET This part replaces 16028-KR3-671.

16028-KR3-980

$46.87

8

SCREW SET This part replaces 16028-MB0-671.

16028-KR3-980

$46.87

9

VALVE SET, STARTER

16046-HA0-681

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-HA6-681.

16100-HA6-305

Unavailable

11

PISTON, VACUUM

16111-HA0-003

Unavailable

12

JOINT

16133-HA0-003

Unavailable

13

STAY, JOINT

16134-HA0-003

Unavailable

14

BINDER

16134-HA0-681

Unavailable

15

PIPE, OVERFLOW This part replaces 16143-HA0-681.

16198-ML4-405

Unavailable

15

PIPE, OVERFLOW This part replaces 16198-KR3-405.

16198-ML4-405

Unavailable

16

TUBE

16144-HA0-681

Unavailable

17

VALVE, FLOAT

16155-397-971

$41.45

18

BODY, COVER

16160-HA0-003

Unavailable

19

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-HA6-003

Unavailable

20

NOZZLE, MAIN

16166-HA6-003

Unavailable

21

HOLDER, JET This part replaces 16168-HA5-003.

16168-HC4-003

$12.24

21

HOLDER, JET This part replaces 16168-HA5-004.

16168-HC4-003

$12.24

21

HOLDER, JET

16168-HC4-003

$12.24

22

BINDER

16179-HA0-003

$12.85

23

CAP, SEALING (NOT AVAILABLE)

16179-HA0-681

Unavailable

24

T-JOINT This part replaces 16180-MB2-881.

17194-MN5-000

$12.39

26

TUBE

16198-HA0-681

Unavailable

27

TUBE, AIR VENT

16199-GC7-004

Unavailable

28

TUBE, AIR VENT (NOT AVAILABLE)

16199-HA0-681

Unavailable

29

TUBE, AIR VENT

16199-943-003

Unavailable

30

SCREW, PAN (3X6)

93500-03006-0H

$1.49

30

SCREW, PAN (3X6) This part replaces 93500-03006-1H.

93500-03006-0H

$1.49

31

SCREW, PAN (4X8)

93500-04008-0H

$1.49

31

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

32

SCREW, PAN (4X14)

93500-04014-0H

$1.49

32

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

33

SCREW-WASHER (4X10)

93892-04010-08

$1.49

33

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

34

SCREW-WASHER (4X16)

93892-04016-08

$1.49

34

SCREW-WASHER (4X16) This part replaces 93892-04016-1H.

93892-04016-08

$1.49

34

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

35

CLIP, TUBE (B7)

95002-02070

$1.80

36

CLIP, TUBE (B8)

95002-02080

$1.80

38

JET, MAIN (#45)

99101-HA0-0450

Unavailable

39

JET, BY-STARTER (#80) This part replaces 99101-HA5-0800.

99112-HC4-0800

Unavailable

39

JET, BY-STARTER (#80)

99112-HC4-0800

Unavailable

40

JET (#130) This part replaces 99101-GHB-1300.

99101-MEG-1300

$10.62

40

JET (#130) This part replaces 99101-393-1300.

99101-MEG-1300

$10.62

40

JET (#130) This part replaces 99102-HA0-1300.

99101-MEG-1300

$10.62

40

JET (#130) This part replaces 99102-393-1300.

99101-MEG-1300

$10.62

41

JET, SLOW (#38)

99103-MA4-0380

$27.62
