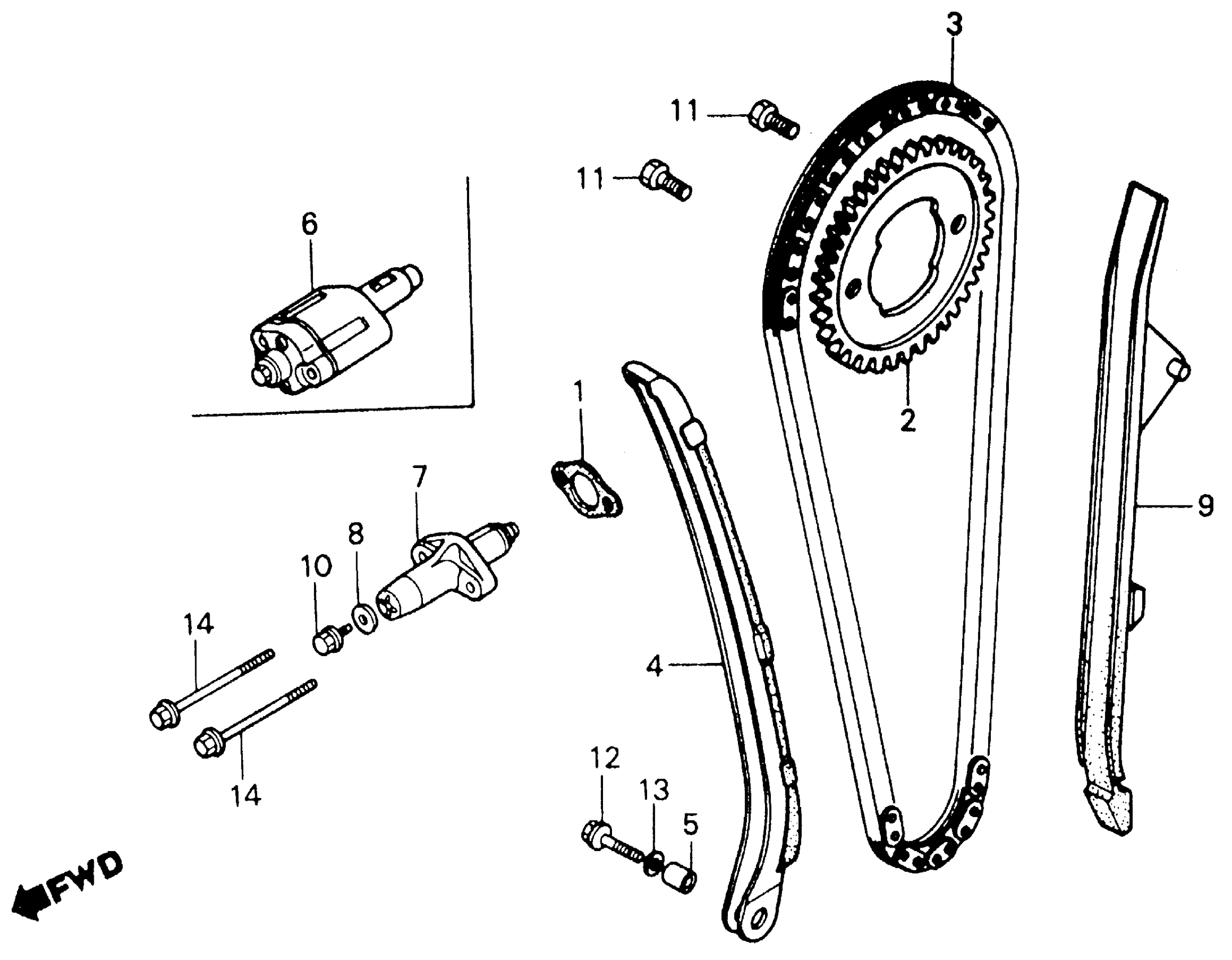

Honda ATC250SXA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-HK200001 CAM CHAIN + TENSIONER Diagram

GASKET, TENSIONER HOLE This part replaces 12194-HA0-000.

12194-HC5-740

$2.48

GASKET, TENSIONER HOLE This part replaces 12194-HA0-306.

12194-HC5-740

$2.48

GASKET, TENSIONER HOLE

12194-HC5-740

$2.48

SPROCKET, CAM (38T)

14321-HA0-010

Unavailable

CHAIN, CAM (TSUBAKIMOTO) This part replaces 14401-HA0-003.

14401-MR4-901

$173.26

CHAIN, CAM (TSUBAKIMOTO)

14401-MR4-901

$173.26

CHAIN, CAM (TSUBAKIMOTO) This part replaces 14401-HA0-771.

14401-MR4-901

$173.26

TENSIONER, CAM CHAIN

14511-HA0-000

Unavailable

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

LIFTER ASSY., TENSIONER

14520-HA7-671

Unavailable

GASKET, TENSIONER This part replaces 14525-HA7-670.

14525-HA7-690

Unavailable

GASKET, TENSIONER

14525-HA7-690

Unavailable

GUIDE, CAM CHAIN

14620-HA0-003

Unavailable

BOLT, FLANGE (6X13)

90002-HA7-670

$4.24

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

WASHER, DRUM STOPPER

90417-360-000

$1.74

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
