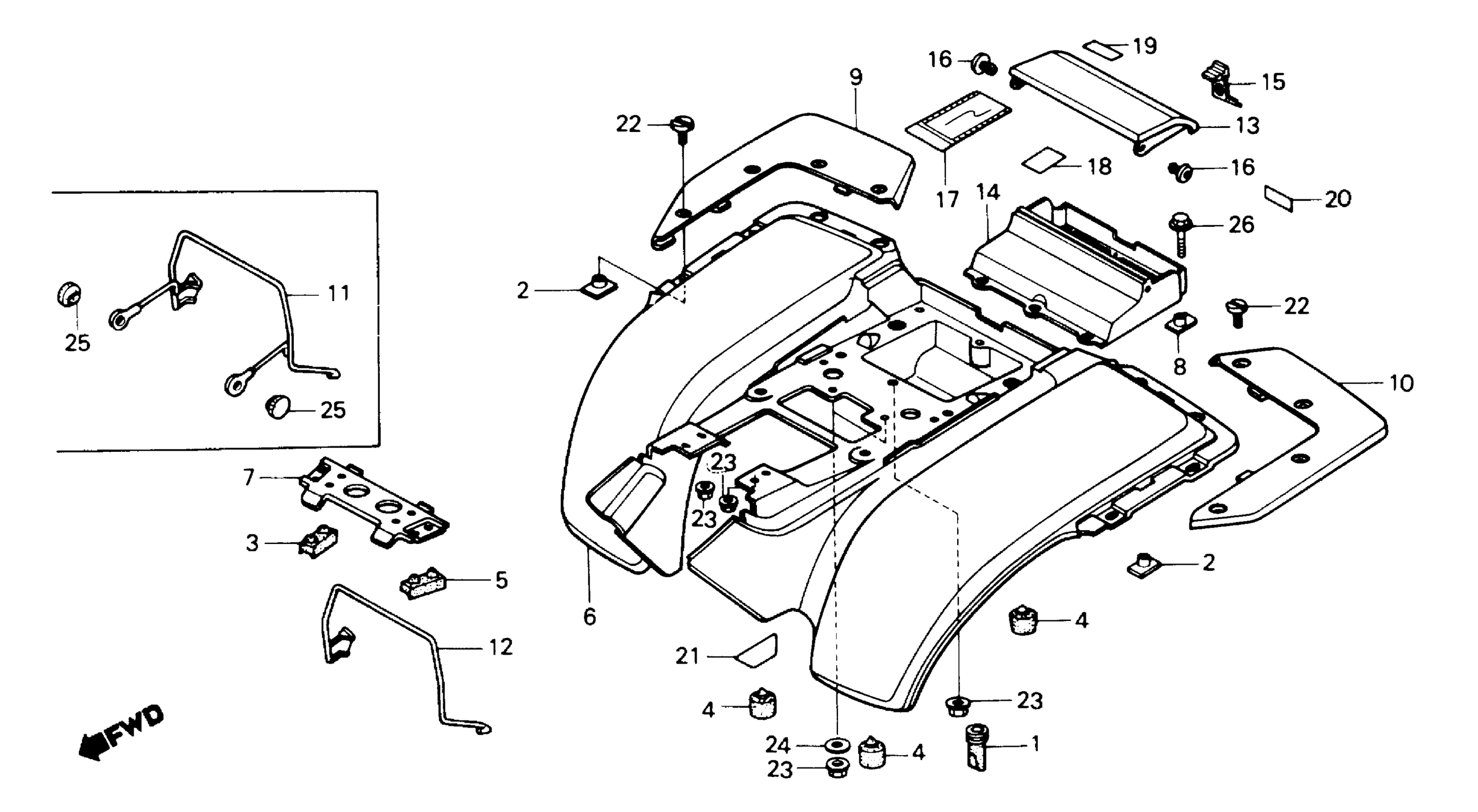

Honda ATC250SXA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-GM100011 TO JH3TE042-GM111920 REAR FENDER Diagram

TUBE, DRAIN

17358-VM4-000

$10.24

NUT, SPECIAL (6X7) | Use up to Frame SN GM108367

61304-958-003

$3.24

NUT, SPECIAL (6X7) | Use from Frame SN GM108368

90303-HA0-680

$3.85

RUBBER, R. FENDER SETTING (NOT AVAILABLE)

77204-HA6-000

Unavailable

RUBBER A, SEAT SETTING

77204-286-020

$10.02

RUBBER, L. FENDER SETTING (NOT AVAILABLE)

77205-HA6-000

Unavailable

FENDER, RR. *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 80100-HA6-680ZA.

80100-HA6-770ZB

Unavailable

CATCH, RR. FENDER (NOT AVAILABLE)

80101-HA6-680

Unavailable

NUT, RR. FENDER

80104-KJ2-000

$4.08

SPLASH GUARD, R. RR. (NOT AVAILABLE)

80111-HA6-003

Unavailable

SPLASH GUARD, L. RR. (NOT AVAILABLE)

80112-HA6-003

Unavailable

STAY, FENDER SUPPORT

80116-HA6-680

Unavailable

LID, TOOL BOX *R109* (PASSION RED) (NOT AVAILABLE)

80211-HA6-681ZA

Unavailable

COVER, TOOL BOX *R109* (PASSION RED) (NOT AVAILABLE)

80212-HA6-681ZA

Unavailable

BAND, TOOL BOX

80214-943-000

Unavailable

RIVET, TOOL BOX

80217-958-003

$2.23

BAG, OWNER'S MANUAL

83642-HA0-680

$10.97

SCREW, SPLASH GUARD

90103-VM4-003

$10.13

SCREW, SPLASH GUARD

90120-HA7-670

$10.13

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
