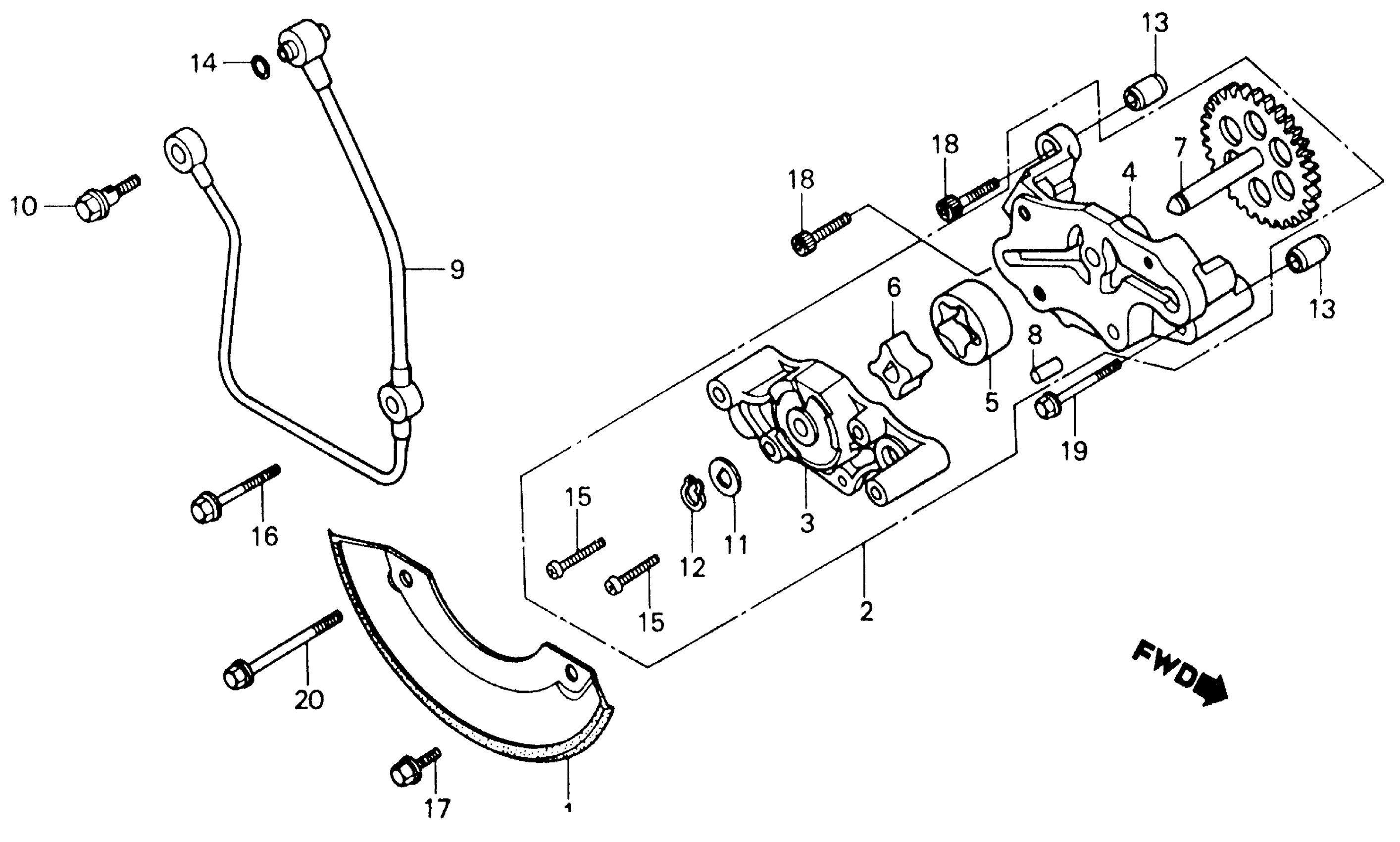

Honda ATC250SXA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-GM100011 TO JH3TE042-GM111920 OIL PUMP Diagram

#

Description
Price

1

PLATE, OIL SEPARATE (NOT AVAILABLE)

11140-HA0-000

Unavailable

2

PUMP ASSY., OIL This part replaces 15100-HA0-010.

15100-HA0-771

Unavailable

2

PUMP ASSY., OIL This part replaces 15100-HA0-770.

15100-HA0-771

Unavailable

2

PUMP ASSY., OIL

15100-HA0-771

Unavailable

3

BODY, OIL PUMP This part replaces 15111-HA0-000.

15111-HA0-010

Unavailable

3

BODY, OIL PUMP

15111-HA0-010

Unavailable

4

COVER, OIL PUMP This part replaces 15121-HA0-000.

15121-HA0-771

Unavailable

4

COVER, OIL PUMP This part replaces 15121-HA0-770.

15121-HA0-771

Unavailable

4

COVER, OIL PUMP

15121-HA0-771

Unavailable

5

ROTOR, OIL PUMP (OUTER)

15122-KF0-000

$27.48

6

ROTOR, OIL PUMP (INNER)

15123-KF0-000

$21.29

7

GEAR, OIL PUMP DRIVEN (30T)

15140-HA0-010

Unavailable

8

ROLLER (6X8)

15141-KF0-000

Unavailable

9

PIPE, OIL (NOT AVAILABLE) This part replaces 15510-HA0-000.

15510-HA0-010

Unavailable

10

BOLT, FLANGE (7X18.5)

15532-HA0-000

Unavailable

11

WASHER (8MM)

90465-HA0-000

Unavailable

12

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.77

13

PIN, DOWEL (8X10)

91103-429-000

$2.51

14

O-RING (8.2X1.5)

91308-MC7-000

$2.10

15

SCREW, PAN (5X22)

93500-05022-0A

$0.61

16

BOLT, FLANGE (6X35) | Use up to Engine SN 6043338 This part replaces 95800-06035-08.

95801-06035-08

$1.71

16

BOLT, FLANGE (6X35)

95801-06035-08

$1.71

17

BOLT, FLANGE (6X10) | Use up to Engine SN 6033467 This part replaces 96000-06010-00.

96001-06010-00

$1.48

17

BOLT, FLANGE (6X10) | Use up to Engine SN 6033467

96001-06010-00

$1.48

17

BOLT, FLANGE (6X12) | Use from Engine SN 6033468 This part replaces 96000-06012-00.

96001-06012-00

$1.64

17

BOLT, FLANGE (6X12) | Use from Engine SN 6033468

96001-06012-00

$1.64

18

BOLT, FLANGE (6X22) | Use up to Engine SN 6043338 This part replaces 96000-06022-00.

96001-06022-00

$1.13

18

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

19

BOLT, FLANGE (6X35) | Use up to Engine SN 6045553 This part replaces 96000-06035-00.

96001-06035-00

$1.28

19

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

20

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$1.97

20

BOLT, FLANGE (6X40)

96001-06040-00

$1.97
