- Partiron
- OEM Parts
- Honda
- ALL-TERRAIN VEHICLE
- 1985
- ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972
TAILLIGHT + TOOL BOX

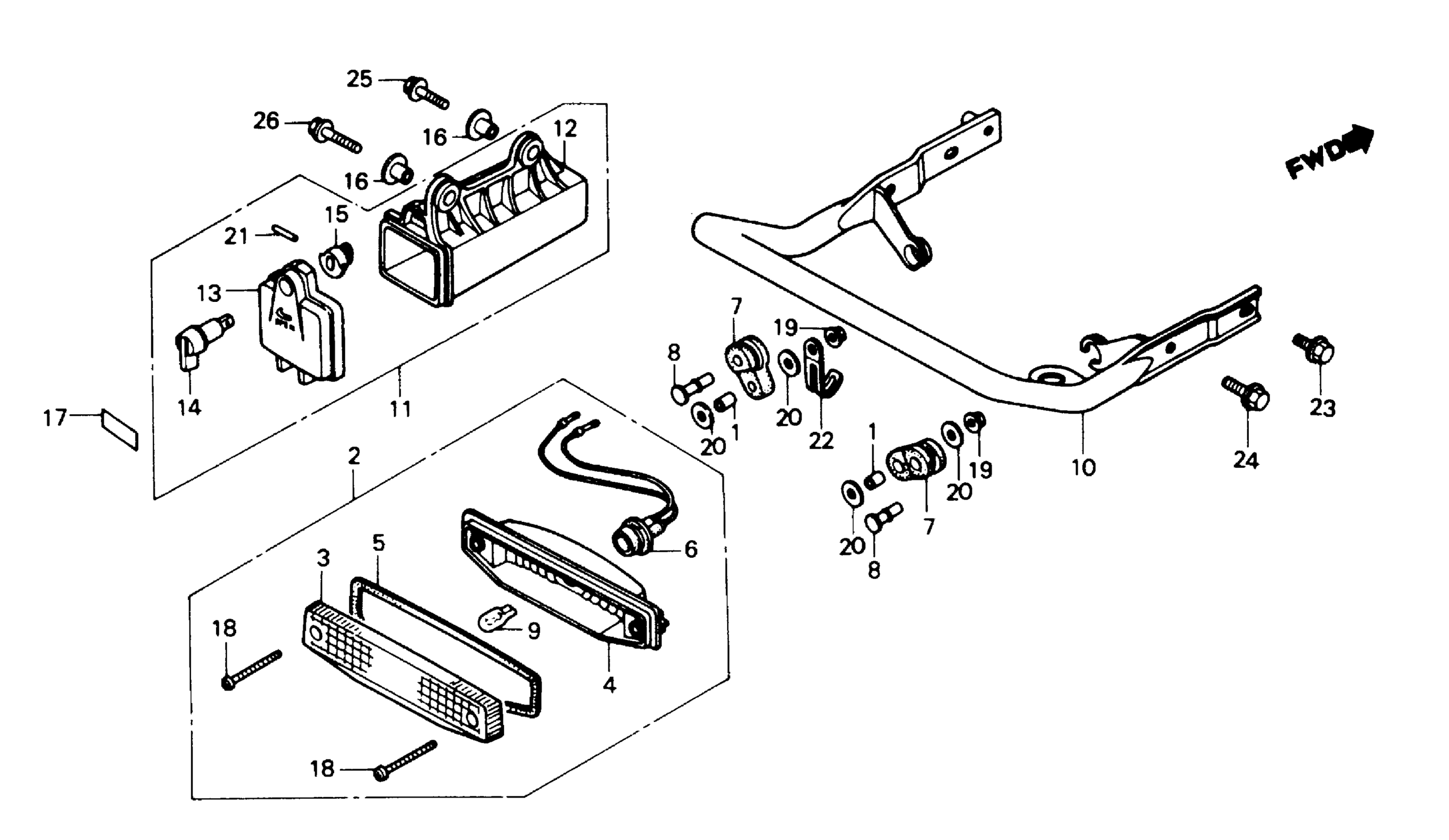

Honda ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972 TAILLIGHT + TOOL BOX Diagram
#
Description
Price
1
COLLAR
17207-MC7-000
Unavailable
2
TAILLIGHT ASSY. (NOT AVAILABLE)
33700-HA6-003
Unavailable
3
LENS, TAILLIGHT (NOT AVAILABLE)
33702-HA6-003
Unavailable
4
BASE, TAILLIGHT
33703-HA6-003
Unavailable
5
GASKET (NOT AVAILABLE)
33704-HA6-003
Unavailable
6
SOCKET, TAILLIGHT (NOT AVAILABLE)
33705-HA6-003
Unavailable
10
PIPE, CARRIER (NOT AVAILABLE) This part replaces 81200-HA6-000.
81200-HA6-680
Unavailable
11
BOX ASSY., TOOL
83500-HA6-000
Unavailable
12
BOX, TOOL
83501-HA6-000
Unavailable
13
CAP, TOOL BOX
83504-968-000
Unavailable
14
BODY, KNOB
83507-965-000
Unavailable
15
STOPPER, KEY BODY
83508-965-000
Unavailable
16
COLLAR, TOOL BOX
83515-HA6-000
Unavailable
18
SCREW, PAN (4X40) This part replaces 90121-HA6-003.
93500-04040-0A
Unavailable
18
SCREW, PAN (4X40)
93500-04040-0A
Unavailable
19
NUT, TAILLIGHT SETTING (NOT AVAILABLE) | Use from Frame SN FM054814
90310-HA6-000
Unavailable
23
BOLT, FLANGE (8X12) | Use up to Frame SN FM053002 This part replaces 95700-08012-00.
95701-08012-00
$1.49
23
BOLT, FLANGE (8X16) | Use from Frame SN FM053003 This part replaces 95700-08016-00.
95701-08016-00
$1.80
