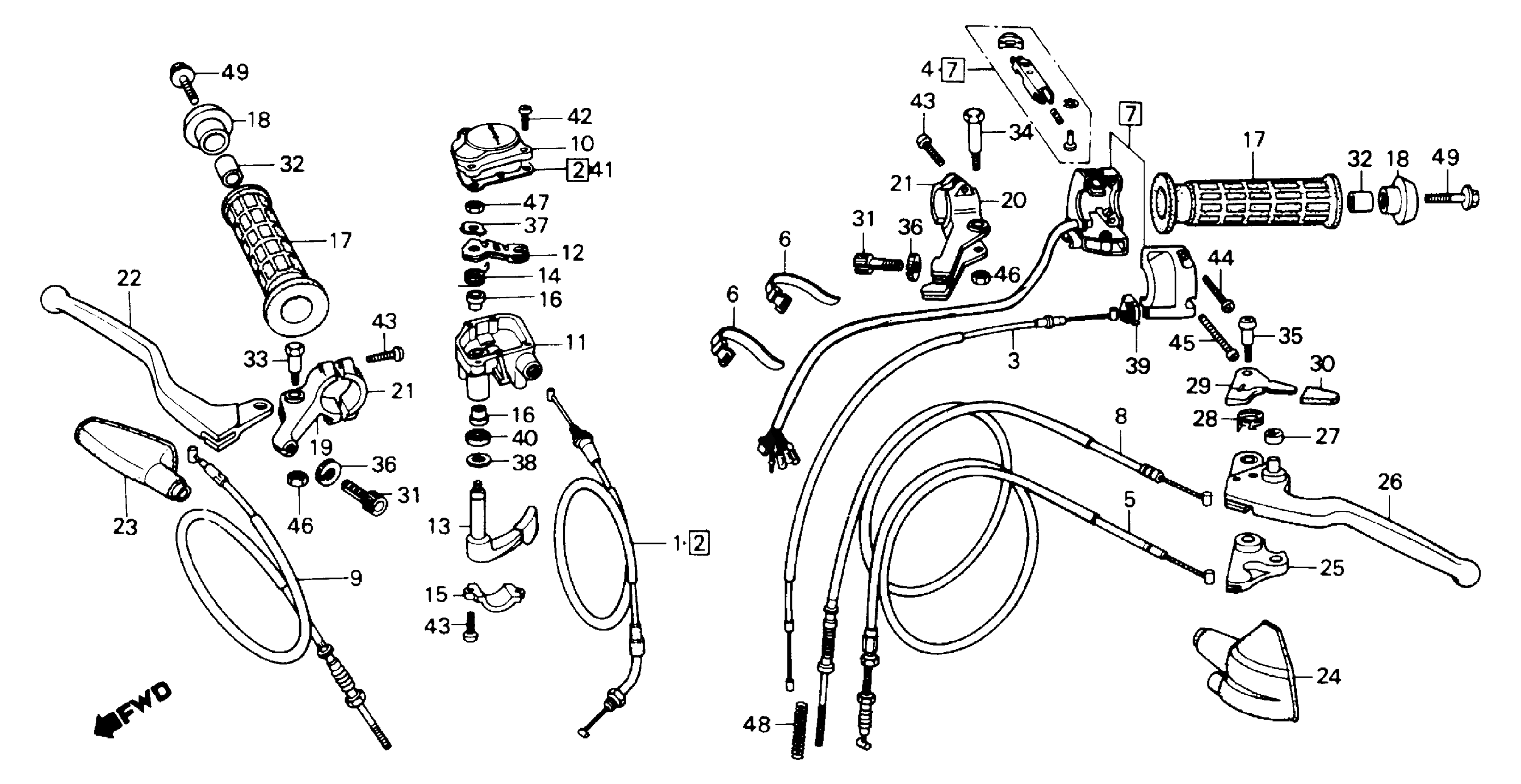

Honda ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972 SWITCH + HANDLE LEVER + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE This part replaces 17910-HA6-000.

17910-HA6-680

Unavailable

1

CABLE, THROTTLE

17910-HA6-680

Unavailable

3

CABLE, CHOKE

17950-HA6-000

Unavailable

4

LEVER, CHOKE (NOT AVAILABLE)

17962-HA6-305

Unavailable

5

CABLE, REVERSE ASSIST This part replaces 22880-HA6-000.

22880-HA6-680

Unavailable

5

CABLE, REVERSE ASSIST

22880-HA6-680

Unavailable

6

BAND B1, CABLE

32161-404-000

$2.23

7

SWITCH ASSY., LIGHTING ENGINE | Use up to Frame SN FM053002 This part replaces 35200-HA6-003.

35200-HA6-013

Unavailable

7

SWITCH ASSY., LIGHTING ENGINE

35200-HA6-013

Unavailable

8

CABLE, BRAKE

43460-HA0-405

Unavailable

8

CABLE, BRAKE This part replaces 43460-HA6-000.

43460-HA0-405

Unavailable

9

CABLE, FR. BRAKE

45450-HA6-000

Unavailable

10

COVER, THROTTLE CASE (NA USE ALT:04005-HA0-000)

53141-HA0-000

Unavailable

11

CASE, THROTTLE LEVER (NA USE ALT:04005-HA0-000)

53142-HA0-000

Unavailable

12

ARM, THROTTLE This part replaces 53144-HA0-000.

53144-HA0-010

$7.72

12

ARM, THROTTLE

53144-HA0-010

$7.72

13

LEVER, THROTTLE This part replaces 53145-HA0-000.

53145-HA0-770

$24.05

13

LEVER, THROTTLE

53145-HA0-770

$24.05

14

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

15

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

17

GRIP, HANDLE

53165-958-010

$13.38

18

GUARD, HANDLEBAR END

53167-958-680

$6.40

19

BRACKET, R. HANDLE LEVER

53171-HA6-000

Unavailable

20

BRACKET, BRAKE LEVER

53172-HA6-000

Unavailable

21

HOLDER, LEVER BRACKET

53173-376-000

$10.95

22

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-HA6-000

Unavailable

23

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-VM6-000

Unavailable

24

COVER, L. HANDLEBAR (NOT AVAILABLE)

53177-VM6-000

Unavailable

25

ARM, REVERSE ASSIST

53179-HA6-000

$15.17

26

LEVER, RR. BRAKE

53180-HA6-000

Unavailable

27

CAP, REVERSE PIN

53187-VM6-000

$3.89

28

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

29

LEVER, PARKING BRAKE LOCK This part replaces 53192-HA6-000.

53192-HA8-771

$11.52

29

LEVER, PARKING BRAKE LOCK This part replaces 53192-HA8-770.

53192-HA8-771

$11.52

29

LEVER, PARKING LOCK

53192-HA8-771

$11.52

30

CAP, PARKING LEVER This part replaces 53193-VM6-000.

53193-HA0-770

$6.16

30

CAP, PARKING LEVER

53193-HA0-770

$6.16

31

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

32

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

33

BOLT, HANDLE LEVER PIVOT

90113-HA6-000

Unavailable

34

BOLT, HANDLE LEVER PIVOT

90114-HA6-000

Unavailable

35

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

36

NUT, FIXING

90321-315-670

$7.31

36

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

37

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

38

WASHER (9X20)

90504-HA0-000

$2.28

40

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

40

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

41

GASKET, THROTTLE CASE This part replaces 91532-HA0-000.

91532-HA0-020

$6.16

41

GASKET, THROTTLE CASE This part replaces 91532-HA0-010.

91532-HA0-020

$6.16

41

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

42

SCREW, PAN (4X12)

93500-04012-0G

$1.49

43

SCREW, PAN (5X18)

93500-05018-0G

$1.49

44

SCREW, PAN (5X25)

93500-05025-0G

$1.49

45

SCREW, PAN (5X35)

93500-05035-0G

$1.49

46

NUT, HEX. (6MM)

94001-06070-0S

$1.49

47

NUT, HEX. (6MM)

94002-06000-0S

$1.49

48

SPRING, RR. BRAKE ROD | Use from Frame SN FM050253

43467-HA0-000

Unavailable

48

SPRING A, BRAKE ROD | Use up to Frame SN FM050252

95014-73100

$1.49

49

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

49

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
