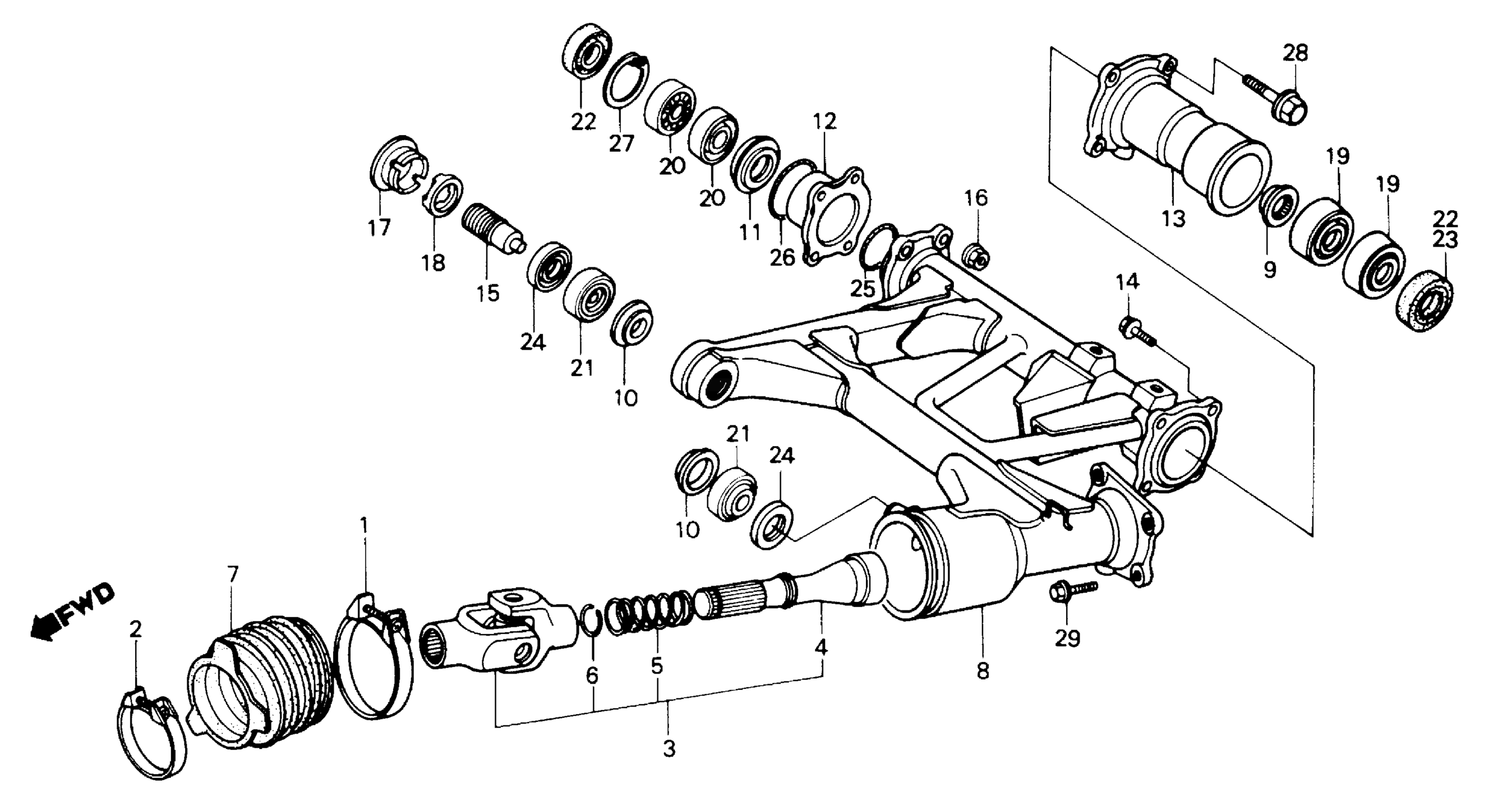

Honda ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972 SWINGARM + PROPELLER SHAFT 85 Diagram

#

Description
Price

1

BAND, AIR CLEANER CONNECTING TUBE (86) | Use up to Frame SN FM052302 This part replaces 17256-HA0-000.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 17256-HA0-010.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 17256-HA0-680.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 90652-GHB-860.

95018-86250

Unavailable

1

BAND ASSY., BOOT JOINT (83MM)

95018-86250

Unavailable

2

BAND ASSY., BOOT JOINT (75MM) (NOT AVAILABLE) | Use up to Frame SN FM052302 This part replaces 17258-HA0-000.

17258-HA0-680

$6.94

2

BAND ASSY., BOOT JOINT (75MM) (NOT AVAILABLE) | Use from Frame SN FM052303 This part replaces 17258-HA0-010.

17258-HA0-680

$6.94

3

JOINT, YOKE (NOT AVAILABLE) | Use up to Frame SN FM042366 This part replaces 40200-HA6-003.

40200-HA6-681

Unavailable

3

JOINT, YOKE (NOT AVAILABLE) | Use from Frame SN FM042367 This part replaces 40200-HA6-013.

40200-HA6-681

Unavailable

4

SHAFT, PROPELLER (NOT AVAILABLE) | Use up to Frame SN FM042366 This part replaces 40201-HA6-000.

40201-HA6-010

Unavailable

4

SHAFT, PROPELLER (NOT AVAILABLE) | Use from Frame SN FM042367

40201-HA6-010

Unavailable

4

JOINT, YOKE

40210-HA6-681

Unavailable

5

SPRING, SHAFT (NOT AVAILABLE)

40215-HA6-000

Unavailable

6

RING, SPRING STOPPER (NOT AVAILABLE)

40218-HA6-000

Unavailable

7

BOOT, JOINT

52101-HA8-680

$26.44

7

BOOT, JOINT | Use up to Frame SN FM052302 This part replaces 52105-HA6-000.

52101-HA8-680

$26.44

7

BOOT, JOINT This part replaces 52105-HA6-010.

52101-HA8-680

$26.44

8

SWINGARM, RR. (NOT AVAILABLE)

52110-HA6-000

Unavailable

9

STOPPER, BEARING

52112-HA0-000

$16.79

10

HOLDER, RR. SWINGARM GREASE

52112-MA1-300

$7.04

11

STOPPER, R. BEARING

52113-HA0-000

Unavailable

12

HOLDER, BEARING

52114-HA0-000

Unavailable

13

PIPE, L. HOUSING | Use up to Frame SN FM053122

52120-HA6-000

Unavailable

13

PIPE, L. HOUSING (NOT AVAILABLE) | Use from Frame SN FM053123

52120-HA8-000

Unavailable

14

BOLT, SPECIAL (10MM) | Use up to Frame SN FM044707

90038-ME9-000

$4.72

14

BOLT, SPECIAL (10MM) (NOT AVAILABLE) | Use from Frame SN FM044708 This part replaces 90105-HA0-000.

90109-HA0-681

Unavailable

14

BOLT, SPECIAL (10MM) (NOT AVAILABLE) | Use from Frame SN FM044708 This part replaces 90105-HA0-010.

90109-HA0-681

Unavailable

15

BOLT, R. SWINGARM PIVOT | Use from Frame SN FM035850

90121-HA6-000

Unavailable

15

BOLT, R. RR. SWINGARM PIVOT | Use up to Frame SN FM035849

90121-MB0-000

Unavailable

16

NUT, U (10MM)

90304-GE8-003

$3.67

17

CAP, LOCK NUT | Use from Frame SN FM043235

90312-HA0-000

$11.72

17

CAP, R. LOCK NUT | Use up to Frame SN FM043234

90312-MB0-700

$18.22

18

NUT, RR. SWINGARM PIVOT

90355-469-000

$17.54

19

BEARING, RADIAL BALL (32X58X13)

91055-HA0-003

Unavailable

20

BEARING, RADIAL BALL

91057-HA0-000

$36.77

21

BEARING (30203J) This part replaces 91066-MC7-003.

91066-MC7-004

Unavailable

21

BEARING (30203J)

91066-MC7-004

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use from Frame SN FM052303

91254-HA0-003

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use up to Frame SN FM052302

91254-HA0-003

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use up to Frame SN FM052302 This part replaces 91254-HA0-004.

91254-HA0-003

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use from Frame SN FM052303 This part replaces 91254-HA0-004.

91254-HA0-003

Unavailable

23

DUST SEAL (42X58X11) | Use from Frame SN FM052303

91255-HA0-003

Unavailable

24

DUST SEAL (26X40X5)

91268-463-003

$6.61

25

O-RING (54X2)

91307-MB0-003

$3.23

26

O-RING (68X2)

91304-MN4-004

Unavailable

26

O-RING (68X2) (NOT AVAILABLE) This part replaces 91358-HA0-003.

91304-MN4-004

Unavailable

27

CIRCLIP (INNER) (58MM)

94520-58000

$3.13

28

BOLT, FLANGE (8X25) | Use from Frame SN FM044708

95701-08025-00

$1.79

28

BOLT, FLANGE (8X25) | Use up to Frame SN FM044707

95701-08025-08

$1.49

28

BOLT, FLANGE (8X25) | Use from Frame SN FM044708 This part replaces 95800-08025-00.

95701-08025-00

$1.79

28

BOLT, FLANGE (8X25) | Use up to Frame SN FM044707 This part replaces 95800-08025-08.

95701-08025-08

$1.49

28

BOLT, FLANGE (8X25) | Use from Frame SN FM044708 This part replaces 95801-08025-00.

95701-08025-00

$1.79

28

BOLT, FLANGE (8X25) | Use up to Frame SN FM044707 This part replaces 95801-08025-08.

95701-08025-08

$1.49

29

BOLT, FLANGE (8X28)

95801-08028-08

$2.19

29

BOLT, FLANGE (8X28) This part replaces 95822-08028-08.

95801-08028-08

$2.19
