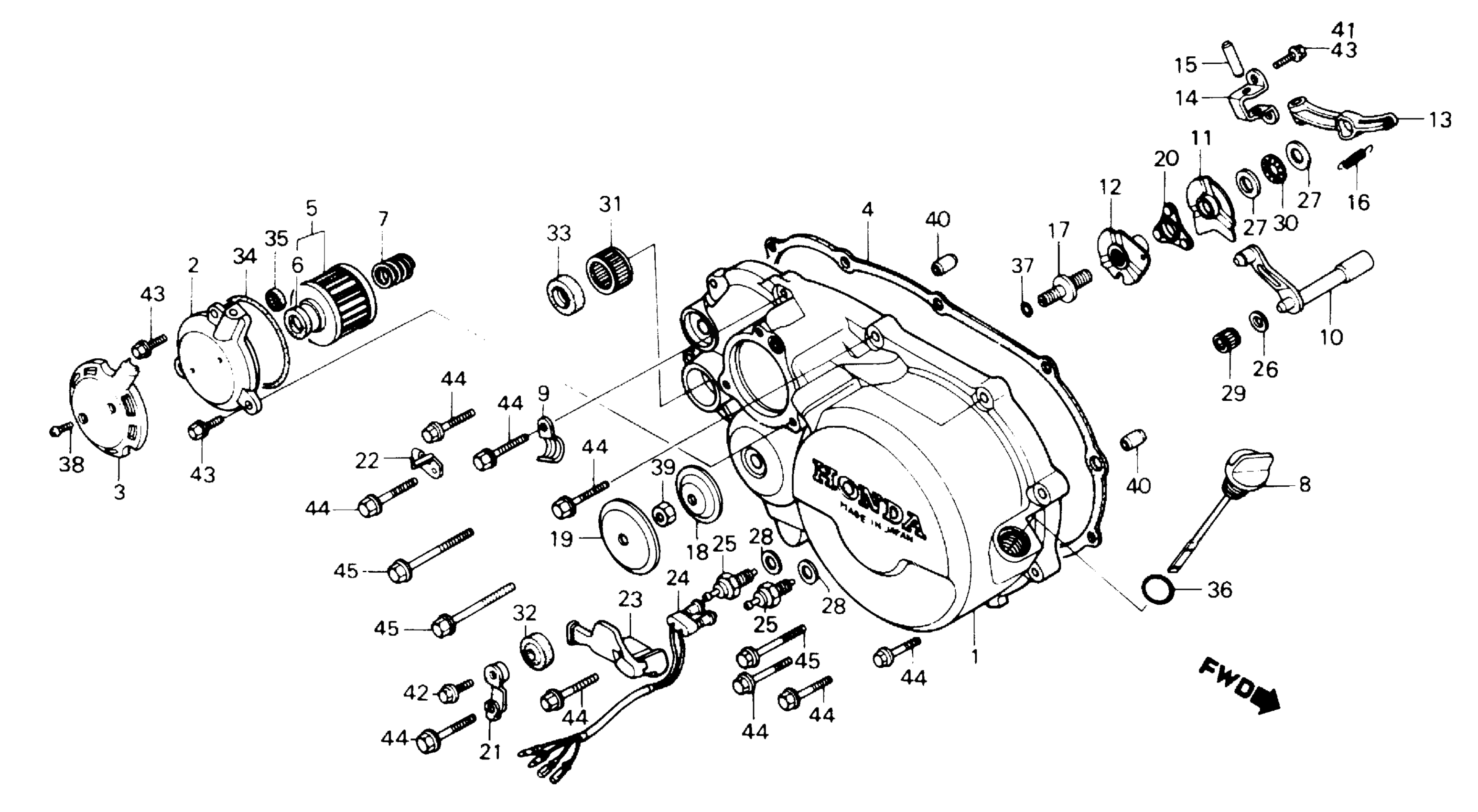

Honda ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-HA6-000.

11330-HA6-770

Unavailable

1

COVER, R. CRANKCASE

11330-HA6-770

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

11333-HA6-000

Unavailable

3

PROTECTOR, OIL FILTER COVER

11334-HA0-000

Unavailable

4

GASKET, R. CRANKCASE COVER This part replaces 11394-HA0-000.

11394-HA0-306

$24.79

4

GASKET, R. CRANKCASE COVER

11394-HA0-306

$24.79

5

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

5

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

5

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.54

6

RUBBER, FILTER

15413-MC8-000

$3.35

7

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

8

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-HA6-000.

15650-HA6-680

Unavailable

9

CLIP, AIR VENT TUBE (NOT AVAILABLE)

17215-393-780

Unavailable

10

LIFTER SET, CLUTCH This part replaces 22810-HA0-000.

22800-HA0-680

Unavailable

11

LIFTER SET, CLUTCH This part replaces 22821-HA0-300.

22800-HA0-680

Unavailable

12

LIFTER SET, CLUTCH This part replaces 22830-HA0-000.

22800-HA0-680

Unavailable

13

ARM, CLUTCH

22835-HA0-000

Unavailable

14

STAY, CLUTCH ARM

22836-HA0-000

Unavailable

15

SHAFT, CLUTCH ARM

22837-HA0-000

Unavailable

16

SPRING, CLUTCH ARM

22839-HA0-000

Unavailable

17

BOLT, CLUTCH ADJUSTING

22841-HA0-000

Unavailable

18

RETAINER, CLUTCH

22842-HA0-000

Unavailable

19

CAP, CLUTCH ADJUSTING

22850-HA0-000

Unavailable

20

RETAINER, BALL

22860-HA0-000

Unavailable

21

LEVER, REVERSE STOPPER (NOT AVAILABLE)

24865-HA0-000

Unavailable

22

HOLDER, REVERSE STOPPER WIRE | Use up to Engine SN 5089595 This part replaces 24871-HA0-000.

24871-HA0-010

Unavailable

22

HOLDER, REVERSE STOPPER WIRE

24871-HA0-010

Unavailable

23

COVER, HARNESS (NOT AVAILABLE)

24880-HA0-000

Unavailable

24

SUB-WIRE, CHANGE SWITCH This part replaces 32410-HA0-000.

32410-HA0-010

Unavailable

24

SUB-WIRE, CHANGE SWITCH

32410-HA0-010

Unavailable

25

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-KE8-000.

35600-KE8-003

$18.90

25

SWITCH ASSY., NEUTRAL

35600-KE8-003

$18.90

26

WASHER (9MM)

90405-HA0-000

Unavailable

27

WASHER, THRUST (14MM)

90417-HA0-000

$3.67

28

WASHER, OIL BOLT

90545-300-000

$3.99

29

BEARING, NEEDLE (9MM)

91006-HA0-003

$13.32

30

BEARING, THRUST NEEDLE (15MM)

91062-HA0-003

Unavailable

31

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

32

OIL SEAL (12X22X5)

91201-965-000

$4.06

32

OIL SEAL (12X22X5) | Use up to Engine SN 5153742 This part replaces 91203-MC8-003.

91201-965-000

$4.06

33

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

34

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

35

O-RING (11X1.9) (NOK) This part replaces 91301-671-671.

91303-HA0-004

$2.13

35

O-RING (11X1.9) (ARAI)

91303-HA0-000

Unavailable

35

O-RING (11X1.9) (NOK) This part replaces 91303-HA0-003.

91303-HA0-004

$2.13

35

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

36

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

37

O-RING (8.2X1.5)

91308-MC7-000

$2.31

38

SCREW, TAPPING (4X12) | Use from Engine SN 5139334

90017-HA0-000

$2.59

38

SCREW, TAPPING (4X12) | Use up to Engine SN 5139333

93901-24320

$1.49

39

NUT, HEX. (8MM)

94031-08000

$1.49

40

PIN A, DOWEL (8X14)

94301-08140

$2.25

42

BOLT, FLANGE (6X12) This part replaces 93493-06012-07.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12) This part replaces 95700-06012.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12) This part replaces 95700-06012-10.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12) This part replaces 95800-06012.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12) This part replaces 95800-06012-00.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12) This part replaces 95900-06012-00.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12) This part replaces 95900-06012-02.

95701-06012-00

$1.62

43

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

43

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

44

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

44

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

45

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

45

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
