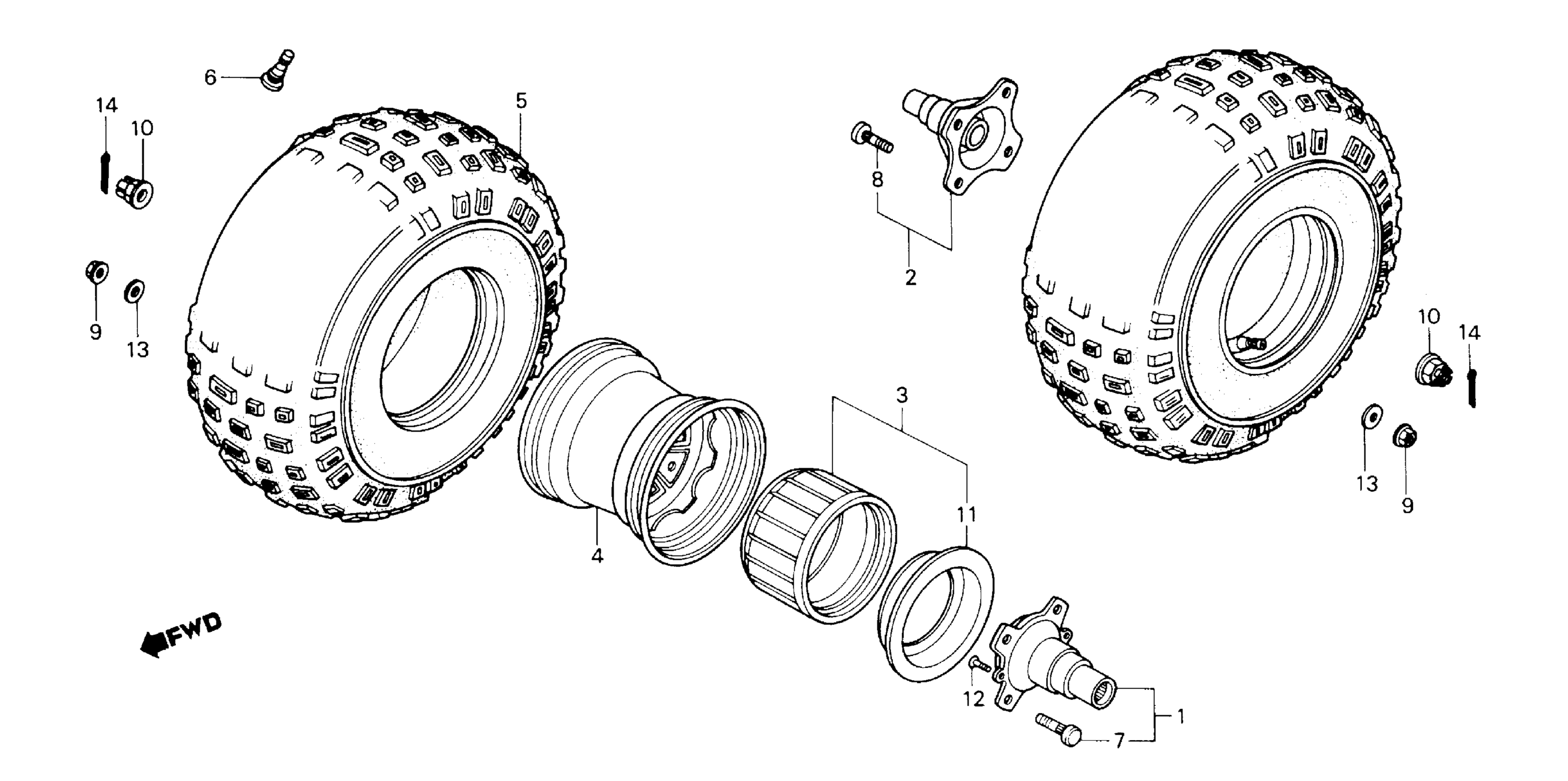

Honda ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972 REAR WHEEL 85 Diagram

HUB, R. RR.

42610-HA0-000

Unavailable

HUB, L. RR.

42620-HA0-000

Unavailable

RING ASSY., BRAKE DRUM (NOT AVAILABLE)

42623-HA0-000

Unavailable

RIM, WHEEL (NOT AVAILABLE)

42710-HA6-000

Unavailable

TIRE, WHEEL (22X11.0-8) This part replaces 42750-HA6-003.

42750-HA6-681AT

Unavailable

TIRE, WHEEL (22X11.0-8) This part replaces 42750-HA6-681.

42750-HA6-681AT

Unavailable

TIRE, WHEEL (22X11.0-8)

42750-HA6-681AT

Unavailable

VALVE, RIM

42753-VM0-003

$10.30

BOLT, WHEEL (10X33)

90103-HA0-300

$7.88

BOLT, WHEEL (10X25)

90104-HA0-300

Unavailable

NUT, U (10MM)

90304-GE8-003

$3.67

NUT, AXLE (20MM) This part replaces 90305-HA0-000.

90305-HA5-670

$19.89

NUT, AXLE (20MM)

90305-HA5-670

$19.89

DUST SEAL (26X40X6) (NOT AVAILABLE)

91263-HA0-000

Unavailable

SCREW, FLAT (6X16)

93600-06016-0H

$1.49

WASHER, FLAT (10MM)

94103-10000

$1.49

PIN, COTTER (4.0X30)

94201-40300

$1.49
