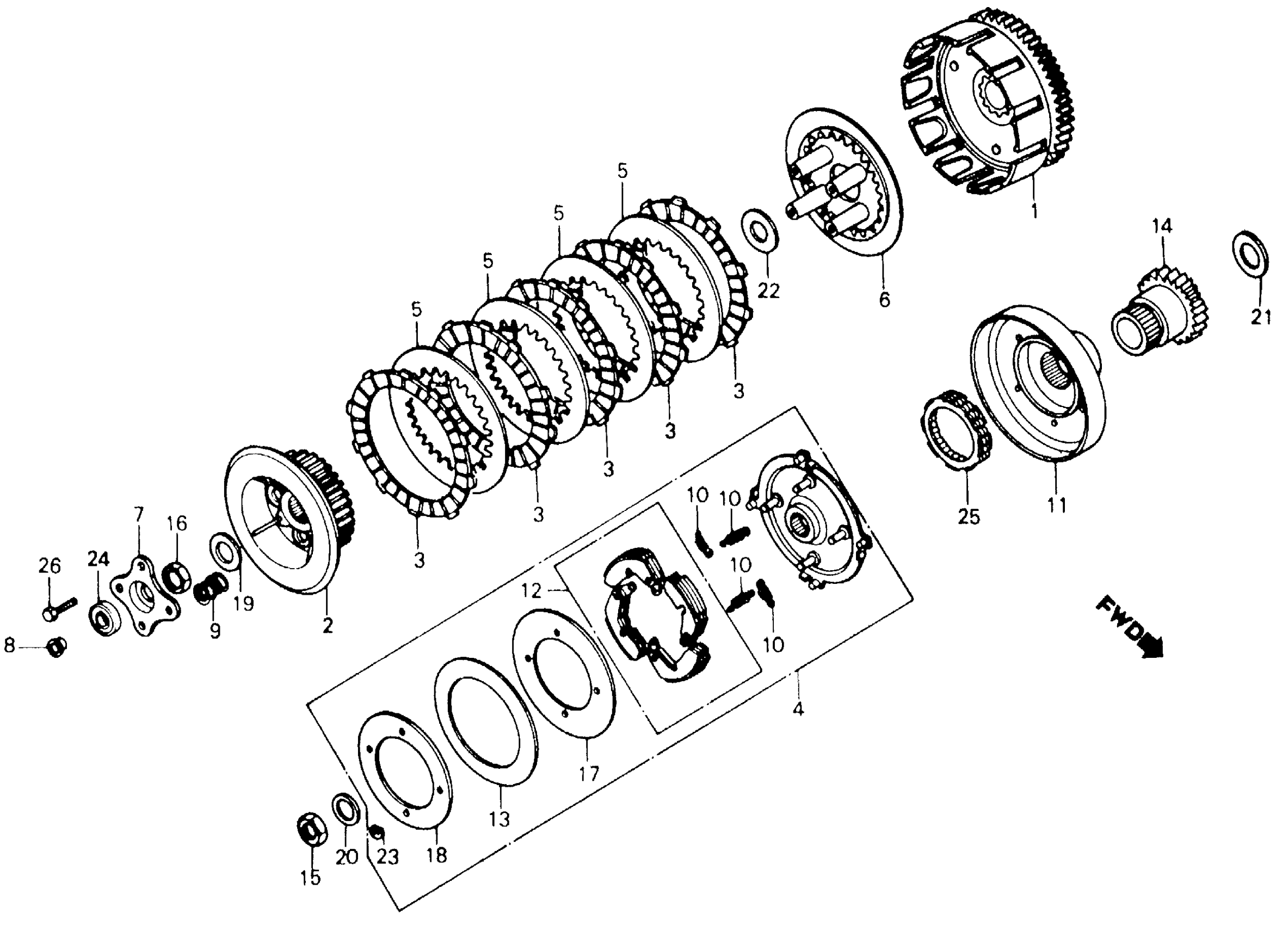

Honda ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-HA0-000.

22100-HA0-770

Unavailable

2

CENTER, CLUTCH (NOT AVAILABLE)

22120-HA0-000

Unavailable

3

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

3

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

4

PLATE, DRIVE | Use up to Engine SN 5037435 This part replaces 22300-HA0-000.

22300-HA0-405

Unavailable

4

PLATE, DRIVE | Use from Engine SN 5037436 to 5153072 This part replaces 22300-HA0-010.

22300-HA0-405

Unavailable

4

PLATE ASSY., DRIVE | Use from Engine SN 5153073 This part replaces 22300-HA0-020.

22300-HA0-406

Unavailable

5

PLATE, CLUTCH This part replaces 22321-KF0-000.

22321-KF0-770

$14.92

5

PLATE, CLUTCH

22321-KF0-770

$14.92

6

PLATE, CLUTCH PRESSURE

22351-HA0-010

Unavailable

7

CAP, CLUTCH LIFTER (NOT AVAILABLE) | Use up to Engine SN 5037892 This part replaces 22366-HA0-000.

22366-HA0-010

Unavailable

7

CAP, CLUTCH LIFTER

22366-HA0-010

Unavailable

8

PIECE, CLUTCH LIFTER

22367-HA0-003

Unavailable

9

SPRING, CLUTCH

22401-HA0-000

Unavailable

10

SPRING, CLUTCH DRIVE This part replaces 22451-HA0-000.

22451-HA0-020

Unavailable

10

SPRING, CLUTCH DRIVE This part replaces 22451-HA0-010.

22451-HA0-020

Unavailable

10

SPRING, CLUTCH DRIVE

22451-HA0-020

Unavailable

11

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 5037435 This part replaces 22500-HA0-000.

22500-HA0-010

Unavailable

11

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 5037436

22500-HA0-010

Unavailable

12

WEIGHT SET, CLUTCH This part replaces 22535-HA0-305.

22535-HA0-405

Unavailable

12

WEIGHT SET, CLUTCH

22535-HA0-405

Unavailable

13

SPRING, CONDENSER DISK This part replaces 22714-HA0-000.

22714-HA0-010

Unavailable

13

SPRING, CONDENSER DISK

22714-HA0-010

Unavailable

14

GEAR, DRIVE (27T) (NOT AVAILABLE) | Use up to Engine SN 5153072

23120-HA6-000

Unavailable

14

GEAR, DRIVE (27T) (NOT AVAILABLE) | Use from Engine SN 5153073

23120-HA6-010

Unavailable

15

NUT, LOCK (20MM) This part replaces 90235-HA0-000.

90235-HA0-680

$11.54

15

NUT, LOCK (20MM)

90235-HA0-680

$11.54

16

NUT (18MM) | Use up to Engine SN 5153836

90235-KA4-000

$11.09

16

NUT, LOCK (18MM) | Use from Engine SN 5153837

90236-HA0-000

$10.45

17

WASHER (64X122X10)

90406-HA0-000

Unavailable

18

WASHER (64X105X1.6) (NOT AVAILABLE)

90407-HA0-000

Unavailable

19

WASHER, LOCK

90432-KF0-000

$9.63

20

WASHER, SPRING (20MM)

90432-426-000

$9.98

21

WASHER, THRUST (27X40) | Use from Engine SN 5153073 This part replaces 90457-HA0-000.

90457-HC4-000

Unavailable

21

WASHER, THRUST (27X40) | Use from Engine SN 5153073

90457-HC4-000

Unavailable

21

WASHER, THRUST (24X36) | Use up to Engine SN 5153072

90457-KA4-700

Unavailable

22

WASHER, THRUST (22X45X0.8)

90458-KE8-000

$3.97

23

CIRCLIP (7MM)

90605-166-720

$1.80

24

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

24

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

24

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

24

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

25

CLUTCH, ONE-WAY This part replaces 91101-HA0-003.

91101-HA0-004

$119.68

25

CLUTCH, ONE-WAY

91101-HA0-004

$119.68

26

BOLT, HEX. (6X25) | Use up to Engine SN 5056355 This part replaces 92022-06025.

92025-06025-0A

$1.49

26

BOLT, HEX. (6X28) (NOT AVAILABLE) | Use from Engine SN 5056356 This part replaces 92022-06028.

92028-06028-0A

Unavailable

26

BOLT, HEX. (6X25) | Use up to Engine SN 5056355

92025-06025-0A

$1.49
