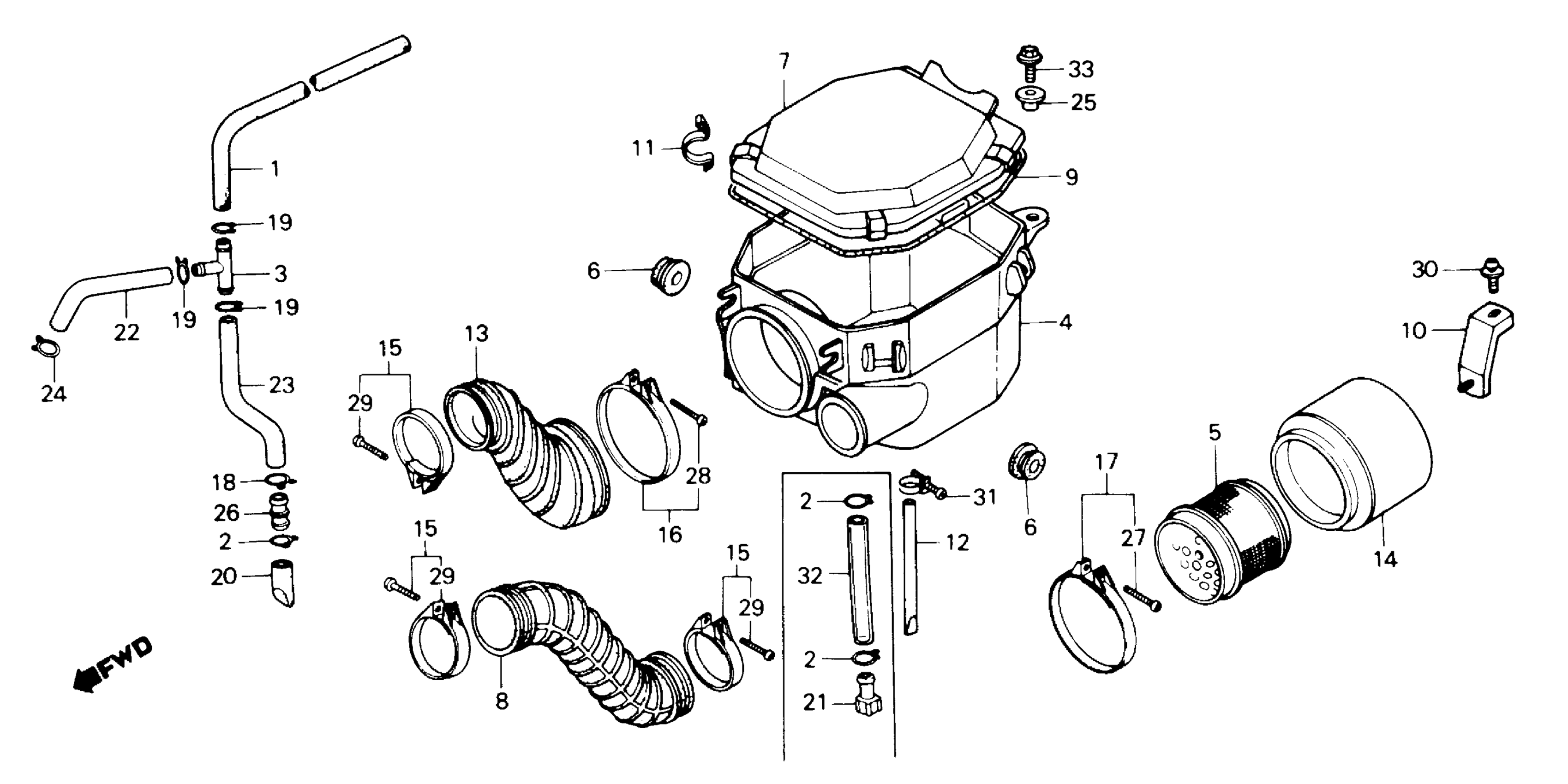

Honda ATC250SXA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE042-FM000006 TO JH3TE042-FM056972 AIR CLEANER Diagram

#

Description
Price

1

TUBE B, BREATHER (NOT AVAILABLE)

15762-HA6-000

Unavailable

2

CLIP, BREATHER TUBE | Use up to Frame SN FM053122

15772-292-010

$2.80

2

CLIP, BREATHER TUBE | Use from Frame SN FM053123

15772-292-010

$2.80

3

JOINT, BREATHER THREE-WAY

15772-376-000

$17.75

4

HOUSING, AIR CLEANER (NOT AVAILABLE) This part replaces 17210-HA6-000.

17210-HA8-770

Unavailable

5

BODY, AIR CLEANER (NOT AVAILABLE) This part replaces 17211-HA6-003.

17211-HA8-770

Unavailable

6

RUBBER, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17216-965-000

Unavailable

7

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17217-HA6-000

Unavailable

8

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17218-HA6-000

Unavailable

9

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.55

9

SEAL, AIR CLEANER COVER This part replaces 17219-HA6-000.

17219-HA2-405

$5.55

10

STAY, AIR CLEANER ELEMENT

17221-HA6-000

Unavailable

11

SPRING, AIR CLEANER HOUSING LID

17223-965-003

$6.38

12

TUBE, VINYL (11X15X180) (NOT AVAILABLE) | Use from Frame SN FM053123

17224-HA0-000

Unavailable

13

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE) This part replaces 17253-HA6-000.

17253-HA6-010

Unavailable

14

ELEMENT, AIR CLEANER

17254-964-003

$21.57

15

BAND, AIR CLEANER CONNECTING TUBE (60) | Use up to Frame SN FM050872 This part replaces 17256-358-000.

95018-60250

$5.81

15

BAND, AIR CLEANER CONNECTING TUBE (60) | Use up to Frame SN FM050872 This part replaces 17256-425-010.

95018-60250

$5.81

15

BAND, AIR CLEANER CONNECTING TUBE (60) | Use from Frame SN FM050873 This part replaces 17257-HA0-000.

95018-60250

$5.81

16

BAND, CONNECTING TUBE (NOT AVAILABLE)

17256-964-000

Unavailable

17

BAND, AIR CLEANER

17257-HB5-000

$12.58

17

BAND, AIR CLEANER This part replaces 17257-360-700.

17257-HB5-000

$12.58

18

CLIP, BREATHER TUBE

17316-HA0-000

$4.32

19

CLIP, BREATHER TUBE

17316-611-000

$8.28

20

TUBE, DRAIN

17358-170-000

$3.49

21

PLUG, BREATHER TUBE | Use up to Frame SN FM053122

17370-382-870

$3.49

22

TUBE, BREATHER (UPPER) (NOT AVAILABLE)

17562-965-000

Unavailable

23

TUBE, BREATHER (LOWER) | Use up to Frame SN FM047253

17563-965-000

Unavailable

23

BULK HOSE, VACUUM (12X1000) (12X230) | Use from Frame SN FM047254

95005-12001-20M

Unavailable

24

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

25

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.77

26

JOINT, TUBE

91463-393-780

$1.64

27

SCREW, PAN (4X20)

93500-04020-0A

$0.75

28

SCREW, PAN (4X20)

93500-04020-0H

$0.91

29

SCREW, PAN (4X25)

93500-04025-0G

$0.59

30

SCREW-WASHER (6X12)

93891-06012-08

$1.12

31

CLIP, TUBE (A16) | Use from Frame SN FM053123

95002-01160

$3.76

32

TUBE, VINYL (11X15X180) (NOT AVAILABLE) | Use up to Frame SN FM053122 This part replaces 95003-37018-31.

17224-HA0-000

Unavailable

33

BOLT, FLANGE (6X12) | Use up to Frame SN FM050253 This part replaces 95700-06012-00.

95701-06012-00

$1.81

33

BOLT, FLANGE (6X14) | Use from Frame SN FM050254 This part replaces 95700-06014-00.

95701-06014-00

$0.91

33

BOLT, FLANGE (6X12) | Use up to Frame SN FM050253

95701-06012-00

$1.81

33

BOLT, FLANGE (6X14) | Use from Frame SN FM050254

95701-06014-00

$0.91
