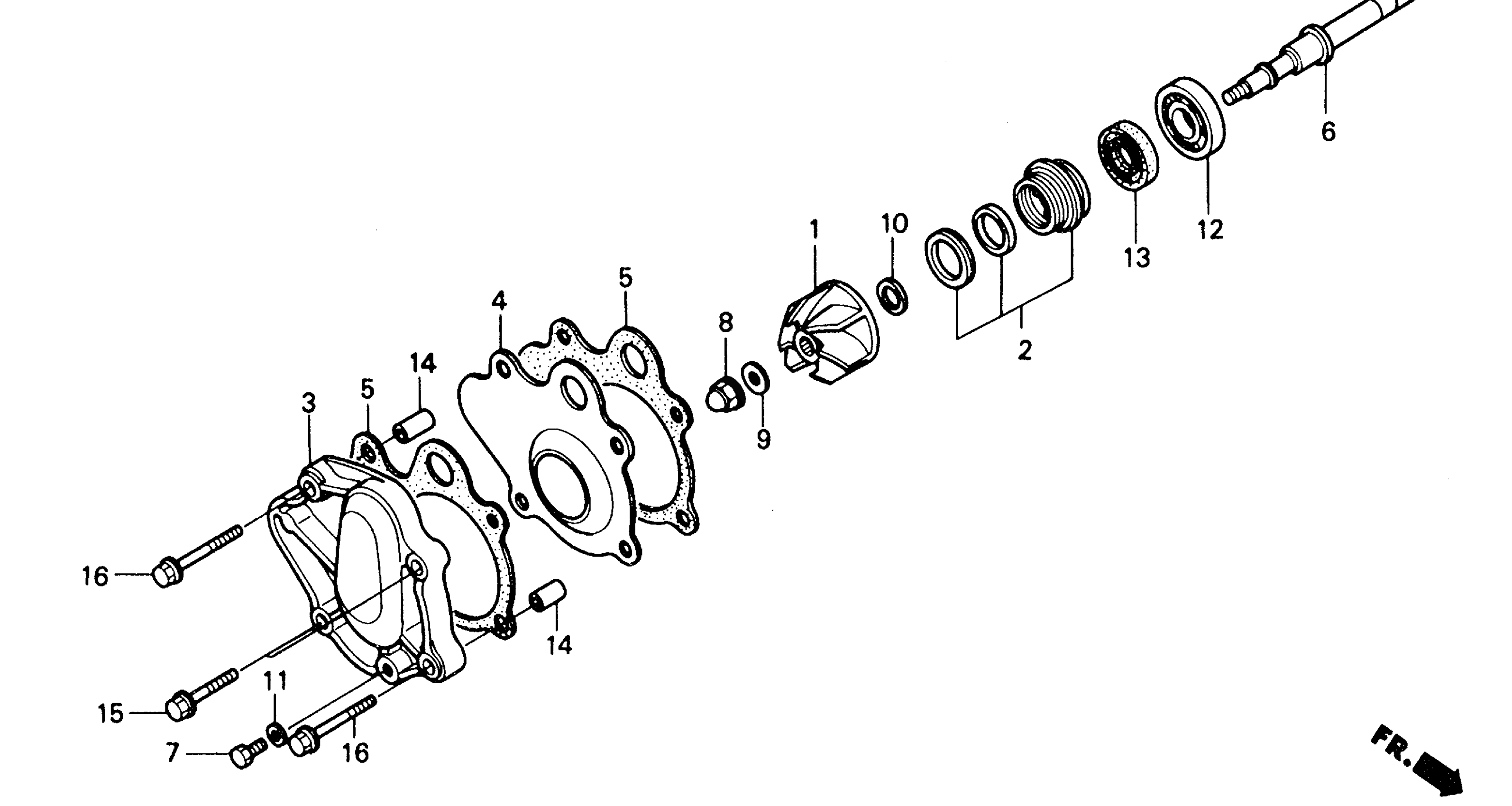

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-KA3-710

Unavailable

SEAL, MECHANICAL

19217-657-023

$53.27

COVER, WATER PUMP (NOT AVAILABLE)

19221-HA2-670

Unavailable

SEPARATOR, WATER PUMP

19222-HA2-000

$9.18

GASKET, WATER PUPM COVER This part replaces 19229-HA2-000.

19229-HA2-306

$3.83

GASKET, WATER PUPM COVER

19229-HA2-306

$3.83

SHAFT, WATER PUMP

19241-HA2-000

Unavailable

BOLT, OIL CHECK

90037-360-000

$3.26

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER (8X13)

90454-KA4-000

$3.08

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

BEARING, RADIAL BALL (12X28X7) (TOYO)

91001-KA4-003

$17.08

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$17.08

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
