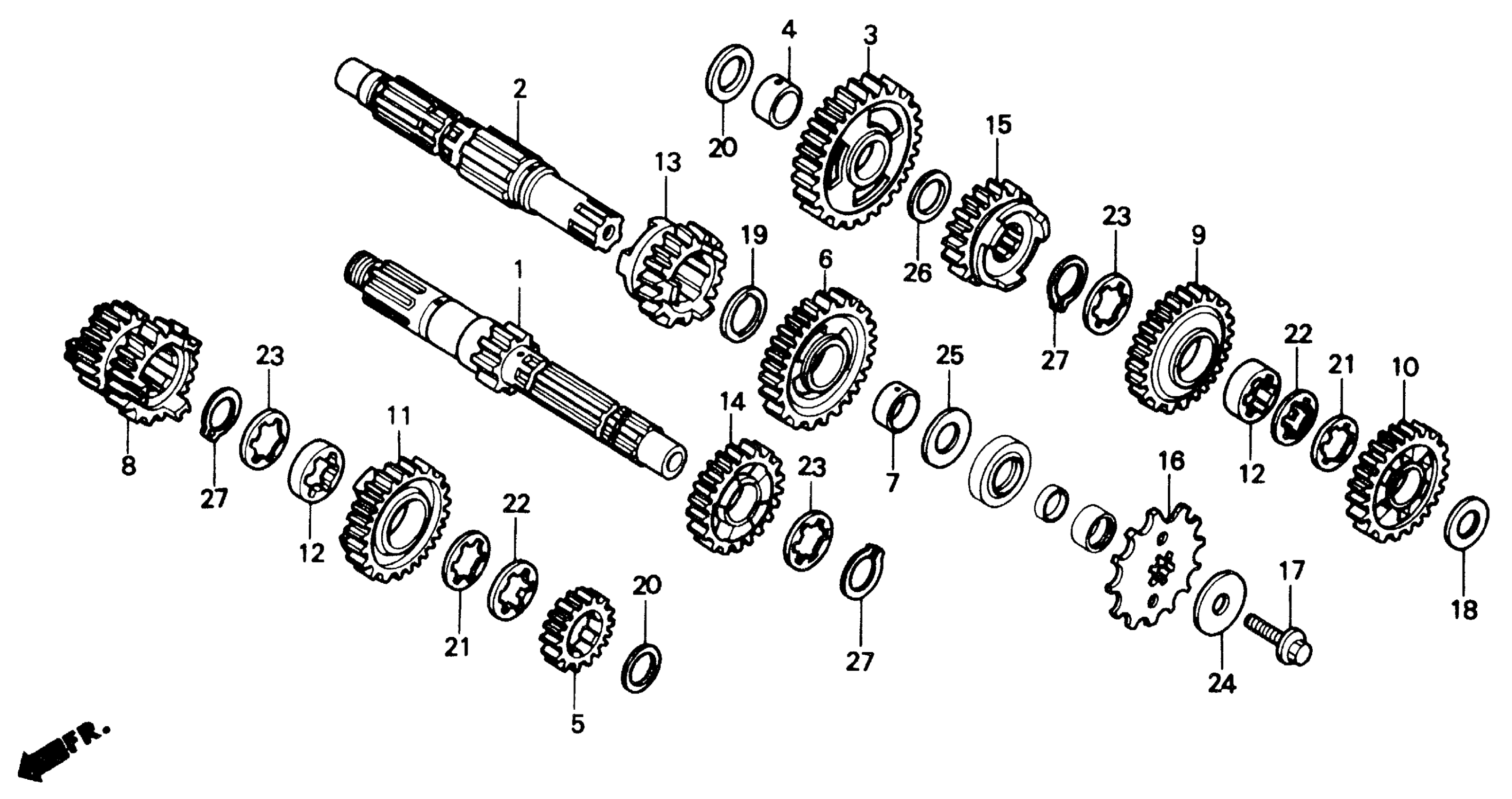

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (14T) This part replaces 23211-HA2-000.

23211-HB9-770

Unavailable

1

MAINSHAFT (14T)

23211-HB9-770

Unavailable

2

COUNTERSHAFT This part replaces 23221-HA2-000.

23221-HB9-770

Unavailable

2

COUNTERSHAFT

23221-HB9-770

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23411-HA2-000

Unavailable

4

COLLAR, COUNTERSHAFT LOW GEAR

23412-HA2-000

Unavailable

5

GEAR, MAINSHAFT SECOND (16T)

23421-HA2-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23431-HA2-010

Unavailable

7

COLLAR, COUNTERSHAFT SECOND GEAR

23432-HA2-000

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (18T & 21T)

23441-HA2-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (30T)

23451-HA2-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (28T)

23471-HA2-670

Unavailable

11

GEAR, MAINSHAFT FIFTH (24T)

23481-HA2-000

Unavailable

12

COLLAR, MAINSHAFT FIFTH GEAR

23482-HA2-000

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (26T)

23491-HA2-010

Unavailable

14

GEAR, MAINSHAFT TOP (26T) (NOT AVAILABLE)

23501-HA2-000

Unavailable

15

GEAR, COUNTERSHAFT TOP (23T)

23511-HA2-000

Unavailable

16

SPROCKET, DRIVE (13T)

23803-HA2-000

Unavailable

17

BOLT, FLANGE (8X20) This part replaces 90012-HA2-000.

90103-426-000

$3.30

17

BOLT, FLANGE (8X20) This part replaces 90103-HA2-000.

90103-426-000

$3.30

17

BOLT, FLANGE (8X20)

90103-426-000

$3.30

18

WASHER, THRUST (25.2X30)

90431-HA2-000

Unavailable

19

WASHER, THRUST (24.2X34)

90446-KA5-680

Unavailable

20

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

21

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

22

WASHER, LOCK (25MM)

90462-323-000

$3.77

23

WASHER, SPLINE (25MM)

90463-430-000

$5.89

24

WASHER, SPRING (8X40) This part replaces 90501-KA3-741.

90501-HB9-003

$4.40

25

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

25

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

26

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

27

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16
