- ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117
TAILLIGHT

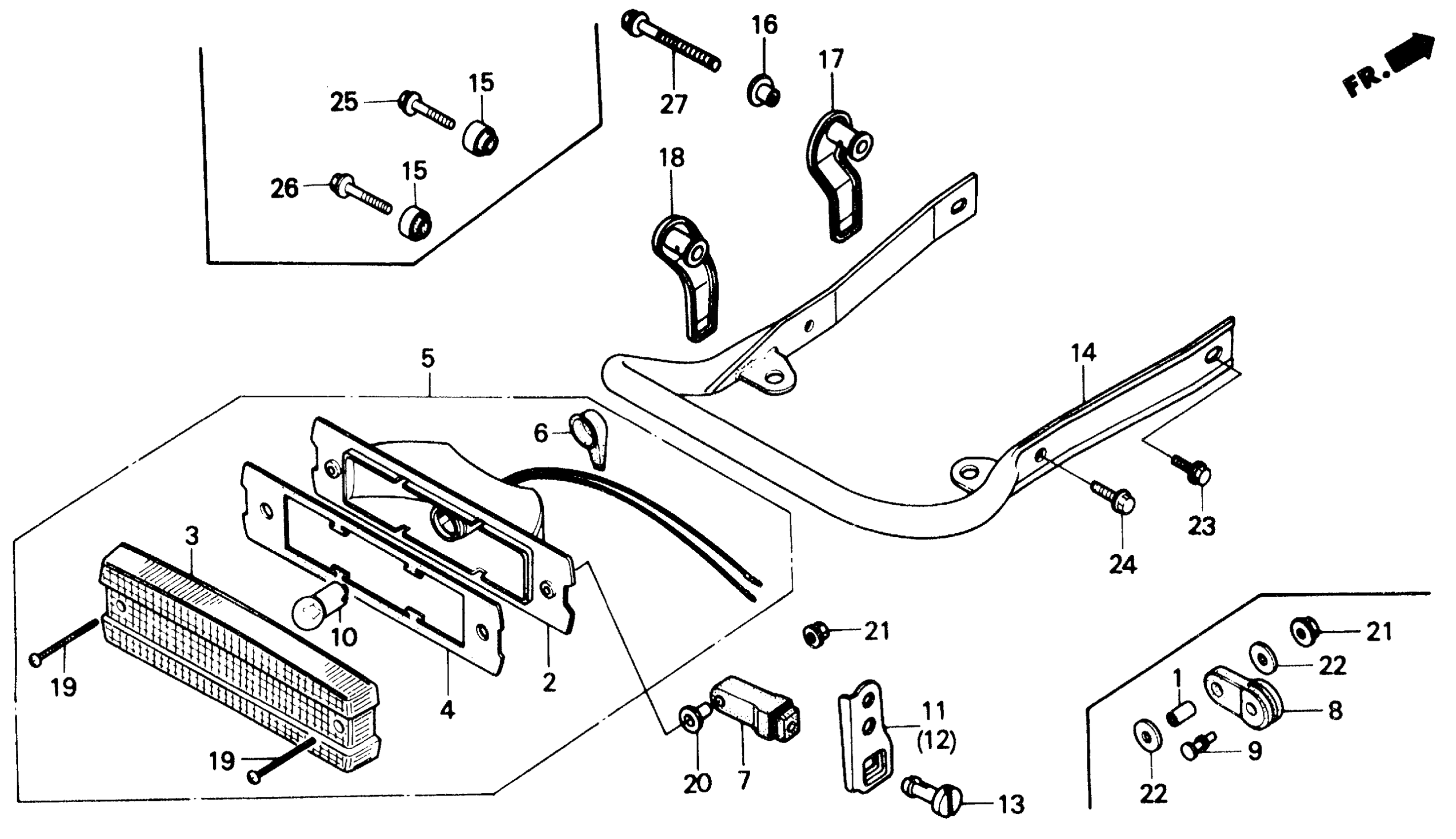

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 TAILLIGHT Diagram
#
Description
Price
2
HOUSING, TAILLIGHT (NOT AVAILABLE)
33300-965-003
Unavailable
3
LENS, TAILLIGHT
33302-965-003
Unavailable
4
GASKET, TAILLIGHT
33303-965-003
Unavailable
5
TAILLIGHT ASSY.
33700-VM4-770
Unavailable
5
TAILLIGHT ASSY. This part replaces 33700-965-003.
33700-VM4-770
Unavailable
6
COVER, SOCKET
33702-965-003
Unavailable
7
RUBBER, TAILLIGHT SETTING
33715-HA2-670
Unavailable
10
BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 34905-965-003.
34910-504-003
Unavailable
11
BRACKET, R. TAILLIGHT (NOT AVAILABLE)
50231-HA2-670
Unavailable
12
BRACKET, L. TAILLIGHT (NOT AVAILABLE)
50232-HA2-670
Unavailable
13
PIN, HEADLIGHT BAND
61308-HA2-000
Unavailable
14
PIPE, CARRIER This part replaces 81200-HA2-670.
81200-HA2-770
Unavailable
16
COLLAR, TOOL BOX SETTING This part replaces 83511-HA2-670.
83511-VM6-680
Unavailable
16
COLLAR, TOOL BOX SETTING
83511-VM6-680
Unavailable
17
STAY A, TOOL BOX (NOT AVAILABLE)
83513-HA2-670
Unavailable
18
STAY B, TOOL BOX (NOT AVAILABLE)
83514-HA2-670
Unavailable
19
SCREW, PAN (4X50)
90121-965-003
Unavailable
20
COLLAR, TAILLIGHT SETTING
90562-HA2-670
Unavailable
