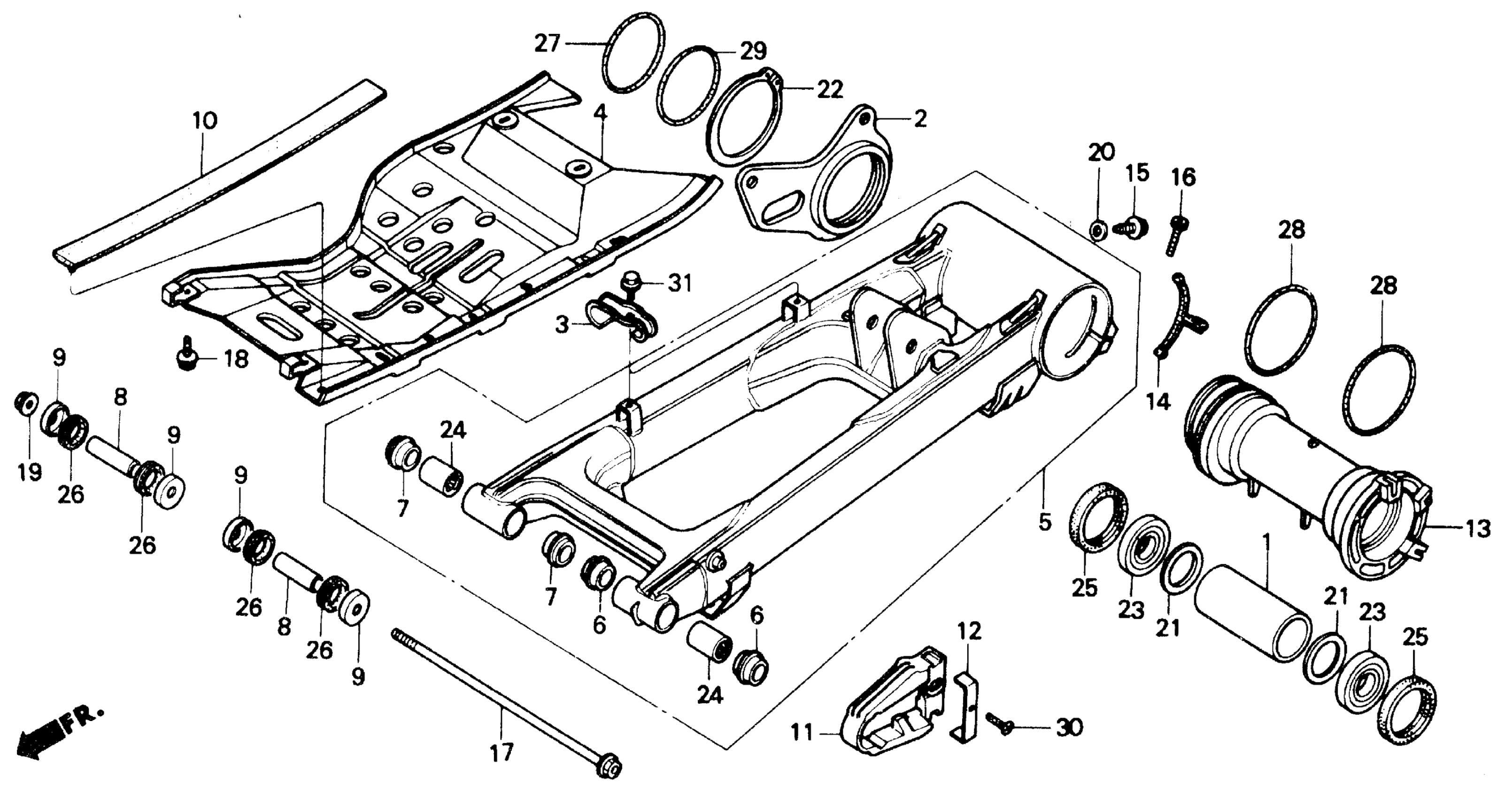

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 SWINGARM 86 Diagram

#

Description
Price

1

COLLAR, DISTANCE

42621-HA2-670

Unavailable

2

STAY, RR. CALIPER This part replaces 43211-HA2-670.

43211-HB9-770

Unavailable

2

STAY, RR. CALIPER

43211-HB9-770

Unavailable

3

CLAMP, BRAKE HOSE

43311-965-000

$7.09

4

PLATE, SKID This part replaces 50355-HA2-670.

50355-HA2-770

Unavailable

5

SWINGARM ASSY | Use up to Frame SN GC511762 This part replaces 52000-HA2-670.

52000-HA2-405

Unavailable

5

SWINGARM ASSY | Use from Frame SN GC511763 This part replaces 52000-HA2-671.

52000-HA2-405

Unavailable

6

BUSH, PIVOT THRUST This part replaces 52109-HA2-003.

52109-HA2-305

Unavailable

6

BUSH, PIVOT THRUST

52109-HA2-305

Unavailable

7

BUSH, PIVOT THRUST

52109-HA2-305

Unavailable

8

COLLAR, SWINGARM

52141-HA2-000

Unavailable

9

CAP, DUST SEAL

52144-HA2-005

Unavailable

10

SLIDER, SKID PLATE This part replaces 52156-HA2-000.

52156-HB9-000

Unavailable

10

SLIDER, SKID PLATE

52156-HB9-000

Unavailable

11

SLIDER, CHAIN

52170-HA2-670

$38.62

12

STAY, CHAIN SLIDER

52171-HA2-000

Unavailable

13

HOLDER, BEARING

52201-HA2-670

Unavailable

14

SEAL, BEARING HOLDER

52202-HA2-670

$13.73

15

BOLT, STOPPER (8MM)

90115-964-003

$3.42

16

BOLT, SOCKET (8MM)

90116-125-782

Unavailable

17

BOLT, RR. SWINGARM

90117-HA2-000

Unavailable

18

BOLT-WASHER (8X12)

90156-964-670

Unavailable

19

NUT, U (14MM)

90305-GE8-003

$3.59

20

WASHER (8MM)

90481-035-000

$1.70

21

WASHER, AXLE COLLAR

90501-HA2-670

Unavailable

22

CIRCLIP (OUTER) (70MM)

90665-964-000

$11.36

23

BEARING (40X62X12) (KOYO) This part replaces 91051-HA2-003.

91051-HA2-013

$32.59

23

BEARING (40X62X12)

91051-HA2-013

$32.59

24

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$29.73

24

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$29.73

25

DUST SEAL (52X62X7)

91252-HA2-003

$14.50

26

DUST SEAL (27X31.8X5) (NOK) This part replaces 91253-HA2-003.

91253-HA2-005

Unavailable

26

DUST SEAL (27X31.8X5) (NOK)

91253-HA2-005

Unavailable

27

O-RING, ROTARY CASE

91351-737-752

$4.79

28

O-RING, BEARING HOLDER (81X3)

91353-HA2-670

$6.87

29

O-RING (69X2)

91302-MS2-003

$3.84

29

O-RING (69X2) This part replaces 91355-HA2-670.

91302-MS2-003

$3.84

29

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$3.84

30

SCREW, PAN (6X12)

93500-06012-0G

$0.90

31

BOLT, FLANGE (6X10)

96300-06010-00

$0.86
