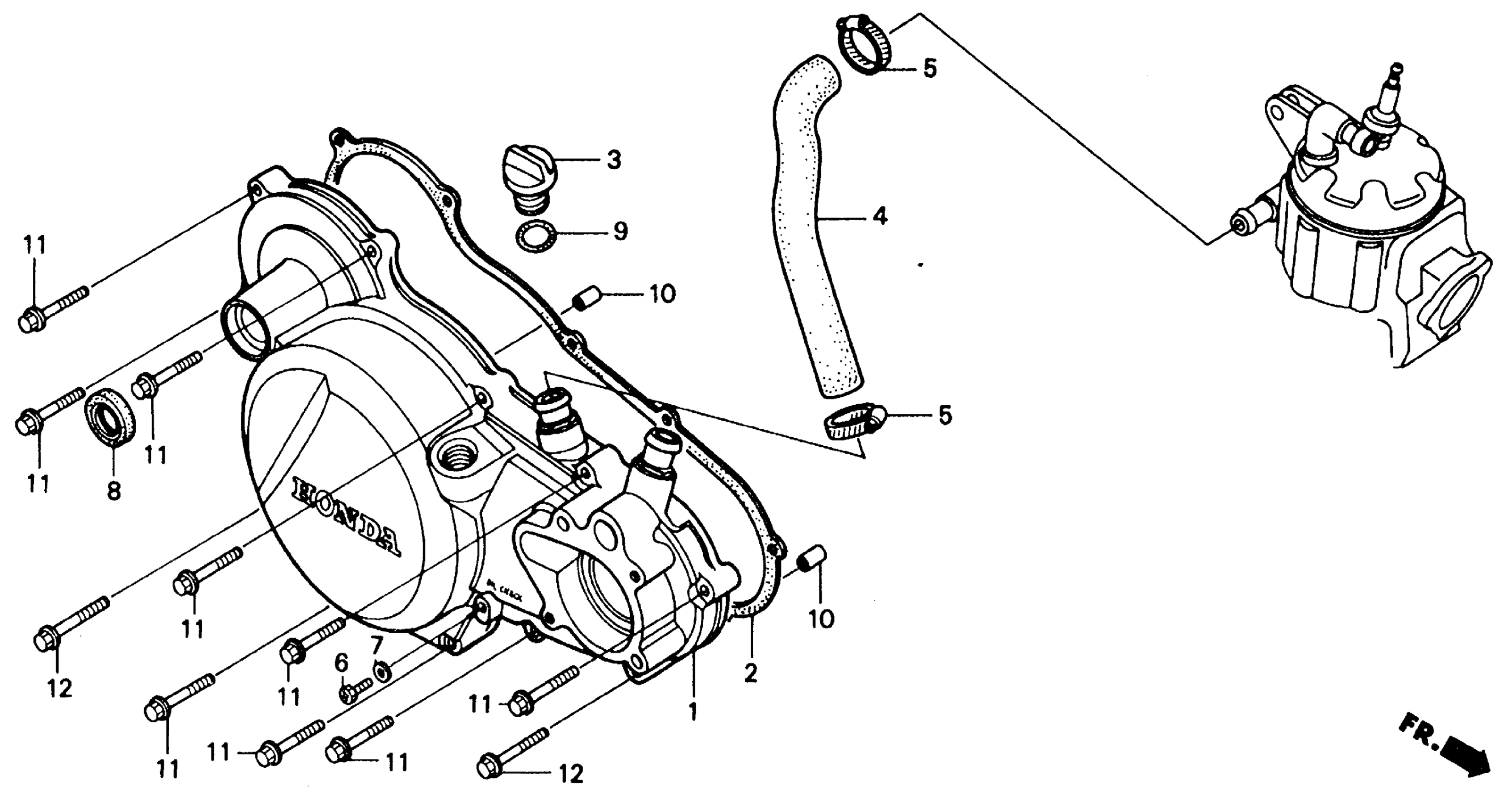

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11340-HA2-670

Unavailable

GASKET, R. CRANKCASE COVER

11395-HA2-P00

$25.60

GASKET, R. CRANKCASE COVER This part replaces 11395-HA2-003.

11395-HA2-P00

$25.60

GASKET, R. CRANKCASE COVER This part replaces 11395-HA2-306.

11395-HA2-P00

$25.60

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

HOSE, WATER

19501-HA2-000

Unavailable

CLAMP, WATER HOSE

19506-KA4-000

$9.18

BOLT, OIL CHECK

90037-360-000

$3.26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.54

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

O-RING (16MM)

91303-800-000

$2.23

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
