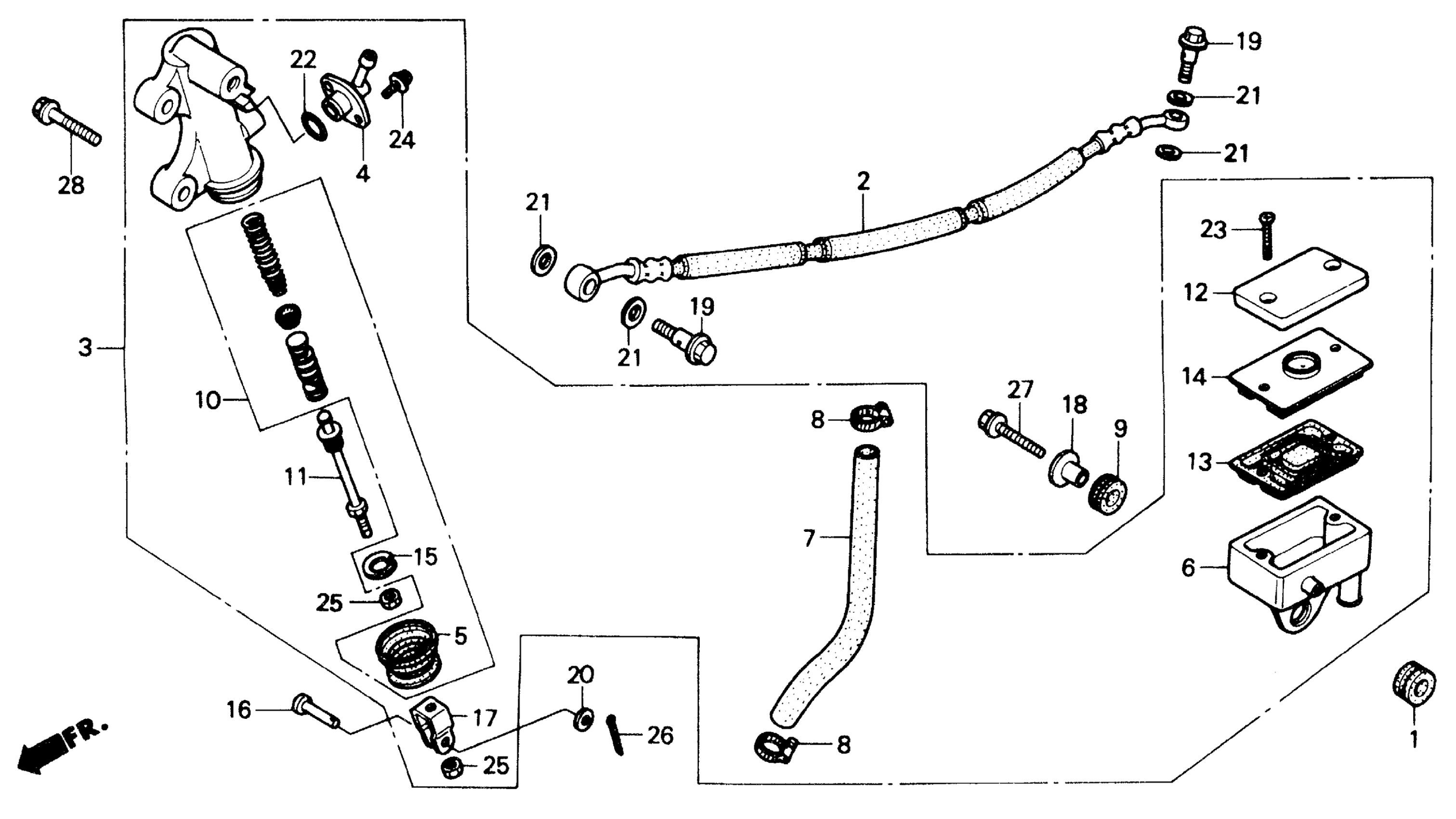

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 REAR BRAKE MASTER CYLINDER Diagram

RUBBER, TAILLIGHT SETTING

33715-965-000

$5.10

HOSE ASSY., RR. BRAKE (NOT AVAILABLE)

43310-HA2-671

Unavailable

MASTER CYLINDER ASSY., RR. BRAKE (NA USE ALT:43510-HA2-P00)

43500-HA2-016

Unavailable

CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)

43503-964-006

Unavailable

BOOT, MASTER CYLINDER

43504-371-013

$9.54

CUP, OIL

43511-HA2-016

$37.16

HOSE, MASTER CYLINDER OIL (NOT AVAILABLE)

43512-HA2-006

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

$17.93

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

PISTON SET, MASTER CYLINDER

43520-965-305

Unavailable

ROD, PUSH (NOT AVAILABLE)

43530-HA2-006

Unavailable

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

PIN, BRAKE ROD

46503-371-000

Unavailable

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

COLLAR (6.3X13)

50324-425-010

$5.05

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

WASHER (7X12)

90501-310-000

$1.74

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X30)

93600-04030-1A

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (8X28)

96400-08028-00

$1.85
