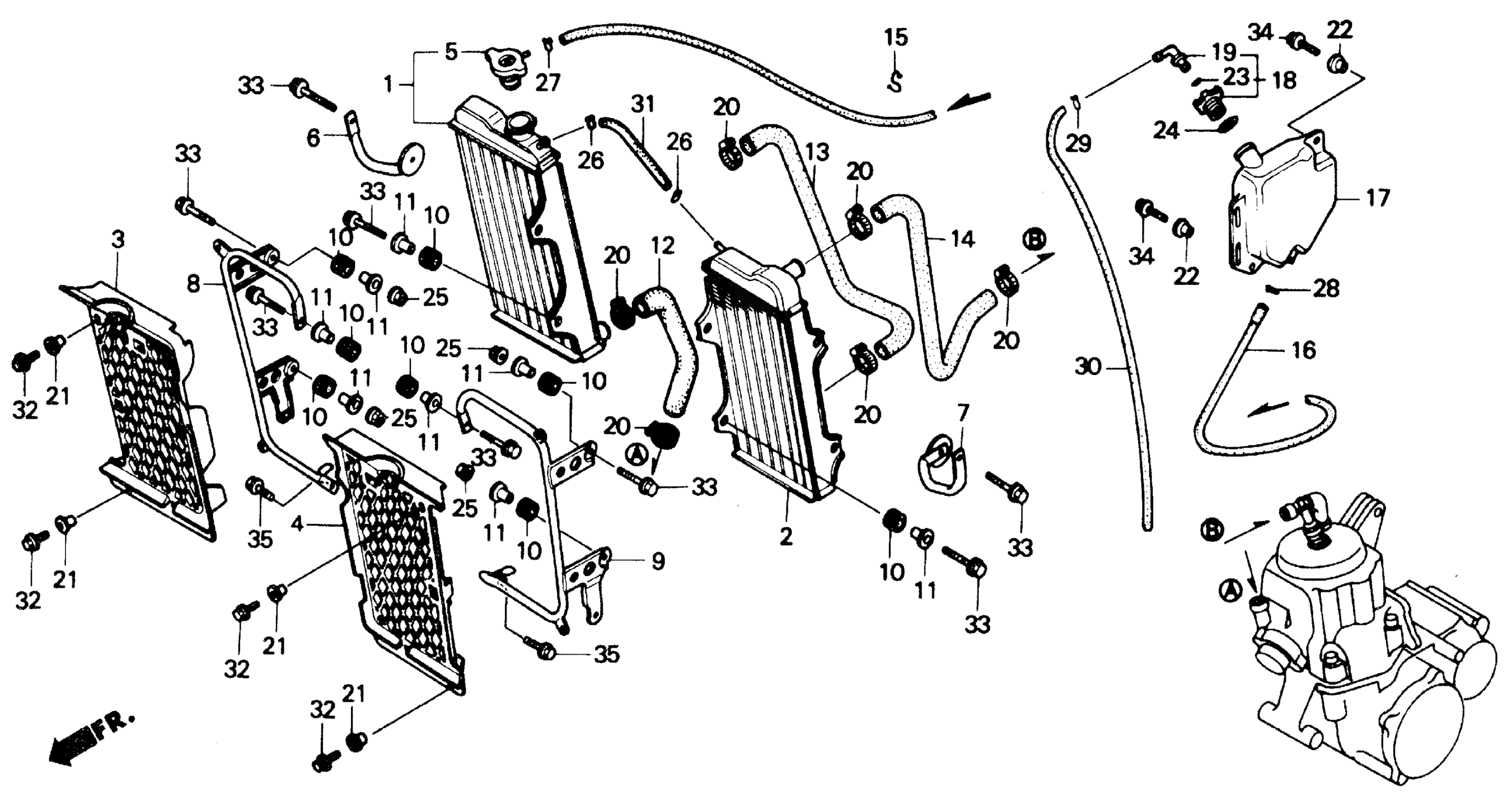

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 RADIATOR Diagram

#

Description
Price

1

RADIATOR, R. (NOT AVAILABLE)

19010-HA2-003

Unavailable

2

RADIATOR, L. (NOT AVAILABLE)

19015-HA2-003

Unavailable

3

GRILLE, R. RADIATOR (NOT AVAILABLE)

19033-HA2-000

Unavailable

4

GRILLE, L. RADIATOR (NOT AVAILABLE)

19034-HA2-000

Unavailable

5

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$50.26

6

STAY, R. RADIATOR (NOT AVAILABLE)

19043-HA2-670

Unavailable

7

STAY, L. RADIATOR

19044-HA2-670

Unavailable

8

GUARD, R. RADIATOR (NOT AVAILABLE)

19045-HA2-670

Unavailable

9

GUARD, L. RADIATOR (NOT AVAILABLE)

19046-HA2-670

Unavailable

10

RUBBER, RADIATOR SETTING (B)

19052-HA2-000

Unavailable

11

COLLAR, RADIATOR SETTING (B)

19056-HA2-000

$6.82

12

HOSE A, WATER (NOT AVAILABLE)

19061-HA2-000

Unavailable

13

HOSE B, WATER (NOT AVAILABLE)

19062-HA2-000

Unavailable

14

HOSE C, WATER (NOT AVAILABLE)

19063-HA2-000

Unavailable

16

TUBE, BREATHER (NOT AVAILABLE)

19066-HA2-000

Unavailable

17

TANK, RESERVE This part replaces 19101-HA2-670.

19101-HA2-505

Unavailable

18

CAP, RESERVE TANK This part replaces 19102-HA2-000.

19102-HB9-670

Unavailable

18

CAP, RESERVE TANK

19102-HB9-670

Unavailable

19

JOINT, RESERVE TANK This part replaces 19105-HA2-000.

19105-HB9-670

Unavailable

19

JOINT, RESERVE TANK

19105-HB9-670

Unavailable

20

CLAMP, WATER HOSE

19506-KA4-000

$9.18

21

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

22

WASHER, NUMBER BRACKET SETTING

90563-045-000

$3.12

23

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

23

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

23

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

24

O-RING (21.5X3.1)

91352-HA2-003

Unavailable

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

CLIP, TUBE (A13)

95002-01130

$4.17

27

CLIP, TUBE (B10)

95002-02100

$1.90

28

CLIP, TUBE (B12)

95002-02120

$2.00

29

CLIP, TUBE (C11)

95002-70000

$1.56

30

BULK HOSE, VINYL (7X11X1000) (7X11X510)

95003-19001-10M

$3.89

31

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

32

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

32

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

33

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

33

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

34

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

35

BOLT, FLANGE (8X12)

96300-08012-00

$2.84
