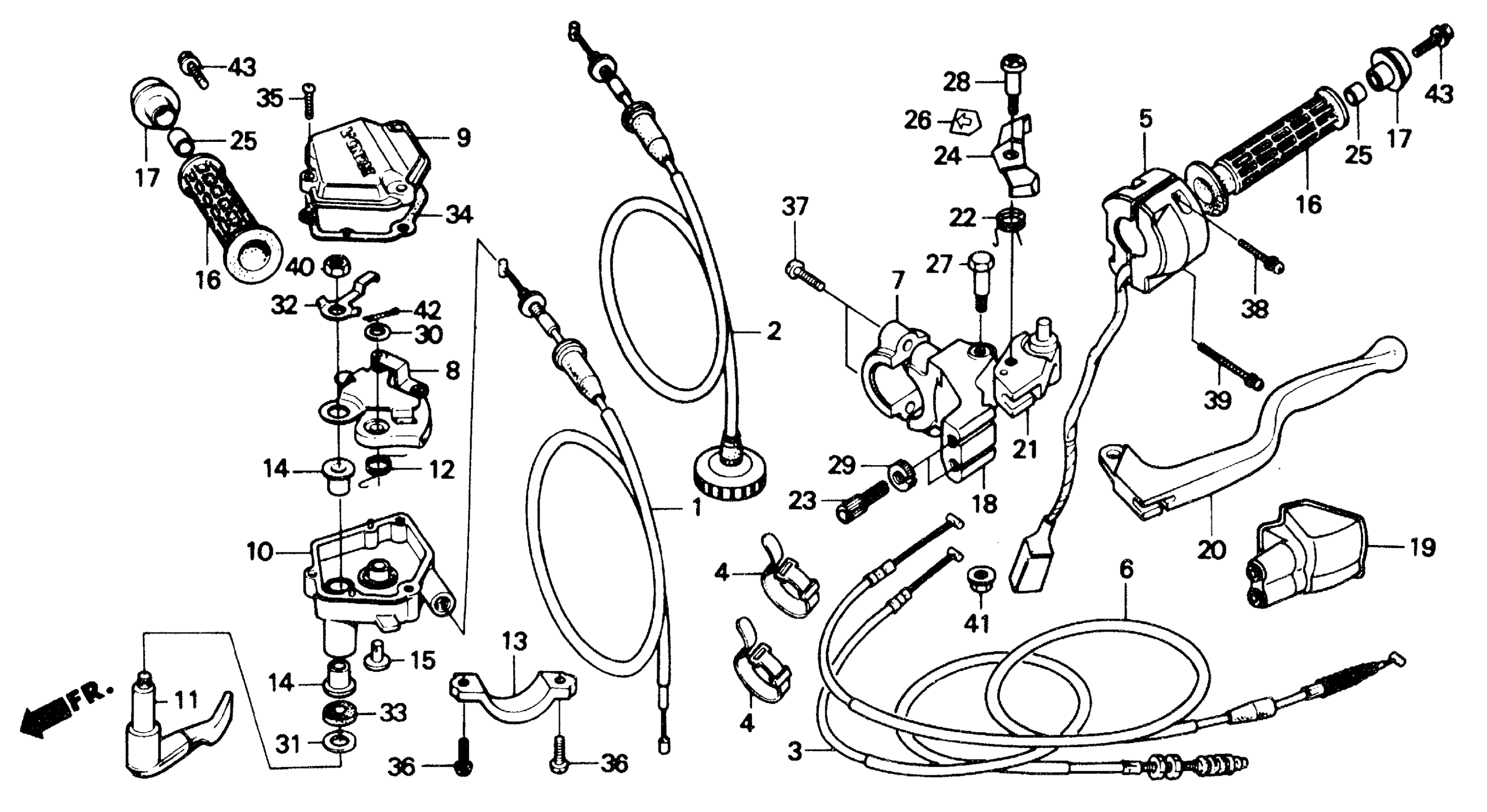

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 HANDLE SWITCH Diagram

#

Description
Price

2

CABLE SET, THROTTLE (NOT AVAILABLE)

17920-HA2-305

Unavailable

3

CABLE, CLUTCH

22870-HA2-000

Unavailable

4

BAND B1, CABLE

32161-404-000

$2.23

5

SWITCH ASSY., LIGHTING ENGINE | Use up to Frame SN GC513116 This part replaces 35200-HA2-671.

35200-HA2-674

Unavailable

5

SWITCH ASSY., LIGHTING ENGINE This part replaces 35200-HA2-672.

35200-HA2-674

Unavailable

5

SWITCH ASSY., LIGHTING ENGINE This part replaces 35200-HA2-673.

35200-HA2-674

Unavailable

5

SWITCH ASSY., LIGHTING ENGINE

35200-HA2-674

Unavailable

6

CABLE, PARKING BRAKE (NOT AVAILABLE)

43455-HA2-670

Unavailable

7

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

8

LINK, THROTTLE

53140-HA2-000

Unavailable

9

COVER, THROTTLE CASE

53141-HB9-000

Unavailable

9

COVER, THROTTLE CASE This part replaces 53141-HA2-670.

53141-HB9-000

Unavailable

10

CASE, THROTTLE LEVER

53142-HB9-000

Unavailable

10

CASE, THROTTLE LEVER This part replaces 53142-HA2-670.

53142-HB9-000

Unavailable

11

LEVER, THROTTLE This part replaces 53145-HA0-000.

53145-HA0-770

$24.05

11

LEVER, THROTTLE

53145-HA0-770

$24.05

12

SPRING, THROTTLE RETURN

53146-HA2-000

Unavailable

13

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

14

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

15

PIN, THROTTLE CENTER

53150-HA2-000

Unavailable

16

GRIP, HANDLE

53165-958-010

$13.38

17

GUARD, HANDLEBAR END

53167-958-680

$6.40

18

BRACKET, L. HANDLEBAR

53172-961-000

Unavailable

19

COVER, L. HANDLEBAR

53177-HA5-000

$8.76

20

LEVER, L. HANDLEBAR

53178-965-000

Unavailable

21

ARM ASSY., PARKING BRAKE

53180-961-010

Unavailable

22

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

23

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

24

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

25

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

26

MARK, PARKING BRAKE LEVER (FRENCH) (NOT AVAILABLE)

87574-HA5-640

Unavailable

27

BOLT, HANDLE LEVER PIVOT

90114-961-000

Unavailable

28

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

29

NUT, FIXING

90321-315-670

$7.31

30

WASHER, FLAT SCREW

90503-964-000

Unavailable

31

WASHER (9X20)

90504-HA0-000

$2.28

32

WASHER, LOCK (6MM)

90505-HA2-000

Unavailable

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

34

GASKET This part replaces 91354-HA2-000.

91354-HA2-010

Unavailable

35

SCREW, PAN (4X12)

93500-04012-0G

$1.49

36

SCREW, PAN (5X18)

93500-05018-0G

$1.49

37

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

38

SCREW-WASHER (5X20)

93892-05020-07

$1.49

39

SCREW-WASHER (5X32)

93892-05032-07

Unavailable

40

NUT, HEX. (6MM)

94002-06000-0S

$1.49

41

NUT, FLANGE (6MM)

94050-06000

$1.49

42

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

42

PIN, SPLIT (1.0MM)

94201-10150

$1.49

43

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

43

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
