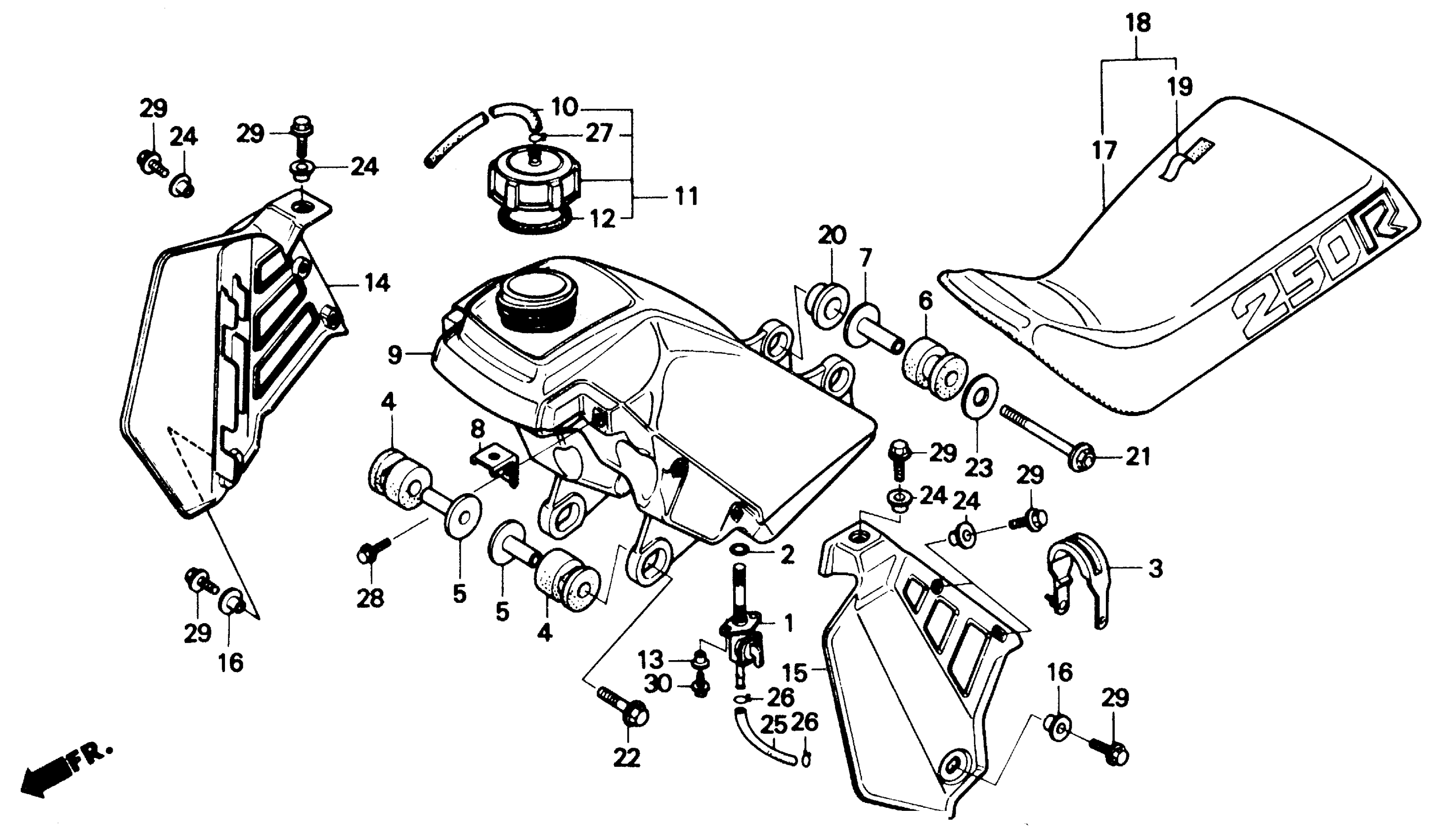

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 FUEL TANK SEAT Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-HA2-005.

16950-HA2-015

$113.66

1

PETCOCK ASSY.

16950-HA2-015

$113.66

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER, TANK SETTING (NOT AVAILABLE)

17504-HA2-670

Unavailable

4

RUBBER, FR. FUEL TANK MOUNTING (NOT AVAILABLE)

17505-HA2-000

Unavailable

5

COLLAR, FR. FUEL TANK MOUNTING (NOT AVAILABLE)

17506-HA2-000

Unavailable

6

RUBBER, RR. FUEL TANK MOUNTING (NOT AVAILABLE)

17507-HA2-000

Unavailable

7

COLLAR, RR. FUEL TANK MOUNTING (NOT AVAILABLE)

17508-HA2-000

Unavailable

8

BRACKET, SHROUD (UPPER) (NOT AVAILABLE)

17509-HA2-000

Unavailable

9

TANK, FUEL *R109* (PASSION RED)

17510-HA2-P00

Unavailable

9

TANK, FUEL *R109* (PASSION RED) This part replaces 17510-HA2-770ZA.

17510-HA2-P00

Unavailable

9

TANK, FUEL *R109* (PASSION RED) This part replaces 17510-HA2-670ZA.

17510-HA2-P00

Unavailable

10

TUBE, FUEL CAP BREATHER | Use up to Frame SN GC500015

17521-429-000

$6.98

10

TUBE, FUEL CAP BREATHER | Use from Frame SN GC500016

17521-HA2-670

$6.99

11

CAP, FUEL TANK

17620-MA0-405

Unavailable

11

CAP, FUEL TANK | Use from Frame SN GC500016 This part replaces 17620-HA2-670.

17620-MA0-405

Unavailable

11

CAP, FUEL TANK | Use up to Frame SN GC500015 This part replaces 17620-KN5-670.

17620-MA0-405

Unavailable

12

GASKET, FUEL TANK CAP

17624-467-020

Unavailable

13

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

14

SHROUD, R. RADIATOR *R109* (WOL) (PASSION RED)

19030-HA2-670ZA

$83.67

15

SHROUD, L. RADIATOR *R109* (WOL) (PASSION RED)

19035-HA2-670ZA

$83.67

16

COLLAR (6X22)

19509-HA2-000

Unavailable

18

SEAT COMP.(NH1L) This part replaces 77100-HA2-670.

77100-HA2-415

Unavailable

19

COVER, SEAT This part replaces 77101-HA2-670.

77101-HA2-830

Unavailable

20

SPACER, FR. CATCH (NOT AVAILABLE)

80108-HA2-000

Unavailable

21

BOLT, FLANGE (8X45) (NOT AVAILABLE)

90002-HA2-000

Unavailable

22

BOLT, FLANGE (8X55)

96300-08055-00

$2.39

23

WASHER (8.5X26)

90504-MA6-000

$1.66

24

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

25

BULK HOSE, FUEL (7.5X8000) (7.3X120)

95001-75008-60M

$103.82

26

CLIP, TUBE (B12)

95002-02120

$2.00

27

CLIP, TUBE (C9)

95002-50000

$1.49

28

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

28

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

29

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

29

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

30

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

30

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
