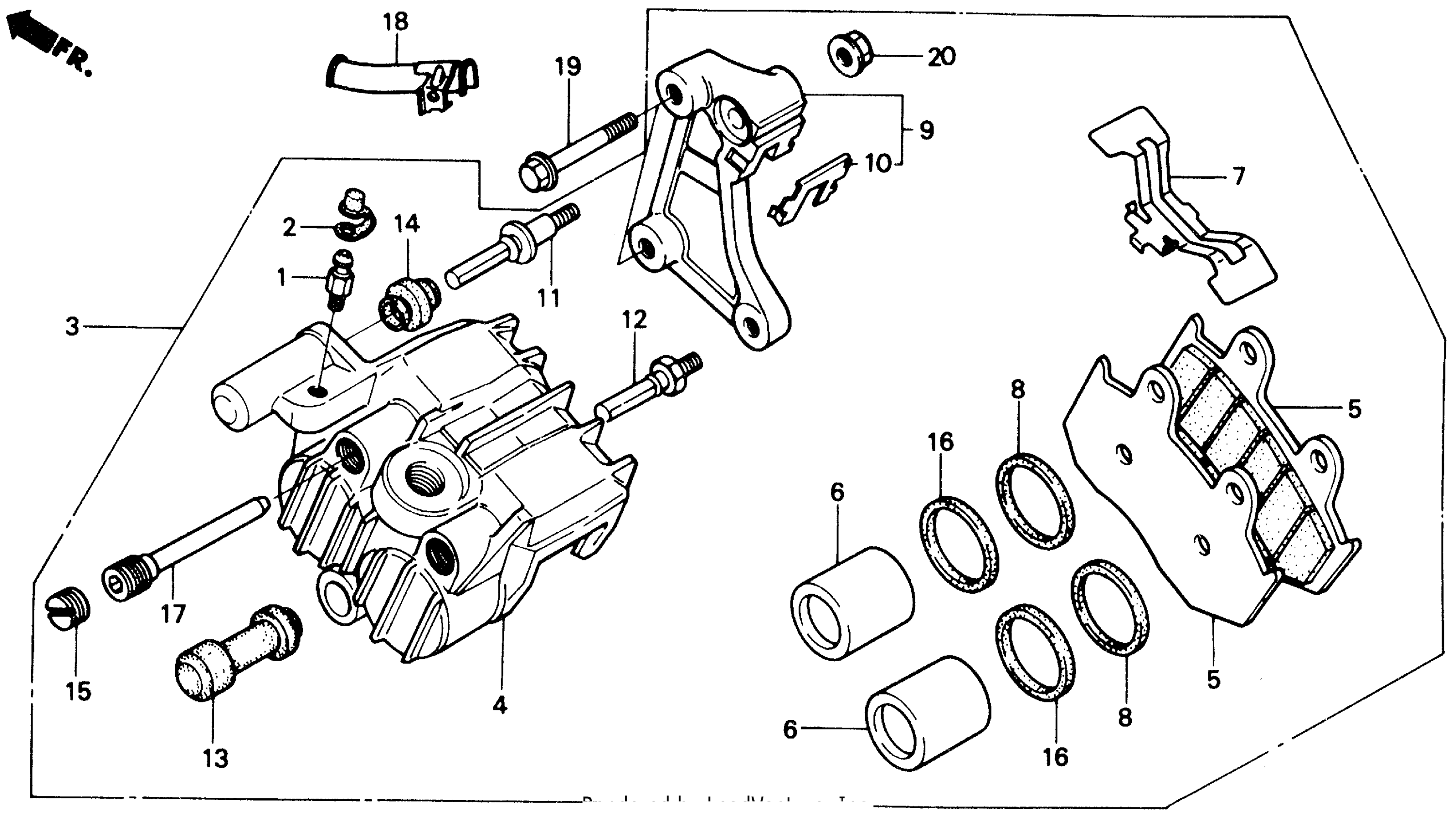

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 FRONT BRAKE CALIPER Diagram

BRAKE PAD KIT

451A0-KA3-731

Unavailable

SCREW, BLEEDER

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

CALIPER ASSY., L. FR. (NISSHIN) This part replaces 45100-HA2-672.

45100-HA2-673

Unavailable

CALIPER ASSY., L. FR. (NISSHIN)

45100-HA2-673

Unavailable

BODY, CALIPER (NISSHIN)

45101-HA2-672

Unavailable

PAD (SEE KIT P/N--END OF BLOCK)

45105-KA3-731

Unavailable

PISTON This part replaces 45107-MG3-006.

45107-MG3-016

$41.28

PISTON

45107-MG3-016

$41.28

SPRING, PAD

45108-GE2-006

Unavailable

DUST SEAL

45109-GE2-006

$5.31

BRACKET, L. FR. (NISSIN)

45110-HA2-672

Unavailable

RETAINER

45112-MG3-006

$7.27

BOLT A, PIN

45131-MG3-006

Unavailable

PIN, BOLT

45131-166-016

$7.63

BUSH, PIN

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

PLUG, PIN

45203-MG3-016

$5.12

SEAL, PISTON

45209-GE2-006

$6.91

PIN, HANGER This part replaces 45215-GE2-006.

45215-GE2-016

$11.52

PIN, HANGER

45215-GE2-016

$11.52

GUIDE, BRAKE HOSE (NOT AVAILABLE)

45463-HA2-670

Unavailable

BOLT, FLANGE (8X40) This part replaces 90131-MG3-000.

96400-08040-00

$2.02

NUT, FLANGE (8MM)

94050-08080

$1.49
