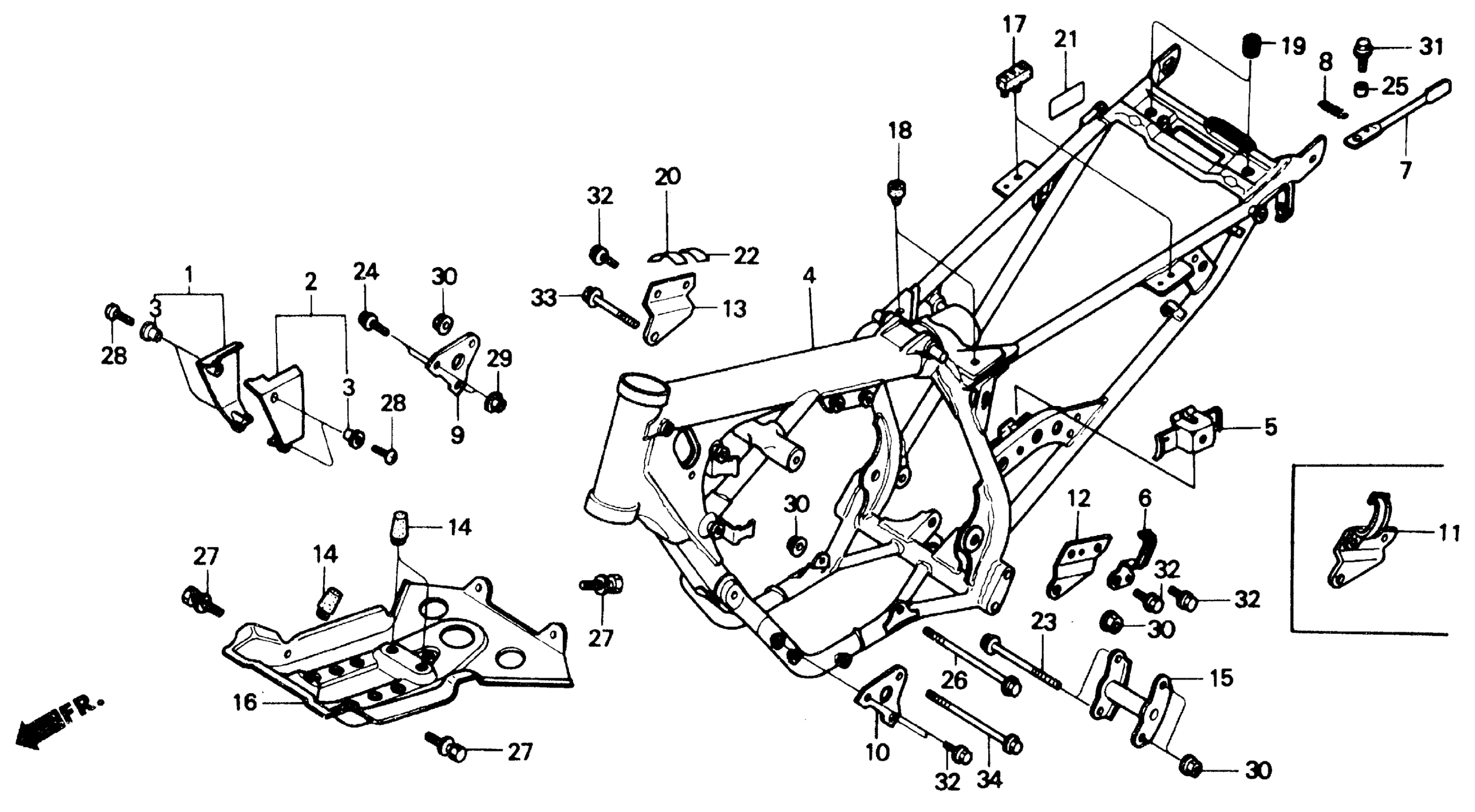

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 FRAME Diagram

#

Description
Price

1

INLET, R. AIR

17215-HA2-000

Unavailable

2

INLET, L. AIR (NOT AVAILABLE)

17216-HA2-000

Unavailable

3

COLLAR, TURN SIGNAL STAY

33619-459-840

$2.33

4

FRAME | Use up to Frame SN GC500015 This part replaces 50100-HA2-670.

50100-HA2-671

Unavailable

4

FRAME

50100-HA2-671

Unavailable

5

BRACKET, RESERVOIR (NOT AVAILABLE)

50165-HA2-670

Unavailable

6

CLIP, WIRE HARNESS (NOT AVAILABLE)

50191-HA2-670

Unavailable

7

LEVER, SEAT LOCK

50221-HA2-000

Unavailable

8

SPRING, LEVER SETTING (NOT AVAILABLE)

50222-HA2-000

Unavailable

9

BRACKET, L. ENGINE HANGER (NOT AVAILABLE)

50256-HA2-000

Unavailable

10

BRACKET, L. ENGINE HANGER (NOT AVAILABLE)

50256-HA2-000

Unavailable

12

BRACKET, L. ENGINE MOUNT (UPPER) (NOT AVAILABLE)

50257-HA2-670

Unavailable

13

BRACKET, R. ENGINE MOUNT (UPPER) (NOT AVAILABLE)

50267-HA2-000

Unavailable

14

RUBBER A, STOPPER

50352-434-000

$5.17

15

BRACKET, RR. ENGINE HANGER

50354-HA2-670

Unavailable

16

GUARD, ENGINE (NOT AVAILABLE)

50365-HA2-670

Unavailable

17

RUBBER, RR. FENDER SETTING

50815-HA2-670

$15.68

18

RUBBER, FR. FENDER MOUNTING (NOT AVAILABLE)

50816-HA2-670

Unavailable

19

RUBBER, SEAT SETTING

77207-HA0-000

$6.64

20

LABEL, OIL CAUTION (NOT AVAILABLE)

87109-HA2-000

Unavailable

21

LABEL, RESERVE TANK

87507-ME9-670

Unavailable

22

LABEL, RADIATOR WARNING (NOT AVAILABLE)

87508-HA2-670

Unavailable

23

BOLT, FLANGE (10X110) This part replaces 90025-PD1-000.

95801-10110-08

$4.58

23

BOLT, FLANGE (10X110)

95801-10110-08

$4.58

24

BOLT, FLANGE (8X55)

96300-08055-00

$2.17

25

COLLAR, LEVER LOCK (NOT AVAILABLE)

90109-HA2-670

Unavailable

26

BOLT, ENGINE HANGER (10X135)

90152-964-000

Unavailable

27

BOLT-WASHER (8X12)

93481-08012-00

Unavailable

28

SCREW, PAN (6X12)

93500-06012-0G

$0.90

29

NUT, FLANGE (8MM)

94050-08000

$0.86

30

NUT, FLANGE (10MM)

94050-10000

$1.41

31

BOLT, FLANGE (6X12)

96300-06012-00

$0.86

32

BOLT, FLANGE (8X16)

96300-08016-00

$1.28

33

BOLT, FLANGE (10X50)

96400-10050-00

$1.90

34

BOLT, FLANGE (10X140)

96400-10140-00

$3.86
