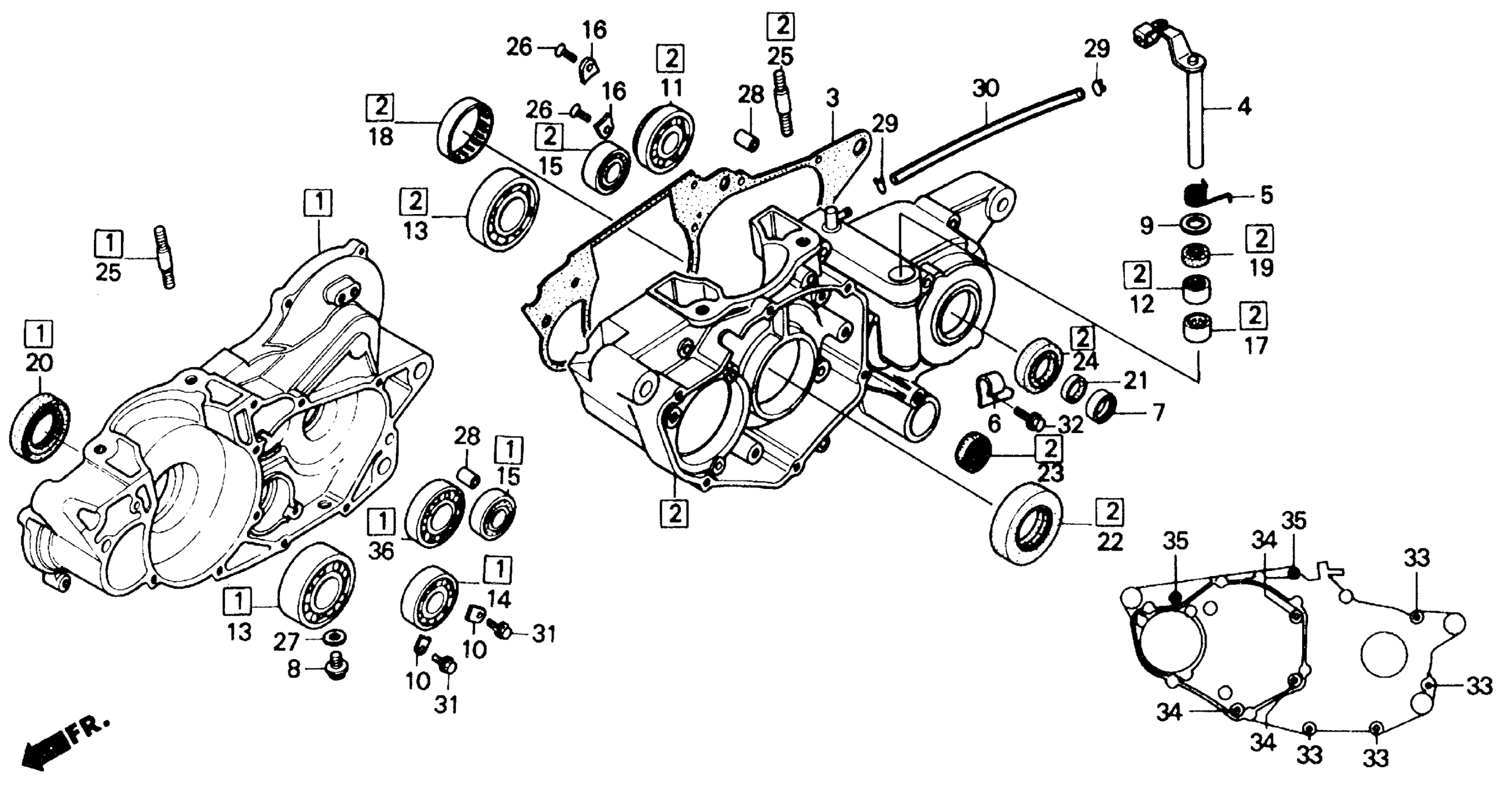

Honda ATC250RA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-GC500024 TO JH3TB060-GC513117 CRANKCASE Diagram

CRANKCASE ASSY., R. This part replaces 11001-HA2-670.

11001-HA2-770

Unavailable

CRANKCASE ASSY., R.

11001-HA2-770

Unavailable

CRANKCASE ASSY., R. This part replaces 11100-HA2-770.

11001-HA2-770

Unavailable

CRANKCASE ASSY., L. | Use up to Engine SN 2502532 This part replaces 11002-HA2-670.

11002-HA2-771

Unavailable

CRANKCASE ASSY., L. This part replaces 11002-HA2-671.

11002-HA2-771

Unavailable

CRANKCASE ASSY., L. This part replaces 11002-HA2-770.

11002-HA2-771

Unavailable

CRANKCASE ASSY., L.

11002-HA2-771

Unavailable

GASKET, CRANKCASE This part replaces 11191-HA2-000.

11191-HA2-306

$17.44

GASKET, CRANKCASE

11191-HA2-306

$17.44

LEVER, CLUTCH

22810-HA2-670

Unavailable

SPRING, CLUTCH LEVER

22815-HA2-670

Unavailable

CLAMP, CLUTCH CABLE

22861-HA2-670

Unavailable

COLLAR, COUNTERSHAFT (22MM)

23225-430-000

Unavailable

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

WASHER, SPECIAL (10MM)

90432-HA2-670

$3.28

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

BEARING, RADIAL BALL (22X56X14) (TOYO)

91001-KA4-741

$25.14

NEEDLE, SHELL (10X17X10) (KOYO)

91002-HA2-003

Unavailable

NEEDLE, SHELL (10X17X10) (KOYO) This part replaces 91002-HA2-008.

91002-HA2-003

Unavailable

BEARING, RADIAL BALL (63/28) This part replaces 91003-961-008.

91009-HC0-003

$31.43

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$27.55

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-003.

91004-GC4-731

$27.55

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-004.

91004-GC4-731

$27.55

BEARING (17X40X12-U)

91006-HA2-008

$28.76

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

BEARING, NEEDLE (1010) (TOYO)

91021-148-004

$23.20

BEARING, SHELL (33X38X8) (TOYO)

91022-KA4-740

$17.87

OIL SEAL (10X17X4) This part replaces 91202-KA3-711.

91206-VA3-J02

$2.10

OIL SEAL (38X58X11) (NIPPON)

91201-KA4-004

$20.36

O-RING (22X1.5)

91201-430-003

$2.94

OIL SEAL (28X50X8)

91202-HA2-771

$15.06

OIL SEAL (28X50X8) This part replaces 91202-430-003.

91202-HA2-771

$15.06

OIL SEAL (14X24X6) (ARAI) | Use up to Engine SN 2502532 This part replaces 91202-444-003.

91202-444-023

$3.78

OIL SEAL (14X24X6) (ARAI) | Use up to Engine SN 2502532 This part replaces 91202-444-005.

91202-444-023

$3.78

OIL SEAL (14X24X6) (ARAI) | Use up to Engine SN 2502532 This part replaces 91202-444-013.

91202-444-023

$3.78

OIL SEAL (14X24X6) (ARAI) | Use up to Engine SN 2502532 This part replaces 91202-444-015.

91202-444-023

$3.78

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

OIL SEAL (28X40X8) (NOK)

91207-ML3-003

$14.08

OIL SEAL (28X40X8) (NOK) This part replaces 91207-ML3-004.

91207-ML3-003

$14.08

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-003.

91207-ML3-003

$14.08

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-005.

91207-ML3-003

$14.08

BOLT 2, STUD (10X45) This part replaces 92700-10070-3B.

92900-10045-3B

$2.15

BOLT 2, STUD (10X45)

92900-10045-3B

$2.15

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN A, DOWEL (10X16)

94301-10160

$2.28

CLIP, TUBE (C9)

95002-50000

$1.49

BULK HOSE, VINYL (6X9X1000) (6X9X110)

95003-14001-10M

$3.30

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63
