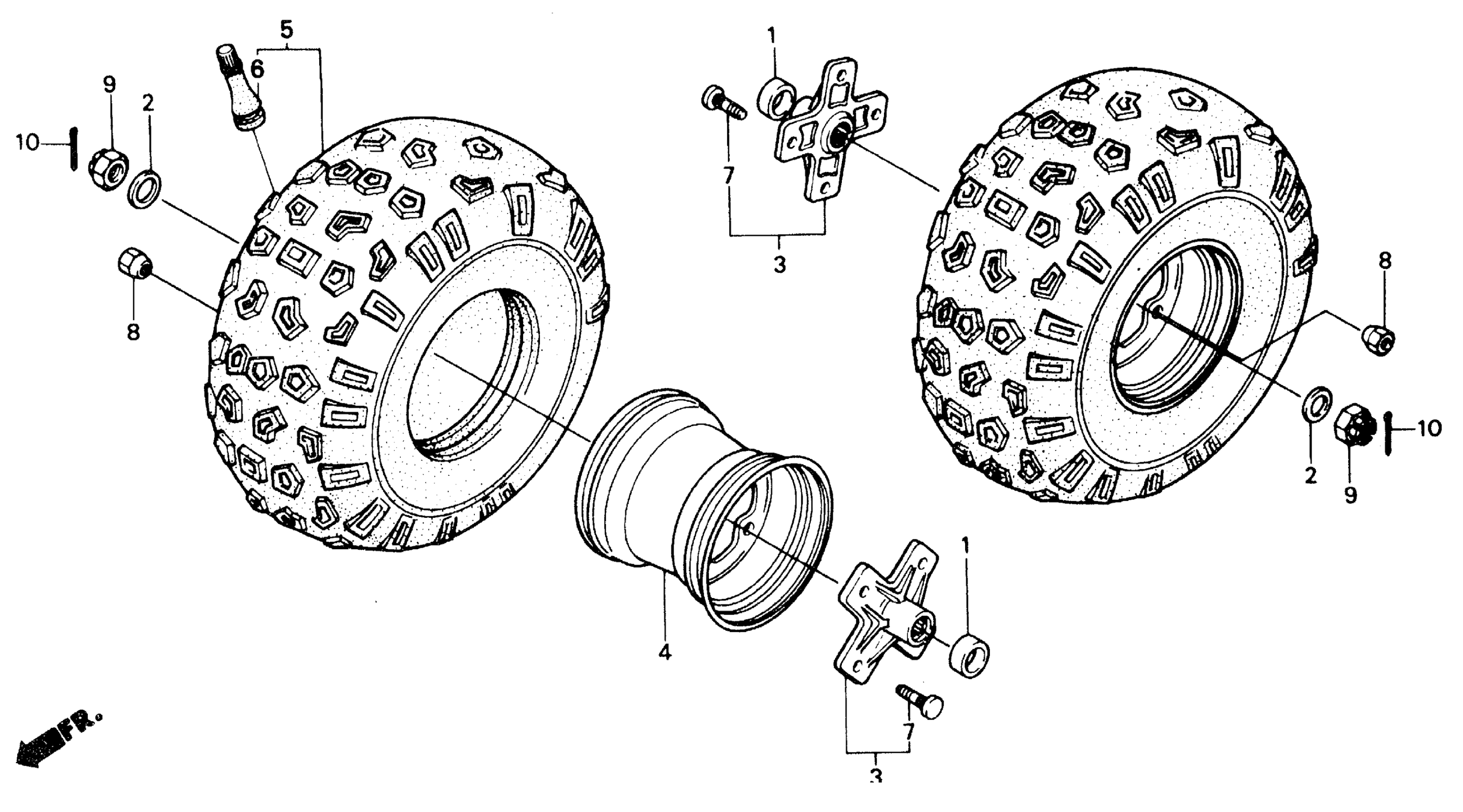

Honda ATC250RA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-FC400019 TO JH3TB060-FC426863 REAR WHEEL Diagram

COLLAR, RR. AXLE SIDE

42316-HA2-000

Unavailable

WASHER (20X34) (NOT AVAILABLE) | Use up to Frame SN FC426198

42322-HA2-000

Unavailable

HUB, RR. WHEEL (NOT AVAILABLE)

42410-HA2-000

Unavailable

RIM, RR. WHEEL (9INCH) (NOT AVAILABLE)

42701-HA2-000

Unavailable

TIRE ASSY., RR. (20X10.00-9) (KT577A) (DUNLOP) (NOT AVAILABLE) | Use up to Frame SN FC400033 This part replaces 42710-HA2-003.

42710-HA2-013

Unavailable

TIRE ASSY., RR. (20X10.00-9) (KT577A) (DUNLOP) (NOT AVAILABLE) | Use from Frame SN FC400034

42710-HA2-013

Unavailable

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

BOLT, WHEEL (10X36)

90103-HA2-003

$8.57

NUT, WHEEL CLIP

90304-HA2-003

$5.62

NUT, AXLE (20MM) | Use from Frame SN FC426199 This part replaces 90305-HA0-000.

90305-HA5-670

$19.89

NUT, AXLE (20MM) | Use from Frame SN FC426199

90305-HA5-670

$19.89

NUT, AXLE (20MM) (NOT AVAILABLE) | Use up to Frame SN FC426198

90306-HA2-000

Unavailable

PIN, COTTER (4.0X40)

94201-40400

$1.49
