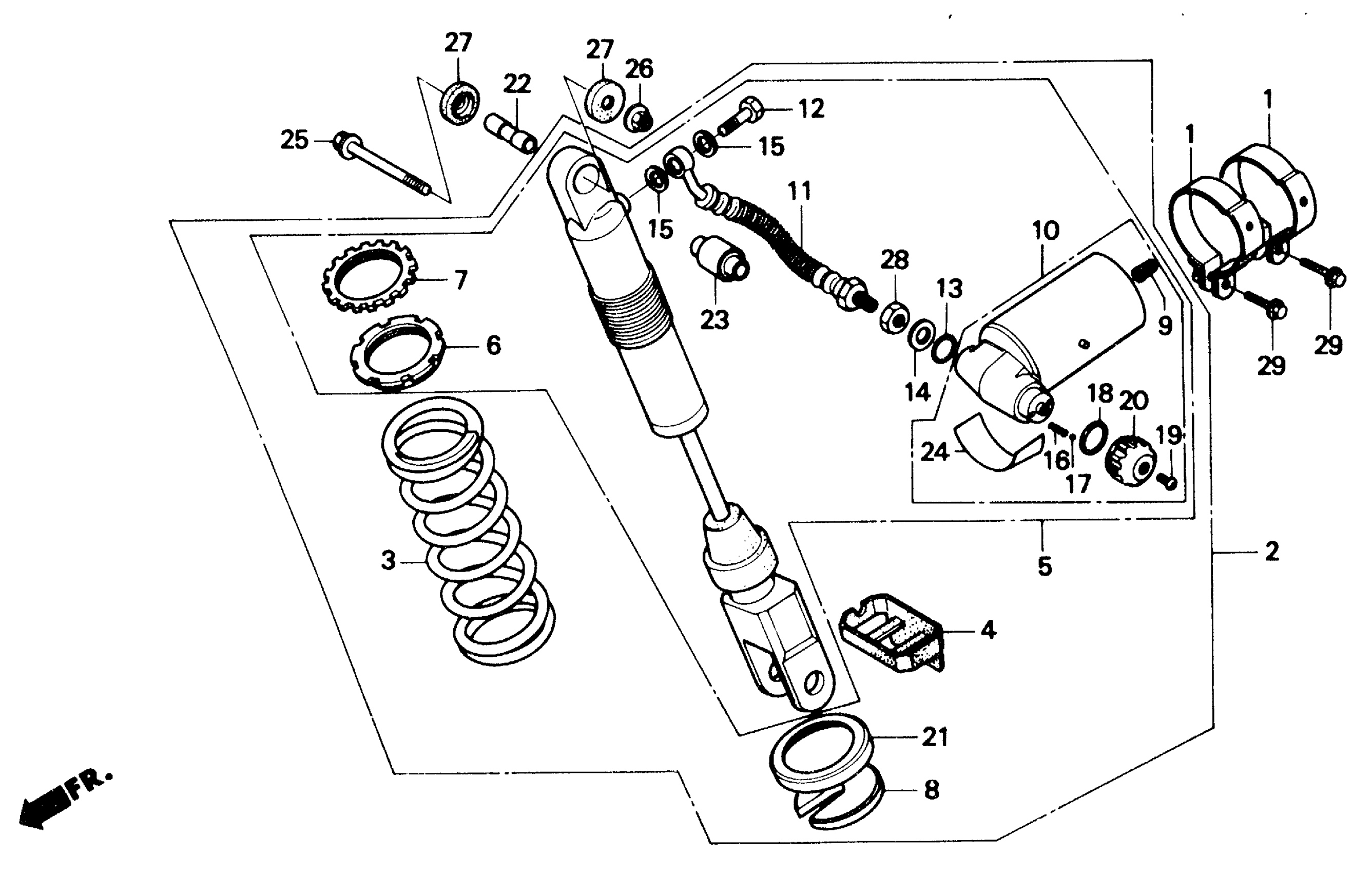

Honda ATC250RA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-FC400019 TO JH3TB060-FC426863 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

BAND, SUB-TANK (NOT AVAILABLE)

50252-HA2-000

Unavailable

2

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN FC400033 This part replaces 52400-HA2-003.

52400-HA2-013

Unavailable

2

SHOCK ABSORBER ASSY., RR.

52400-HA2-013

Unavailable

3

SPRING, RR. SHOCK ABSORBER

52401-HA2-003

Unavailable

4

BOOT, RR. SHOCK ABSORBER (NOT AVAILABLE)

52402-964-671

Unavailable

5

DAMPER, RR. (NOT AVAILABLE) | Use up to Frame SN FC400033 This part replaces 52410-HA2-003.

52410-HA2-671

Unavailable

5

DAMPER, RR. (NOT AVAILABLE) | Use from Frame SN FC400034 This part replaces 52410-HA2-013.

52410-HA2-671

Unavailable

6

ADJUSTER, SPRING

52422-MA0-003

$39.25

7

NUT, ADJUSTER

52423-KA3-711

Unavailable

8

STOPPER, SPRING SEAT

52424-MA0-003

Unavailable

9

CAP, AIR VALVE

52425-381-771

$5.05

10

SUB-TANK (NOT AVAILABLE) | Use up to Frame SN FC400033 This part replaces 52430-HA2-003.

52430-HA2-671

Unavailable

10

SUB-TANK (NOT AVAILABLE) | Use from Frame SN FC400034 This part replaces 52430-HA2-013.

52430-HA2-671

Unavailable

11

HOSE, JOINT (NOT AVAILABLE)

52440-HA2-003

Unavailable

12

BOLT, OIL (10X22)

52441-KA3-711

Unavailable

13

O-RING (9.8X1.9) | Use from Frame SN FC400034

52441-MA0-003

Unavailable

14

WASHER (10MM)

52442-HA2-003

Unavailable

15

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

16

SPRING, CLICK (NOT AVAILABLE)

52445-KA4-731

Unavailable

17

BALL

52446-KF0-003

Unavailable

18

O-RING (2X23.5)

52447-KF0-003

Unavailable

19

SCREW

52448-KF0-003

$2.90

20

PLATE, ADJUSTING (NOT AVAILABLE)

52449-KA4-731

Unavailable

21

SEAT, SPRING

52459-964-003

Unavailable

22

COLLAR, CUSHION PIVOT (NOT AVAILABLE)

52487-HA2-000

Unavailable

23

BUSH, SHOCK ABSORBER (NOT AVAILABLE)

52489-HA2-003

Unavailable

24

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-MA0-003

Unavailable

25

BOLT, FLANGE (10X80) This part replaces 90122-HA2-003.

90101-MN9-000

$12.33

26

NUT, AXLE (10MM)

90304-GA6-003

$2.89

27

SEAL, SHOCK ABSORBER PIVOT

91265-HA2-013

Unavailable

28

NUT, HEX. (12MM)

94002-12000-0S

$2.06

29

BOLT, FLANGE (6X20) | Use up to Frame SN FC400820

96300-06020-00

$1.49

29

BOLT, FLANGE (6X25) | Use from Frame SN FC400821

96300-06025-00

$1.49
