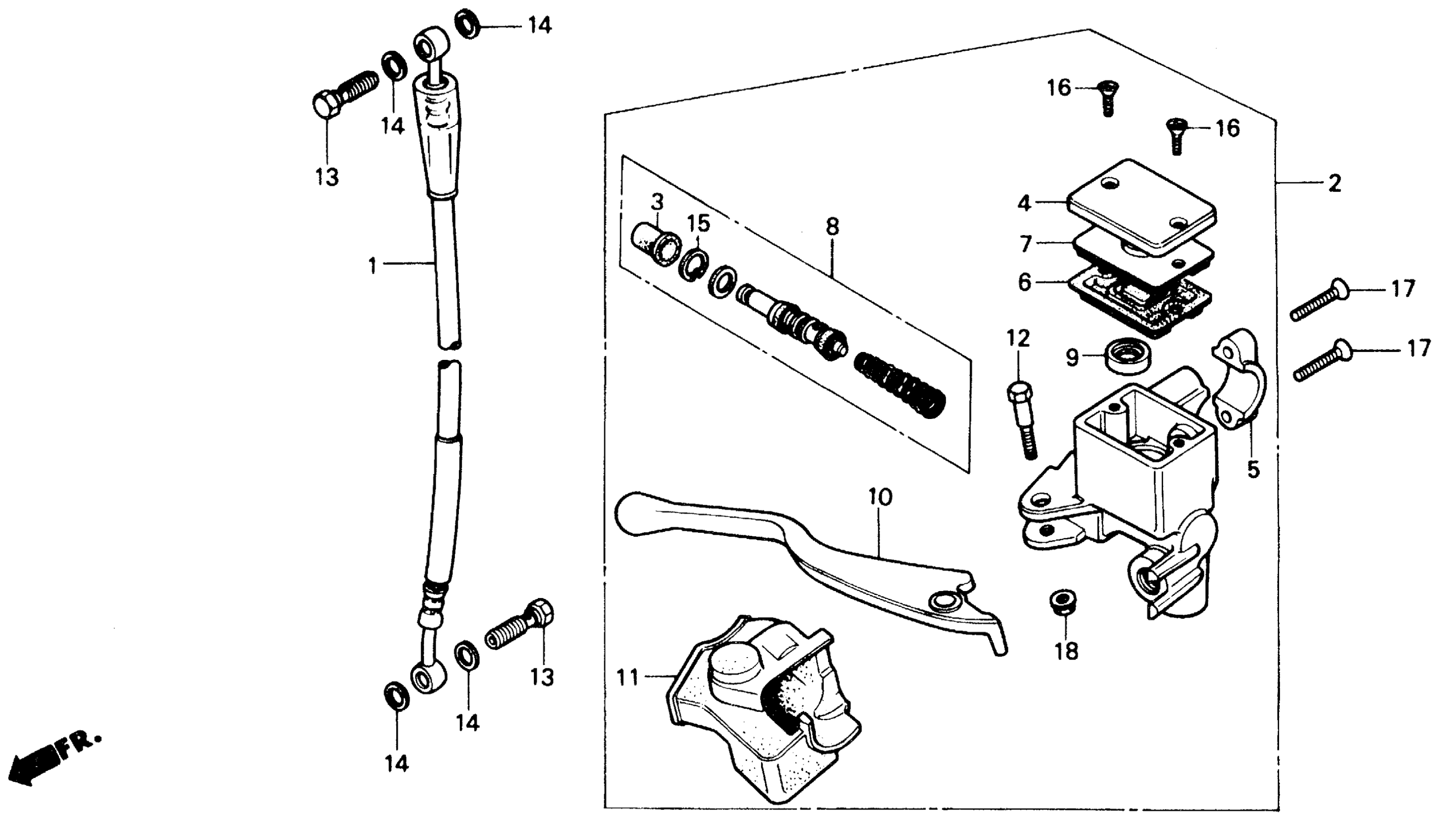

Honda ATC250RA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-FC400019 TO JH3TB060-FC426863 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN FC400872 This part replaces 45126-HA2-003.

45126-HA2-013

Unavailable

HOSE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN FC400873

45126-HA2-013

Unavailable

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-HA2-405)

45500-HA2-006

Unavailable

BOOT

45504-410-003

$12.16

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-471-831

$40.86

SEPARATOR

46666-961-013

$8.68

LEVER, R. HANDLEBAR

53175-HC4-010

$22.79

LEVER, R. HANDLEBAR This part replaces 53175-961-010.

53175-HC4-010

$22.79

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-HA2-006

Unavailable

BOLT, HANDLEBAR PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
