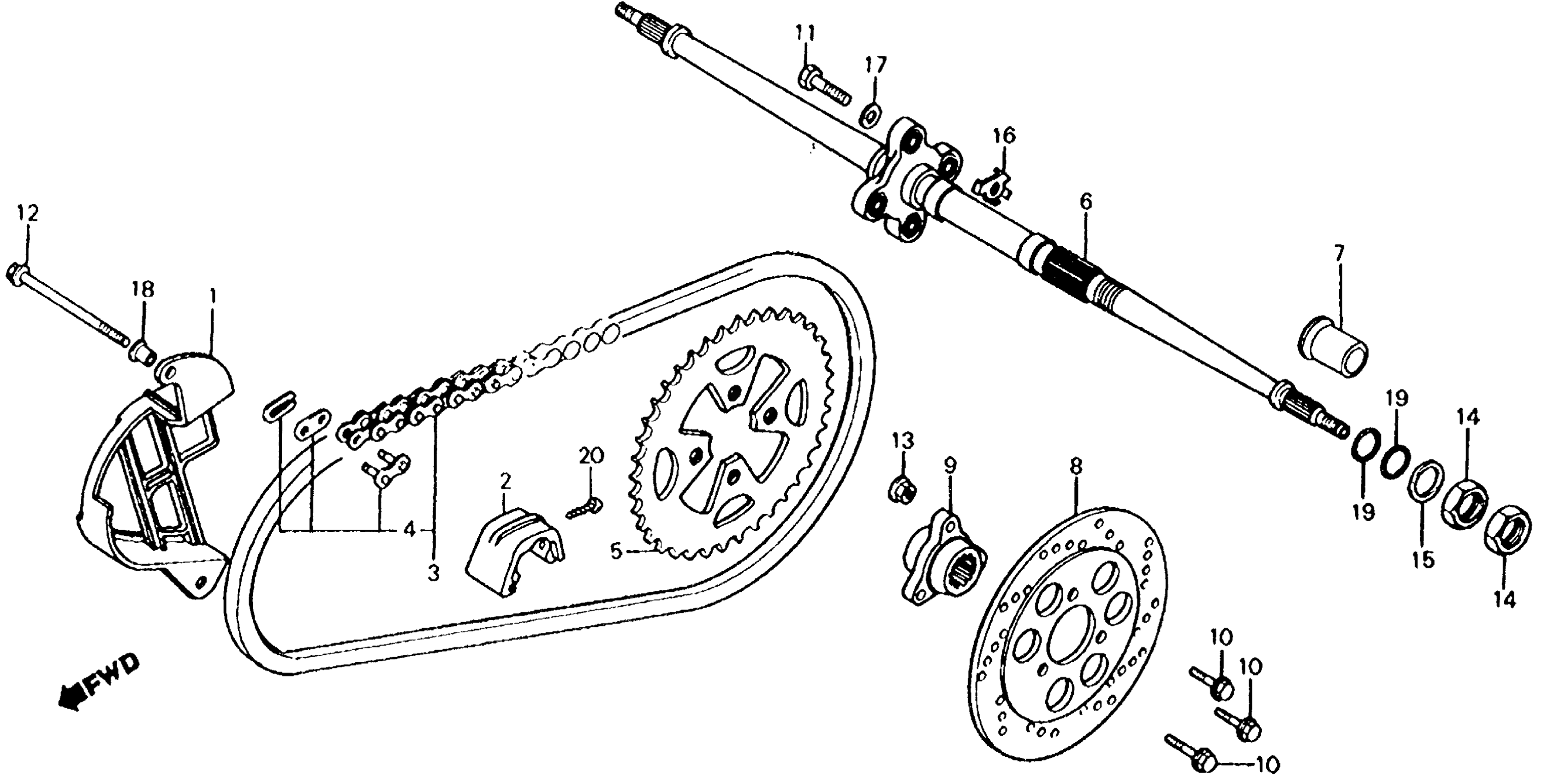

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 REAR WHEEL AXLE + REAR BRAKE DISK 83-84 Diagram

#

Description
Price

1

COVER, DRIVE SPROCKET (NOT AVAILABLE)

23810-964-000

Unavailable

2

GUIDE, DRIVE CHAIN (NOT AVAILABLE)

40513-964-000

Unavailable

3

CHAIN, DRIVE (NOT AVAILABLE)

405W3-HB9-505

Unavailable

3

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-HA5-003.

405W3-HB9-505

Unavailable

3

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-HA5-006.

405W3-HB9-505

Unavailable

3

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-958-013.

405W3-HB9-505

Unavailable

3

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-964-000.

405W3-HB9-505

Unavailable

4

MASTER LINK (DAIDO)

40531-HB5-671

Unavailable

4

MASTER LINK (DAIDO) This part replaces 40531-958-671.

40531-HB5-671

Unavailable

5

SPROCKET This part replaces 41201-964-000.

41201-964-505

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN EC308313 This part replaces 42310-964-670.

42310-964-673

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN EC308314 to EC308505 This part replaces 42310-964-671.

42310-964-672

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN EC308314

42310-964-672

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN EC308313

42310-964-673

Unavailable

7

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE) | Use from Frame SN EC308314

42622-964-670

Unavailable

8

DISK, BRAKE (NOT AVAILABLE)

43122-965-000

Unavailable

9

FLANGE, BRAKE DISK (NOT AVAILABLE)

43125-964-000

Unavailable

10

BOLT, UBS (8X18)

90112-HE0-000

Unavailable

10

BOLT, UBS (8X18) This part replaces 90112-961-000.

90112-HE0-000

Unavailable

10

BOLT, UBS (8X18) This part replaces 90112-961-003.

90112-HE0-000

Unavailable

11

BOLT, SPROCKET FIXING

90114-964-000

Unavailable

12

BOLT, FLANGE (6X85)

90135-964-000

$4.93

13

NUT, LOCK (12MM)

90305-964-000

Unavailable

14

NUT, RR. AXLE | Use up to Frame SN EC308313

90307-961-000

Unavailable

14

NUT, RR. AXLE | Use from Frame SN EC308314

90307-964-670

Unavailable

15

WASHER, TAPER | Use up to Frame SN EC308313

90481-HC4-000

$7.70

15

WASHER, TAPER | Use up to Frame SN EC308313 This part replaces 90481-958-000.

90481-HC4-000

$7.70

15

WASHER (33MM) | Use from Frame SN EC308314

90481-964-670

Unavailable

16

WASHER, TONGUED (12MM) (NOT AVAILABLE)

90482-964-000

Unavailable

17

WASHER (12X27) (NOT AVAILABLE)

90502-964-000

Unavailable

18

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

19

O-RING (32.5X1.8) (ARAI)

91316-PY4-003

$3.39

19

O-RING (32.5X1.8) This part replaces 91355-943-000.

91316-PY4-003

$3.39

20

SCREW, TAPPING (4X16)

93904-34420

Unavailable
