- ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489
REAR SHOCK ABSORBER 83-84

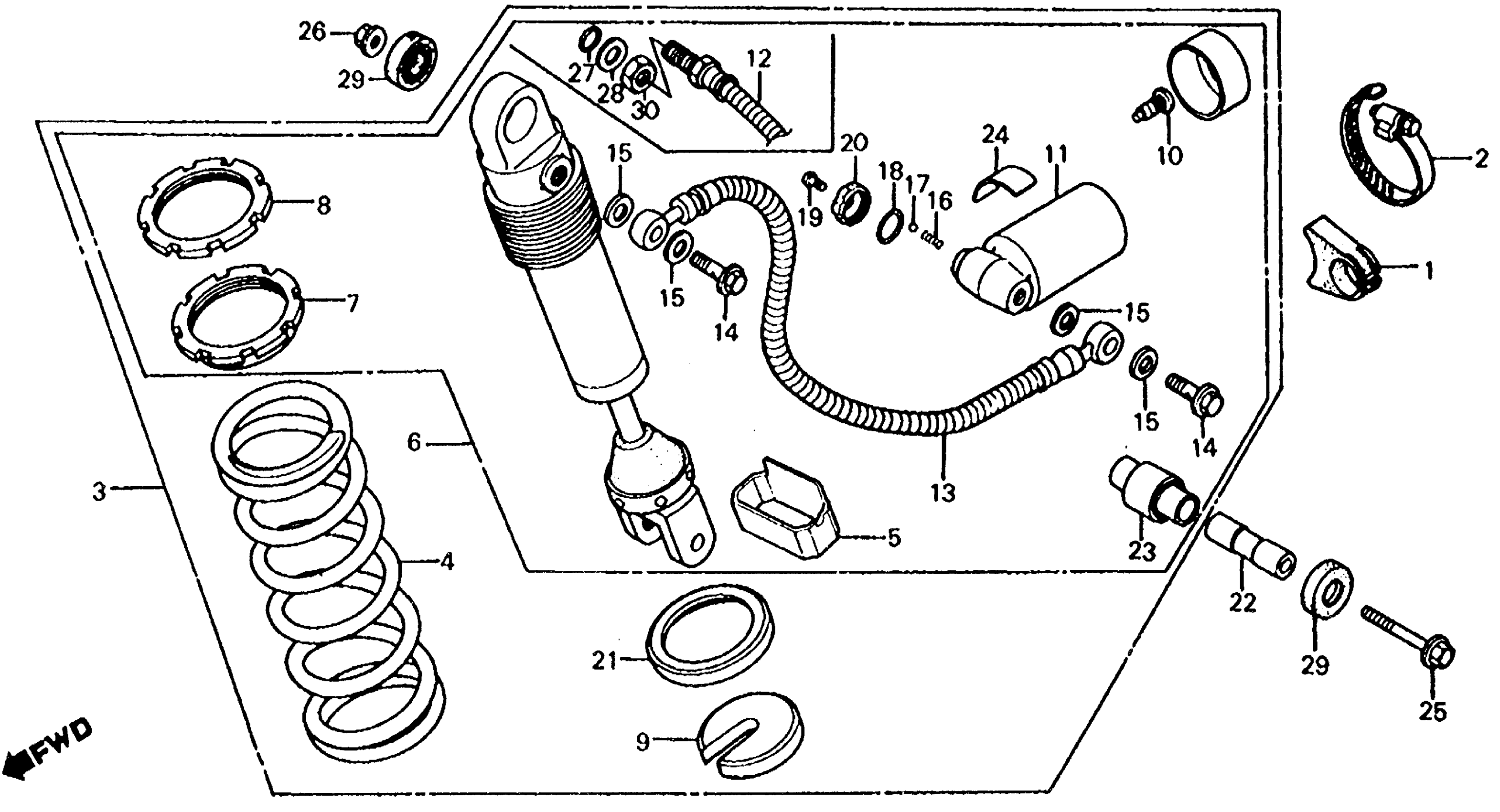

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 REAR SHOCK ABSORBER 83-84 Diagram
#
Description
Price
1
RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)
50250-964-010
Unavailable
2
BAND, SUB-TANK (NOT AVAILABLE)
50252-964-000
Unavailable
3
SHOCK ABSORBER ASSY., RR.
52400-964-671
Unavailable
4
SPRING, RR. SHOCK ABSORBER
52401-964-671
Unavailable
5
BOOT, RR. SHOCK ABSORBER (NOT AVAILABLE)
52402-964-671
Unavailable
6
DAMPER, RR. (NOT AVAILABLE)
52410-964-671
Unavailable
8
NUT, ADJUSTER
52423-KA3-711
Unavailable
9
STOPPER, SPRING SEAT
52424-MA0-003
Unavailable
11
SUB-TANK (NOT AVAILABLE)
52430-964-671
Unavailable
13
HOSE, JOINT (SHOWA) (NOT AVAILABLE)
52440-964-671
Unavailable
14
BOLT, OIL (10X22)
52441-KA3-711
Unavailable
16
SPRING, CLICK (NOT AVAILABLE)
52445-KF0-003
Unavailable
17
BALL (NOT AVAILABLE)
52446-KF0-003
Unavailable
18
O-RING (2X23.5)
52447-KF0-003
Unavailable
20
PLATE, ADJUSTING
52449-964-003
Unavailable
21
SEAT, SPRING
52459-964-003
Unavailable
22
COLLAR, RR. SHOCK ABSORBER PIVOT (NOT AVAILABLE)
52487-964-003
Unavailable
23
BUSH, RR. SHOCK ABSORBER JOINT (NOT AVAILABLE)
52489-964-003
Unavailable
24
LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)
87516-MA0-003
Unavailable
25
BOLT, FLANGE (10X78) This part replaces 90122-964-000.
90155-KC1-000
Unavailable
25
BOLT, FLANGE (10X78)
90155-KC1-000
Unavailable
