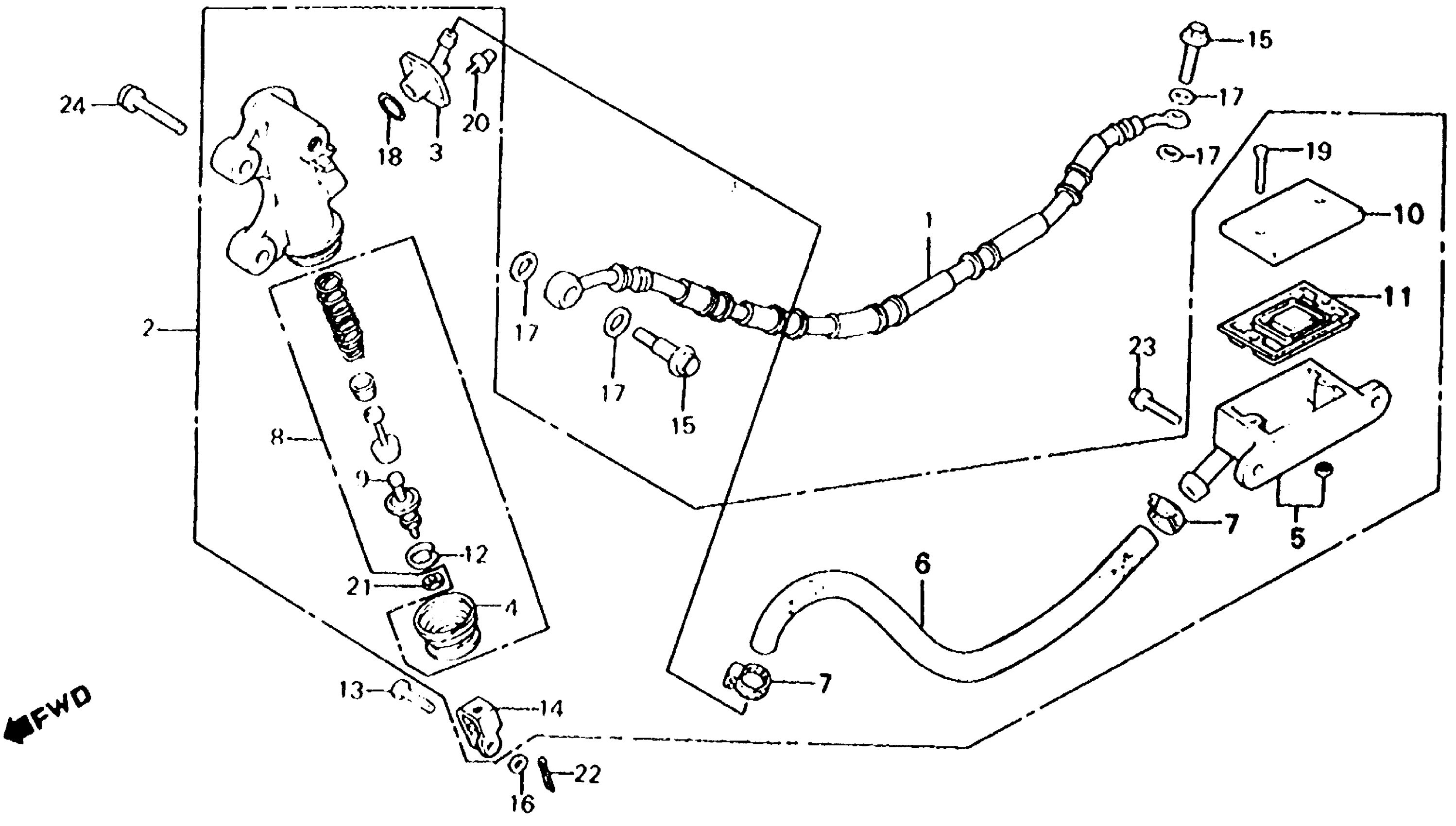

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 REAR BRAKE MASTER CYLINDER 83-84 Diagram

#

Description
Price

1

HOSE ASSY., RR. BRAKE (NOT AVAILABLE) This part replaces 43310-964-003.

43310-964-013

Unavailable

1

HOSE ASSY., RR. BRAKE (NOT AVAILABLE)

43310-964-013

Unavailable

2

M/CYL ASSY., RR. This part replaces 43500-964-016.

43510-964-P00

Unavailable

3

CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)

43503-964-006

Unavailable

4

BOOT, MASTER CYLINDER

43504-371-013

$9.54

5

CUP, OIL

43511-965-006

Unavailable

6

HOSE, MASTER CYLINDER OIL (NOT AVAILABLE)

43512-964-016

Unavailable

7

CLAMP, MASTER CYLINDER OIL HOSE | Use up to Frame SN EC310179

43514-445-771

$12.27

7

CLAMP, MASTER CYLINDER OIL HOSE | Use from Frame SN EC310180

43514-964-006

$17.93

8

PISTON SET, MASTER CYLINDER

43520-965-305

Unavailable

9

ROD, PUSH (NISSHIN)

43530-964-006

Unavailable

10

CAP, MASTER CYLINDER

45513-GE2-681

Unavailable

11

DIAPHRAGM

45520-GE2-006

$9.58

11

DIAPHRAGM

45520-MG7-006

$10.61

12

CIRCLIP

46182-500-013

$4.90

13

PIN, BRAKE ROD

46503-371-000

Unavailable

14

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

15

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

15

BOLT, OIL

90145-300-010

$9.68

15

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

16

WASHER (7X12)

90501-310-000

$1.74

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

O-RING (14.8X2.4)

91212-422-006

$2.56

19

SCREW, FLAT (4X30)

93600-04030-1A

$1.49

20

SCREW-WASHER (4X12)

93893-04012-08

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

22

PIN, COTTER (1.6X25)

94201-16250

$1.49

23

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

24

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

24

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
