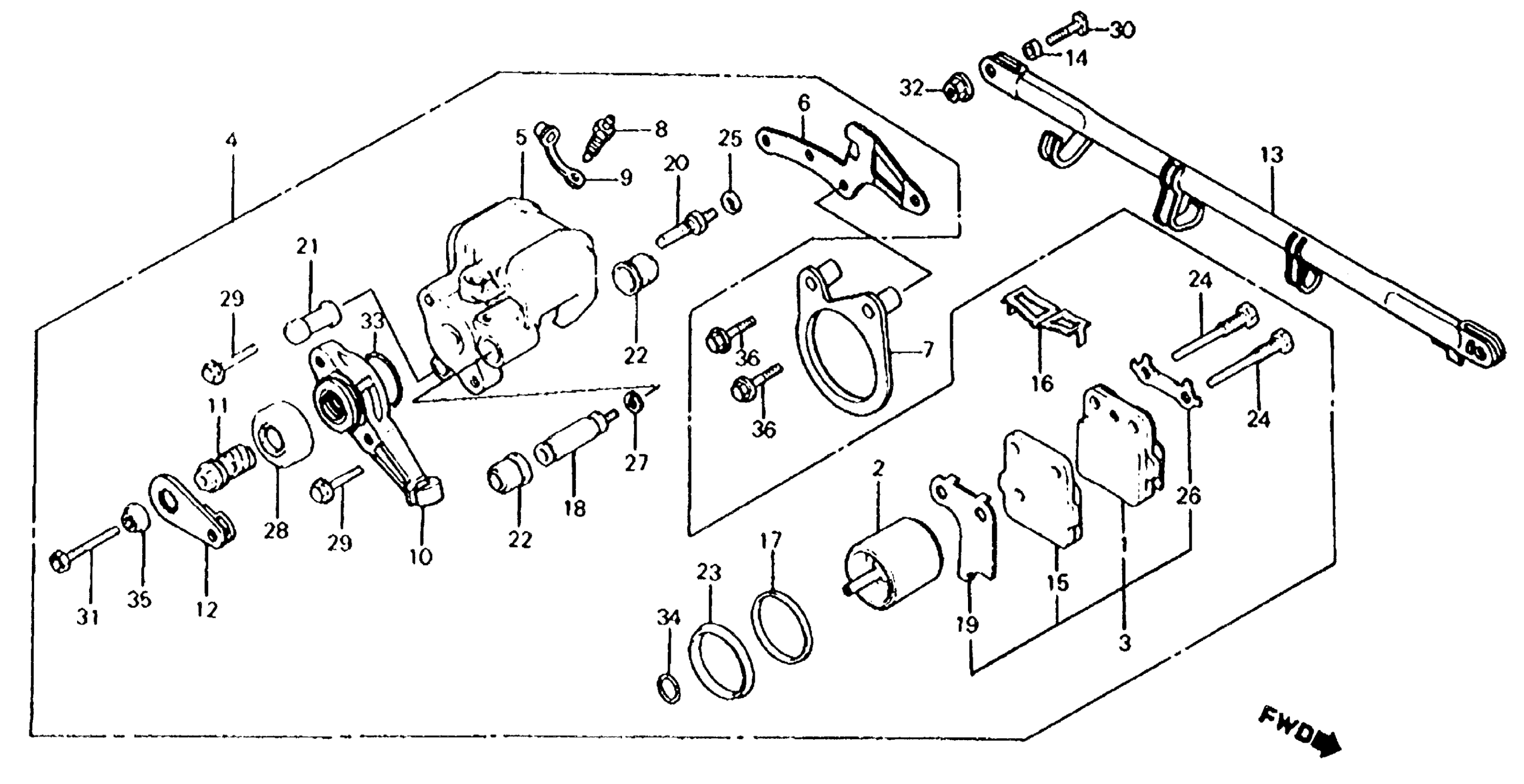

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 REAR BRAKE CALIPER 83-84 Diagram

#

Description
Price

NI

PAD SET, RR. (NISSIN) This part replaces 431A0-965-000.

43120-HA5-305

$43.85

NI

PAD SET, RR. (NISSIN)

43120-HA5-305

$43.85

NI

PAD SET, RR. (NISSIN) This part replaces 43120-965-000.

43120-HA5-305

$43.85

1

PAD, RR. (NOT AVAILABLE)

43106-961-006

Unavailable

2

PISTON (NISSIN)

43109-HC0-681

$115.97

2

PISTON (NISSIN) This part replaces 43109-961-006.

43109-HC0-681

$115.97

3

PAD SET, RR. (NISSIN)

43120-HA5-305

$43.85

3

PAD SET, RR. (NISSIN) This part replaces 43120-965-000.

43120-HA5-305

$43.85

4

CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE)

43200-964-006

Unavailable

5

CALIPER, RR. (NOT AVAILABLE)

43201-964-006

Unavailable

6

BRACKET, RR. (NOT AVAILABLE)

43210-964-006

Unavailable

7

STAY, RR. CALIPER (NOT AVAILABLE)

43211-964-000

Unavailable

8

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

BRAKE, PARKING (NOT AVAILABLE)

43360-965-006

Unavailable

11

SHAFT, R.

43361-965-006

Unavailable

12

ARM

43362-965-006

Unavailable

13

LINK, TORQUE (NOT AVAILABLE)

43431-964-000

Unavailable

14

BUSH, TORQUE LINK (NOT AVAILABLE)

43482-964-000

Unavailable

15

PAD (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-961-006

Unavailable

16

SPRING, PAD

45108-166-006

$7.46

17

DUST SEAL

45109-961-006

$5.08

18

PIN, SLIDE

45115-166-006

$17.27

19

SHIM

45116-GE3-601

$5.92

20

BOLT, PIN

45131-166-016

$7.63

21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

22

BOOT, PIN

45133-166-016

$3.85

23

SEAL, PISTON

45209-961-006

$6.20

24

PIN, HANGER

45215-166-006

$13.51

25

WASHER, WAVE

45216-166-006

$2.34

26

WASHER, TONGUED

45217-166-006

$5.33

27

WASHER, CONICAL SPRING

45218-166-006

$3.78

28

DUST SEAL, MASTER CYLINDER

46184-611-000

$10.61

28

DUST SEAL, MASTER CYLINDER This part replaces 46184-611-010.

46184-611-000

$10.61

29

BOLT (8X25)

90116-410-006

$6.07

30

BOLT, TORQUE LINK

90116-964-000

Unavailable

31

BOLT (8X40)

90126-961-006

$5.16

32

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

33

O-RING (31)

91357-964-006

$4.31

34

O-RING (P8)

91358-964-006

$2.39

35

NUT-WASHER (8MM)

94071-08080

$1.49

36

BOLT, FLANGE (8X32) This part replaces 95800-08032-00.

95801-08032-00

$2.07

36

BOLT, FLANGE (8X32)

95801-08032-00

$2.07
