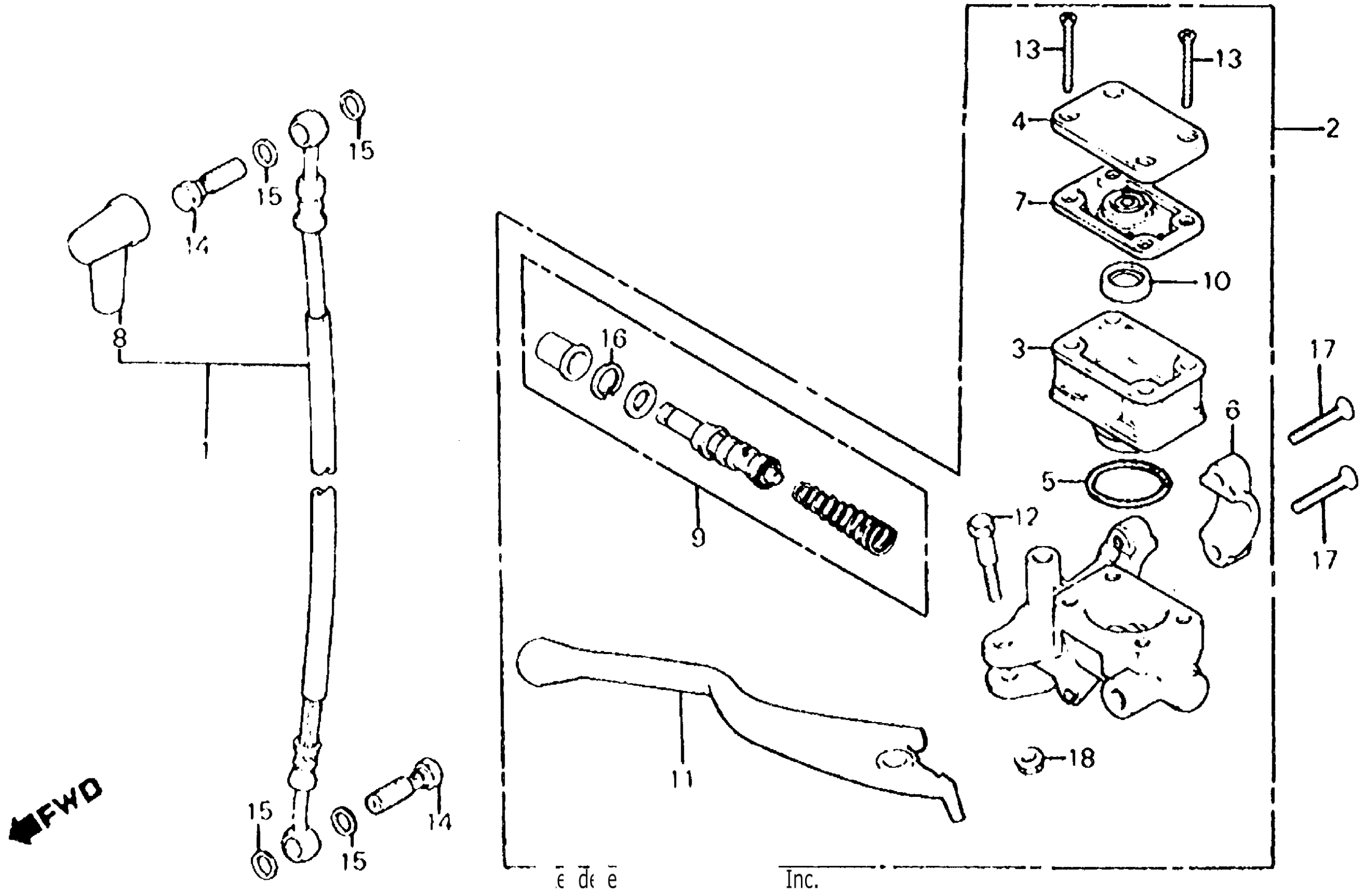

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 FRONT BRAKE MASTER CYLINDER Diagram

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-964-013.

45126-964-023

Unavailable

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-964-023

Unavailable

MASTER CYLINDER ASSY., FR. BRAKE (N/A: USE COMPONENT PARTS)

45500-965-013

Unavailable

CUP, OIL

45511-166-006

Unavailable

CAP, OIL CUP

45513-166-611

Unavailable

O-RING (26.7X2.4)

45516-166-006

$6.81

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

DIAPHRAGM

45520-166-016

Unavailable

BOOT, MASTER CYLINDER (NOT AVAILABLE)

45522-965-000

Unavailable

MASTER CYLINDER SET

45530-166-305

Unavailable

SEPARATOR

46666-961-013

$8.68

LEVER, R. HANDLEBAR

53175-HC4-010

$22.79

LEVER, R. HANDLEBAR This part replaces 53175-961-010.

53175-HC4-010

$22.79

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

SCREW, CAP (4X35)

90137-422-006

$3.30

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
