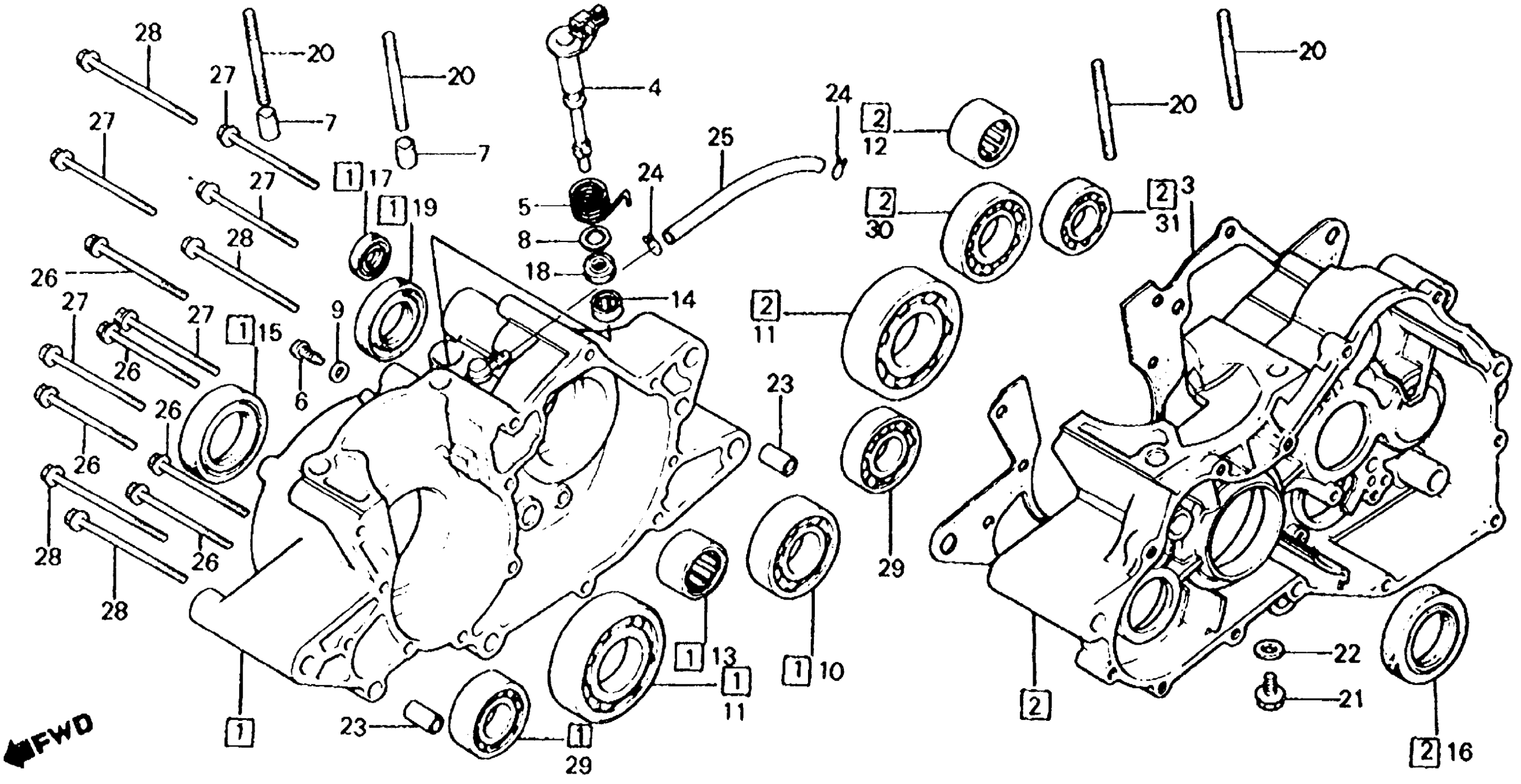

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY., R. (NOT AVAILABLE)

11001-964-000

Unavailable

2

CRANKCASE ASSY., L. (NOT AVAILABLE)

11002-964-000

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-961-000.

11191-961-306

Unavailable

4

LIFTER, CLUTCH (NOT AVAILABLE)

22810-430-010

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-961-000

Unavailable

6

BOLT, SPECIAL (6MM)

90035-360-000

Unavailable

7

PIN, DOWEL (12X16)

90036-357-000

$3.69

8

WASHER, THRUST (16MM) (NOT AVAILABLE)

90451-122-000

Unavailable

9

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

10

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

10

BEARING, RADIAL BALL (63/22) This part replaces 91001-360-004.

91002-KY4-901

$24.38

10

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

10

BEARING, RADIAL BALL (63/22) This part replaces 91003-358-004.

91002-KY4-901

$24.38

11

BEARING, RADIAL BALL (63/28) This part replaces 91003-961-008.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

12

BEARING, NEEDLE (25X32X20)

91010-300-008

Unavailable

13

BEARING, NEEDLE (20X33X15) (TOYO) (NOT AVAILABLE) This part replaces 91020-430-004.

91020-430-008

$16.43

13

BEARING, NEEDLE (20X33X15) (TOYO) (NOT AVAILABLE)

91020-430-008

$16.43

14

BEARING, NEEDLE (16MM) (NOT AVAILABLE)

91031-329-000

Unavailable

15

OIL SEAL (28X50X8)

91202-HA2-771

$15.06

15

OIL SEAL (28X50X8) This part replaces 91202-430-003.

91202-HA2-771

$15.06

15

OIL SEAL (28X50X8) This part replaces 91202-430-005.

91202-HA2-771

$15.06

16

OIL SEAL (38X62X10) This part replaces 91203-430-003.

91203-430-005

Unavailable

16

OIL SEAL (38X62X10)

91203-430-005

Unavailable

17

OIL SEAL (18X29X7)

91204-286-003

$4.31

17

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

18

DUST SEAL (16X22X3.2) This part replaces 91206-329-000.

91251-964-000

$6.19

18

DUST SEAL (16X22X3.2) This part replaces 91206-329-154.

91251-964-000

$6.19

18

DUST SEAL (16X22X3.2)

91251-964-000

$6.19

19

OIL SEAL (28X40X8) (NOK)

91207-ML3-003

$14.08

19

OIL SEAL (28X40X8) (NOK) This part replaces 91207-ML3-004.

91207-ML3-003

$14.08

19

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-003.

91207-ML3-003

$14.08

19

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-005.

91207-ML3-003

$14.08

20

BOLT 2, STUD (10X45) This part replaces 92700-10070-3B.

92900-10045-3B

$2.15

20

BOLT 2, STUD (10X45)

92900-10045-3B

$2.15

21

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

23

PIN, DOWEL (10X16)

94301-10160

$2.28

24

CLIP, TUBE (B8)

95002-02080

$1.80

25

BULK HOSE, VINYL (6X9X1000) (6X9X130)

95003-14001-10M

$3.30

26

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

26

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

27

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

27

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

28

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

28

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

28

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

28

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

29

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

30

BEARING, RADIAL BALL (6205)

96120-62050-00

Unavailable

31

BEARING, RADIAL BALL (6203)

96140-62033-00

Unavailable
