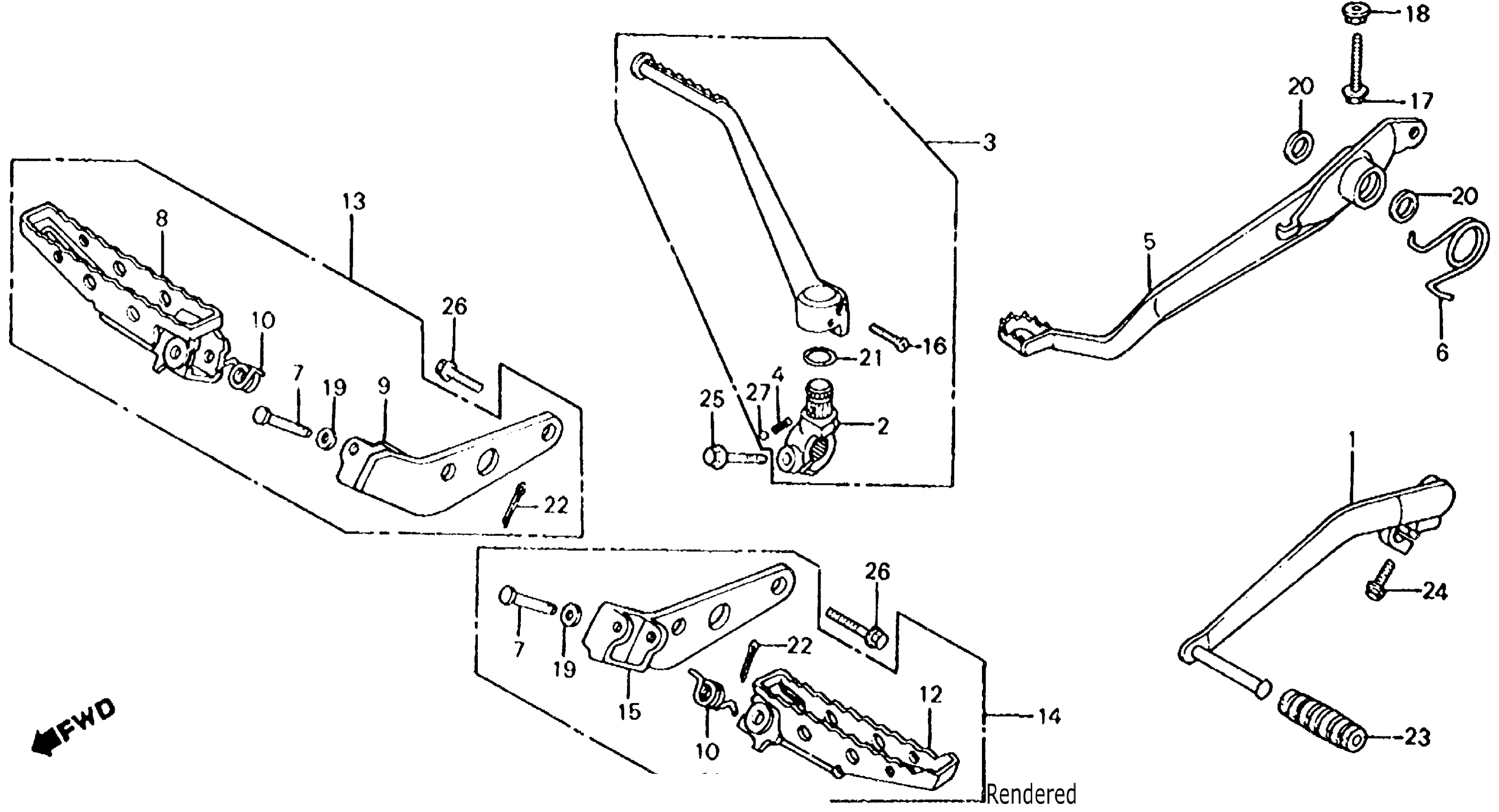

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 BRAKE PEDAL + GEARSHIFT PEDAL + FOOTPEG 83-84 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-964-000

Unavailable

2

JOINT, KICK ARM

28241-964-000

Unavailable

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-964-000

Unavailable

4

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

5

PEDAL, BRAKE (NOT AVAILABLE)

46500-964-000

Unavailable

6

SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE)

46514-964-000

Unavailable

7

PIN, STEP JOINT (NOT AVAILABLE) This part replaces 50603-964-670.

50603-HA0-680

Unavailable

8

STEP, R. (NOT AVAILABLE) This part replaces 50610-964-670.

50610-HA0-770

Unavailable

9

PLATE, R. FOOTPEG

50616-964-670

Unavailable

10

SPRING, R. STEP RETURN

50617-HA0-680

Unavailable

10

SPRING, R. STEP RETURN This part replaces 50617-964-000.

50617-HA0-680

Unavailable

11

SPRING, L. STEP RETURN

50618-HA0-680

Unavailable

11

SPRING, L. STEP RETURN This part replaces 50618-964-000.

50618-HA0-680

Unavailable

12

STEP, L. (NOT AVAILABLE) This part replaces 50620-964-670.

50620-HA0-770

Unavailable

13

ARM ASSY., R. FOOTPEG

50630-964-670

Unavailable

14

ARM ASSY., L. FOOTPEG

50640-964-670

Unavailable

15

PLATE, L. FOOTPEG

50642-964-670

Unavailable

16

BOLT, KICK ARM

90101-329-000

$3.67

17

BOLT, FLANGE (6X35)

90115-KB8-000

Unavailable

18

NUT, U (6MM) This part replaces 90301-MC7-003.

90301-473-003

$4.07

18

NUT, U (6MM)

90301-473-003

$4.07

18

NUT, U (6MM) This part replaces 90301-473-013.

90301-473-003

$4.07

19

WASHER, THRUST (8MM)

90450-147-000

$1.80

20

DUST SEAL (16X22X3.2)

91251-964-000

$6.19

21

O-RING (14MM) (ARAI)

91353-671-003

$2.73

22

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

22

PIN, COTTER (1.6X25)

94201-16250

$1.49

23

RUBBER, CHANGE PEDAL

95011-40000

$1.49

24

BOLT, FLANGE (6X20)

90118-968-000

$4.24

25

BOLT, FLANGE (8X25) This part replaces 95700-08025.

95701-08025-00

$1.79

25

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

25

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

25

BOLT, FLANGE (8X25) This part replaces 95900-08025-00.

95701-08025-00

$1.79

26

BOLT, FLANGE (10X25) This part replaces 95700-10025-00.

95701-10025-00

$2.19

26

BOLT, FLANGE (10X25)

95701-10025-00

$2.19

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
